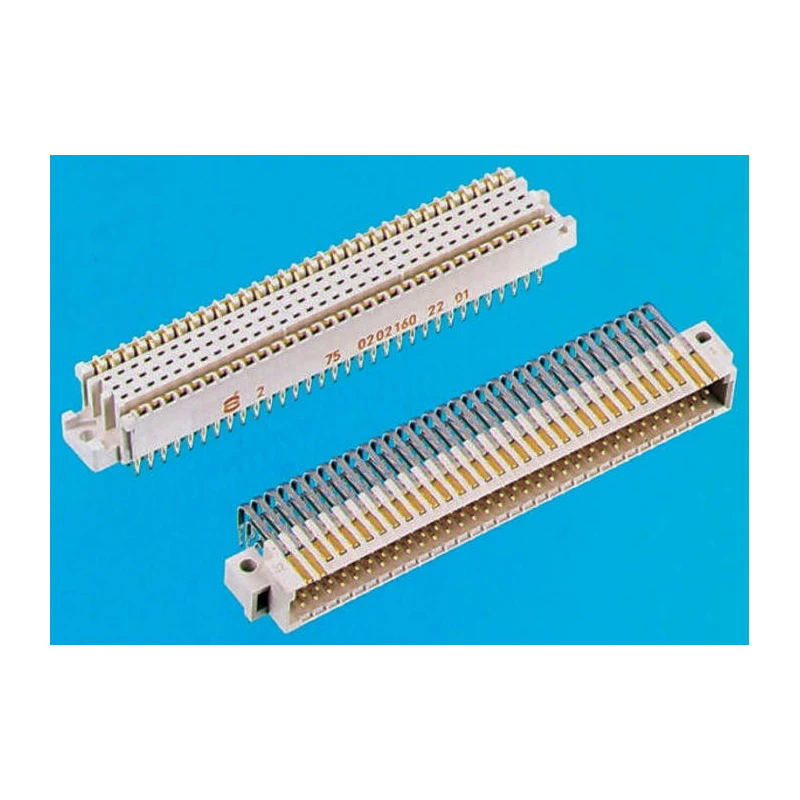

HARTING DIN 41612 Connector har-bus 64 160 Way 2.54 mm Pitch Through Hole Press-in Termination Class C1 5 Row 02021601201

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 Connector har-bus 64 160 Way 2.54 mm Pitch Through Hole Press-in Termination Class C1 5 Row 02021601201

Name: HARTING DIN 41612 Connector har-bus 64 160 Way 2.54 mm Pitch Through Hole Press-in Termination Class C1 5 Row 02021601201
Brand: HARTING
SKU: 117855
Price: 34.14 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	har-bus 64
Termination Type	Press-in
Maximum Operating Temperature	125°C
Sub Type	har-bus 64
Minimum Operating Temperature	-55°C
Number of Rows	5
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	160
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	30mΩ
Row Loading	D, A, C, Z, B

Key Features

The connector features 160 contacts arranged in 5 rows with a 2.54 mm pitch.
Press-in termination ensures secure and reliable contact insertion.
Constructed with copper alloy contacts plated with gold over nickel for excellent conductivity.
Housing is made of durable liquid crystal polymer suitable for industrial environments.
Operates reliably between -55°C and 125°C, suitable for harsh conditions.
Compatible with DIN 41612 and har-bus 64 series systems supporting data rates from 160MB to 220MB.
Designed for through hole mounting with a female connector gender and straight orientation.
Offers maximum contact resistance of 30 milliohms ensuring signal integrity.

Product Description

HARTING 02021601201 DIN 41612 Connector har-bus 64 160 Way 2.54 mm Pitch Through Hole Press-in Termination Class C1 5 Row is engineered for high-speed backplane and rack connector applications in industrial, telecommunications, and computing environments. Its 160 copper alloy contacts plated with gold over nickel provide excellent electrical performance and corrosion resistance.

The connector housing made from liquid crystal polymer delivers mechanical strength and stability under thermal cycling between -55°C and 125°C, ensuring durability in harsh industrial conditions. The press-in termination type and through-hole mount simplify assembly and maintenance.

Designed in compliance with IEC 61076-4-113 standards and fully compatible with established DIN 41612 Type C connectors, this product supports retrofitting older systems while enhancing signal integrity and pin count for improved data transfer speeds up to 220MB.

This series is widely used in electronic control systems, industrial automation equipment, and telecommunications backplanes, providing a robust and reliable interconnection solution for demanding applications.

The connector features 160 contacts arranged across 5 rows with a 2.54 mm pitch for precise connections. Gold over nickel plating reduces oxidation and ensures long-lasting conductivity. Press-fit sockets in Class C1 aid rapid assembly without soldering, reducing manufacturing time.

Suitable for operating temperatures from -55°C to 125°C, ideal for industrial environments. Its robust liquid crystal polymer housing resists chemicals, moisture, and mechanical stress.

This product is manufactured in Germany and provided in new condition, meeting rigorous quality standards. It is ideal for use in industrial electronics, laboratory instrumentation, and manufacturing control racks.
