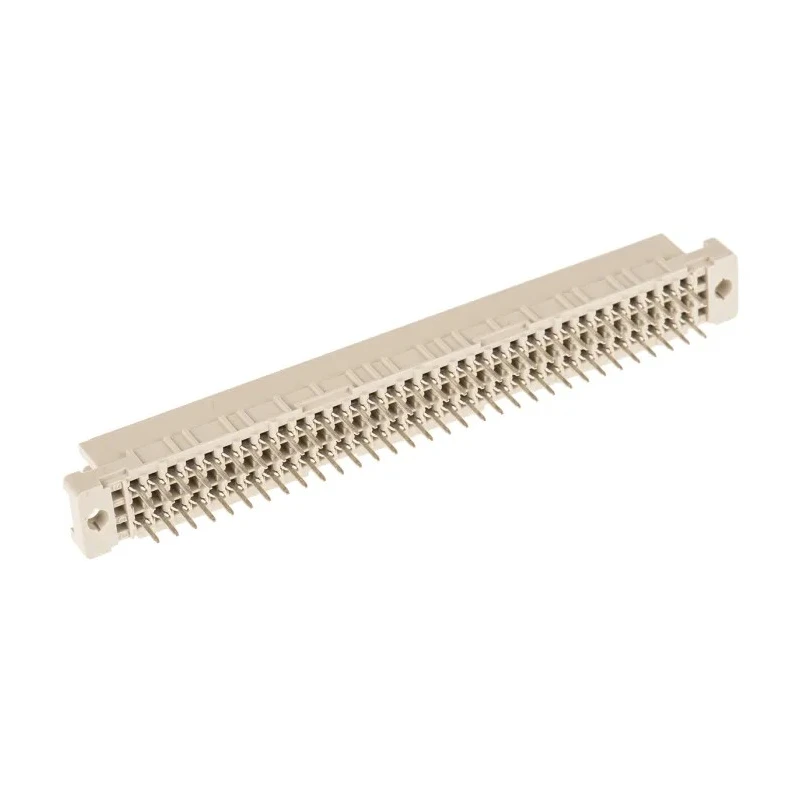

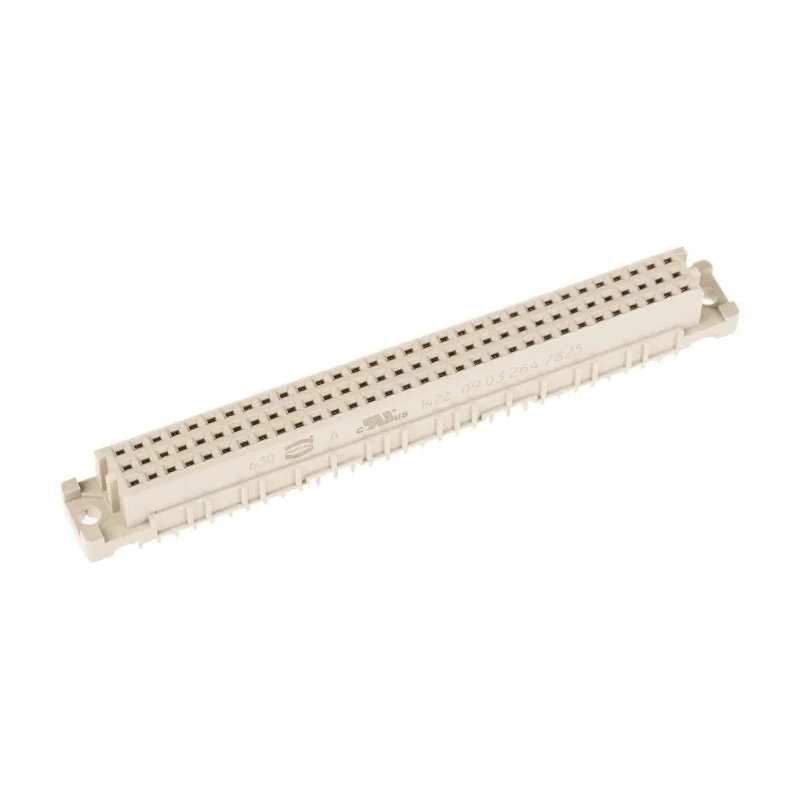

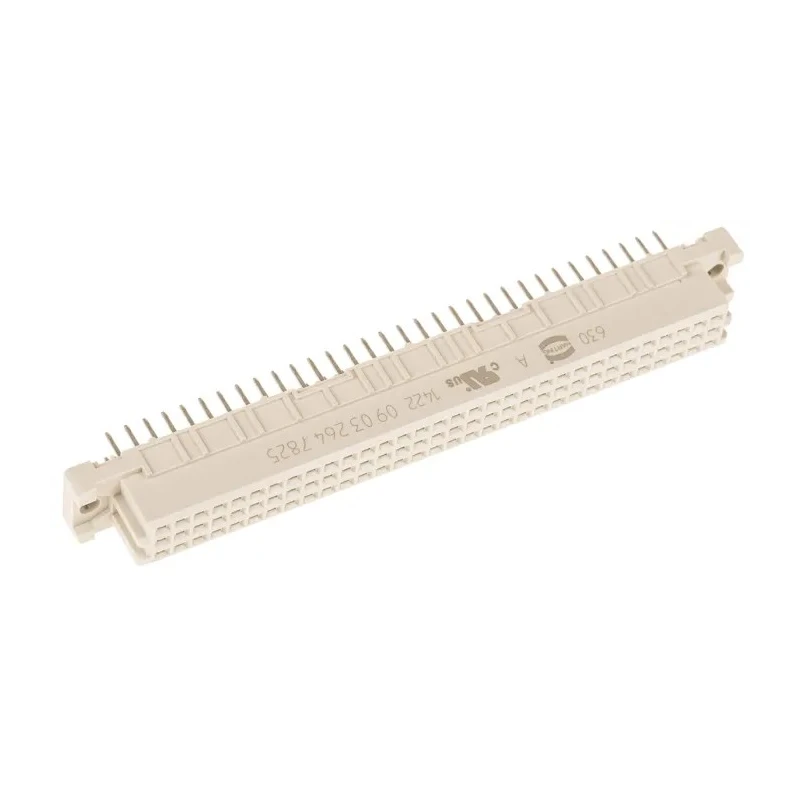

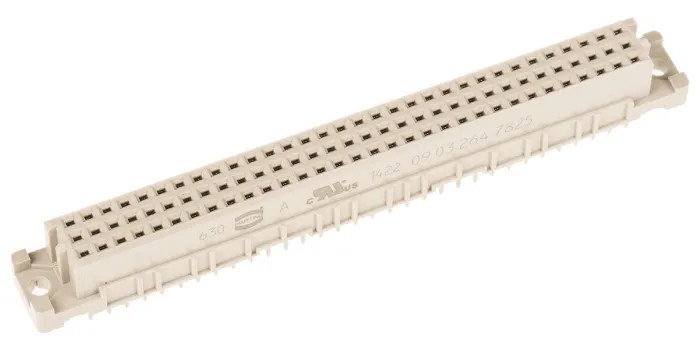

HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole, Type C/3 Solder Class C3 3 Row Female Straight 09032647825

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole, Type C/3 Solder Class C3 3 Row Female Straight 09032647825

Name: HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole, Type C/3 Solder Class C3 3 Row Female Straight 09032647825
Brand: HARTING
SKU: 117852
Price: 4.53 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/3
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	64
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C

Key Features

Designed for economical and durable PCB backplane signal connection.
Gold over nickel plated copper alloy contacts for excellent conductivity.
Operates reliably in temperatures from -55°C to 125°C.
Maximum contact resistance is 20 milliohms for optimal signal integrity.
Polybutylene terephthalate housing material ensures mechanical robustness and durability.
Compatible with all 19-inch Eurocard racking systems.
Through hole mounting with solder termination provides secure and stable installation.
Suitable for electronic, industrial, and communication equipment requiring reliable DIN 41612 connectors.

Product Description

HARTING 09032647825 DIN 41612 Connector is a high-quality 64-way, 2.54 mm pitch, type through hole connector designed to provide reliable backplane signal connections in electronic and industrial applications. Featuring a solder termination type and classified as type C/3 with solder class C3, this connector has a 3 row female straight configuration, making it suitable for robust PCB interconnections.

The connector uses copper alloy contacts plated with gold over nickel which ensures excellent electrical conductivity and low contact resistance capped at 20 milliohms. The housing is made from polybutylene terephthalate, a thermoplastic resin reinforced with glass fibre, offering high durability and mechanical stability.

Operational temperature range spans from -55°C to +125°C, making it suitable for harsh industrial and electronic environments. Designed for easy integration with through hole mounting on PCBs, this connector is compatible with all 19in Eurocard racking systems used in a wide range of electronic equipment, communication hardware, and industrial automation systems.

This model meets demanding operational and environmental requirements while offering a cost-effective connection solution. The connector’s design allows first mating at positions a1 and a31 for consistent signal integrity. Though it does not carry specific standards or approvals, it is widely used for reliable backplane and rack connections.

Designed for use in industrial, electronic, communication, and manufacturing equipment. Features gold over nickel contact plating for corrosion resistance and reliable conductivity. Operates in wide temperature conditions from -55 to 125 degrees Celsius.

Constructed with durable polybutylene terephthalate housing for mechanical strength. Through hole solder termination for secure mounting and connection. Compact 2.54 mm pitch and 3 row layout allows high-density wiring. Supports 64 contacts suitable for complex signal interfacing.

Compatible with DIN 41612 standard Eurocard racks and backplane systems. Explore more high-performance connectors in the DIN 41612 category for industrial and electronic applications on EnvMart.
