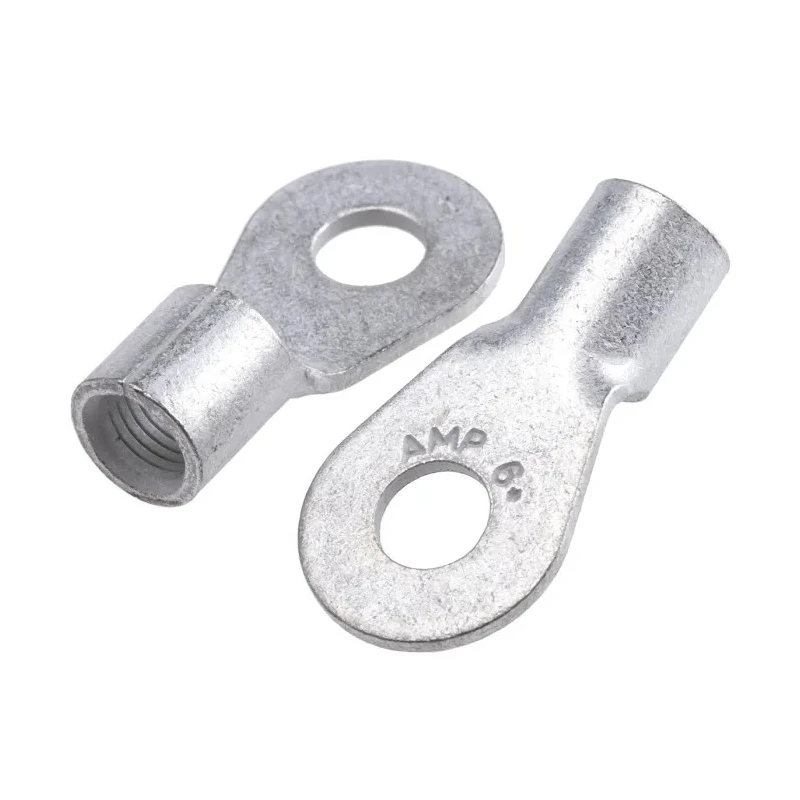

TE Connectivity Solistrand Uninsulated Crimp Ring Terminal M6 Stud Size 6 AWG Wire Size 33465
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 1.45mm |
| Model | 33465 |
| Insulation | Uninsulated |
| Overall Length | 31.65mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 10.5mm² |
| Maximum Wire Size mm² | 16.8mm² |
| Minimum Wire Size AWG | 6AWG |
| Outer Ring Diameter | 15.88mm |
| Inner Ring Diameter | 6.73mm |
| Stud Size | M6 |
| Standards/Approvals ANSI/ESD S20.20 | 2021 Electrostatic Control Standard, RoHS |
Key Features
- Constructed of fine grade copper for superior electrical conductivity.
- Electro tin plated for enhanced corrosion resistance.
- Designed with brazed seams for increased barrel strength in harsh environments.
- Bell-shaped barrel entrance for easy and quick wire insertion.
- Maximum operating temperature rating of 170°C for standard industrial applications.
- Suitable for use with solid and stranded wires including irregular shaped conductors.
- Overall length of 31.65mm with an outer ring diameter of 15.88mm and inner ring diameter of 6.73mm.
- Provides superior tensile strength through dimpled and serrated barrel design.
Product Description
TE Connectivity 33465 Solistrand Uninsulated Crimp Ring Terminal is engineered for reliable termination of solid and stranded 6 AWG wires on M6 stud size applications. It is constructed from fine grade high conductivity copper and electro tin plated for excellent corrosion resistance, ensuring optimal electrical performance in demanding industrial environments.
The ring terminal features a robust design with brazed seams that enhance the mechanical strength of the barrel, making it resistant to harsh operating conditions. Its bell-shaped barrel entrance facilitates easy and efficient wire insertion, reducing installation time significantly.
This terminal has a total length of 31.65mm, an outer ring diameter of 15.88mm, and an inner ring diameter of 6.73mm, with a thickness of 1.45mm providing structural integrity. The barrel’s serrated inner surface offers maximum tensile strength and electrical contact area, ensuring a secure crimp connection with a 'W' style crimp.
Rated for a maximum operating temperature of 170°C, this uninsulated ring terminal is suitable for a wide range of industrial, electronic, telecommunications, and control instrument applications including materials handling equipment, motors, transformers, switchgear, and panel boxes. It is compliant with the ANSI/ESD S20.20:2021 Electrostatic Control Standard and RoHS directives for environmental safety.
Constructed of fine grade copper for superior electrical conductivity. Electro tin plating enhances corrosion resistance. Brazed seams increase barrel strength and durability. Bell-shaped mouth for quick wire insertion. 170°C maximum operating temperature.
Suitable for solid and stranded wire application. Compliant with ANSI/ESD and RoHS standards. Robust design for use in harsh industrial environments. Optimizes electrical contact and tensile strength with serrated inner barrel.
This TE Connectivity Solistrand ring terminal is an ideal choice for professionals seeking high-quality, durable electrical connectors for various industrial and commercial electrical systems. Explore similar products in the Crimp Terminal category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this uninsulated crimp ring terminal is 170°C.
This terminal is suitable for solid and stranded wires with a minimum wire size of 6 AWG (10.5 mm²) and a maximum wire size of 6 AWG (16.8 mm²).
The overall length of this terminal is 31.65 mm, with an outer ring diameter of 15.88 mm and an inner ring diameter of 6.73 mm.
It is constructed from fine grade copper, which provides superior electrical conductivity and is electro tin plated for enhanced corrosion resistance.
The terminal features brazed seams for increased barrel strength and a bell-shaped barrel entrance for easy wire insertion, optimizing installation efficiency.
This terminal is compliant with the ANSI/ESD S20.20:2021 Electrostatic Control Standard and RoHS directives for environmental safety.
It provides a secure crimp connection with a 'W' style crimp, ensuring maximum tensile strength and electrical contact area.
It is suitable for a wide range of industrial applications including materials handling equipment, motors, transformers, switchgear, and panel boxes.
The thickness of this crimp ring terminal is 1.45 mm.
This crimp ring terminal is designed for M6 stud size applications.
The serrated inner surface of the barrel maximizes tensile strength and increases the electrical contact area, ensuring a secure connection.
The country of origin for this crimp ring terminal is India.
