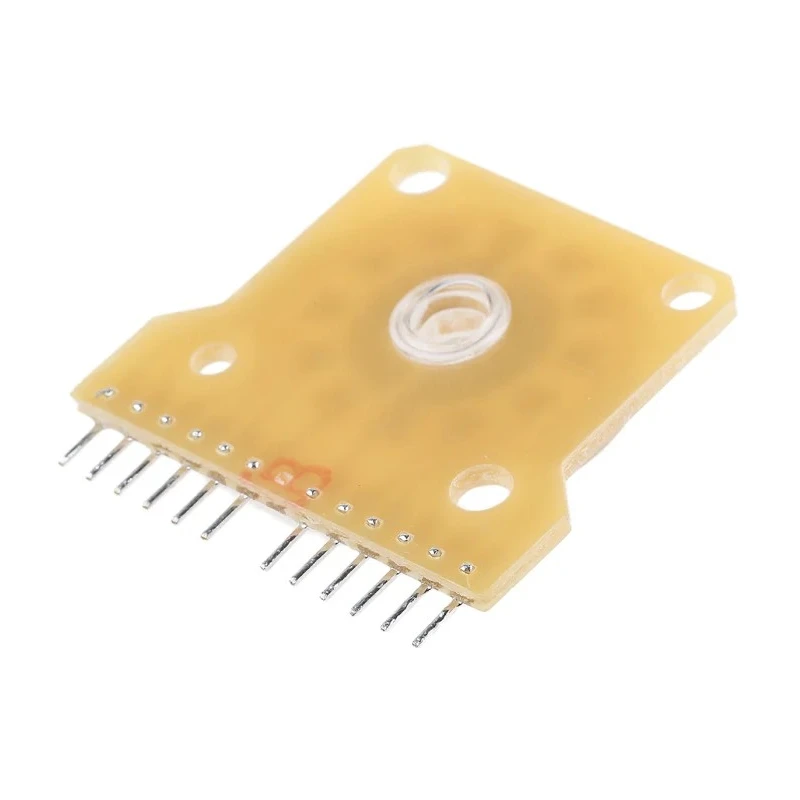

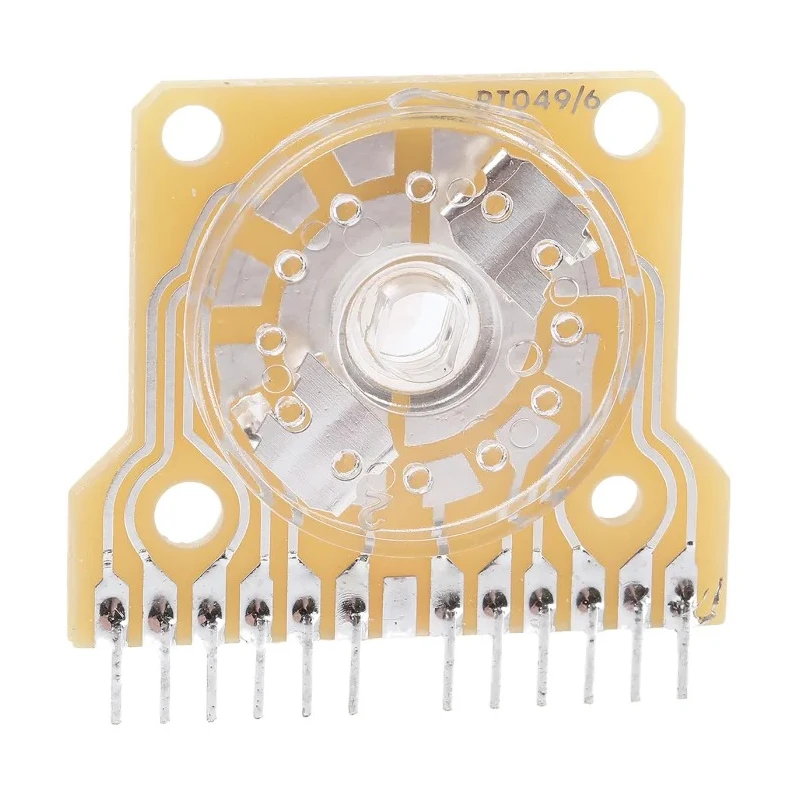

Lorlin Rotary Switch Wafer PCB mounting with 5 Positions and 2 Contacts PT602-003

Lorlin PT602-003 Rotary Switch Wafer PCB mounting is a high-quality rotary switch mechanism specifically designed for printed circuit board applications. This switch features 5 selectable positions and 2 contacts, making it suitable for various electrical switching tasks in industrial, automation, and electronic equipment.

The switch is supplied fitted with a non-interchangeable drive wafer, ensuring reliable operation and preventing incorrect assembly. With a shaft diameter of 6mm, it offers sturdy rotational control ideal for precise settings.

Terminal spacing is set at a 2.54mm pitch, making the switch compatible with standard PCB layouts. The rotary switch mechanism includes an adjustable stop and supports up to five additional wafers, allowing for extended switching configurations to meet specific application demands.

All wafers used in this switch are break before make type, which enhances the safety of switching by avoiding simultaneous contact closures.

A spacer kit is optionally available that contains 10 spacers, 2 front insulators, 1 rear driver shaft, 1 retaining strap, 2 tie rods, and 2 push-on fixings. This kit ensures a maintained pitch of 6.35mm between wafers during construction, providing user flexibility in assembly and configuration.

This product conforms with RoHS standards and is manufactured in the United Kingdom, assuring compliance with environmental regulations and high manufacturing quality. The switch is designed for PCB mounting with a non-interchangeable drive wafer fitted.

Shaft diameter is 6mm, suitable for precise rotational control. Features adjustable stop and a maximum of five additional wafers can be added. Terminal spacing is 2.54mm pitch ensuring compatibility with standard components.

All wafers are break before make ensuring safe switching action. A spacer kit is available to maintain 6.35mm pitch between wafers for customized assembly.
