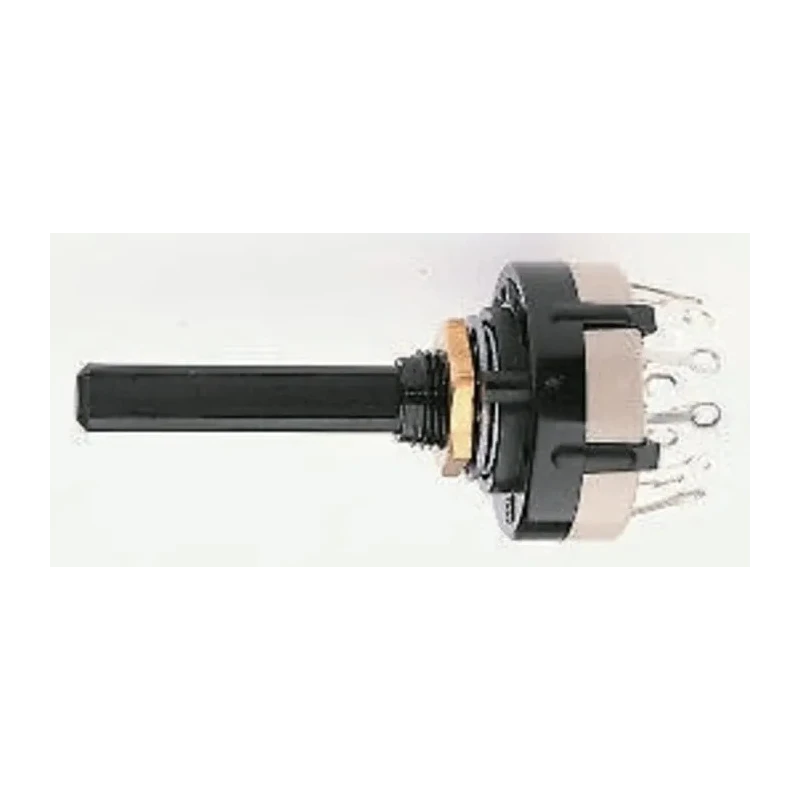

Lorlin 6 Position DPST Rotary Switch, 150mA, 27.5mm Polyamide Housing, Panel Mount, Solder Tab CK1040
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread |
| Height | 71.1mm |
| Model | CK1040 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Number of Positions | 6 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder Tab |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 2 |
| Standards/Approvals | RoHS |
| Actuator Colour | Silver |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
| Lorlin CK, 6 Position DPST Rotary Switch, 150mA, Solder TabBrand | Lorlin |
| NSF MY Shorting, 6 Position DP6T Rotary Switch, 1.5A, SolderBrand | NSF |
Key Features
- This rotary switch features a durable polyamide housing with a diameter and width of 27.5mm each.
- Rated for a maximum AC voltage of 250V and maximum DC voltage of 24V.
- The switch has 6 positions and 2 poles for precise circuit control.
- It offers a mechanical life of 10,000 cycles ensuring long-lasting operation.
- The actuator is silver-colored with a 6mm diameter spindle and 50mm length, compatible with collet knobs.
- Terminal type is solder tab for secure electrical connections.
- Operating temperature range is from -30°C to 85°C suitable for varied environments.
- The switch's angle of throw is 90 degrees with panel mount installation.
Product Description
Lorlin CK1040 model 6 Position DPST Rotary Switch is a compact and reliable electrical switch designed for precise circuit selection and automation applications. Featuring a polyamide housing and measuring 27.5mm in diameter and width, this panel mount rotary switch offers robust construction with a solder tab terminal type for ease of installation.
Rated for a contact current of 150mA at 250V AC/DC, it suits low current electrical control uses. The 6-position selector with 2 poles enables combination switching with a 90-degree angle of throw. Mechanical endurance of 10,000 cycles ensures durability in industrial and laboratory settings.
The actuator features a silver color and a 6mm diameter spindle of 50mm length with threaded bush (M10x0.75) for secure knob mounting. Operating temperature ranges from -30°C to 85°C permit use in diverse ambient conditions. The switch body complies with RoHS standards and includes make-before-break or break-before-make contact options.
This rotary switch assembly finds utility across electrical automation, instrumentation, HVAC control panels, manufacturing machines, and other industrial equipment requiring reliable multiple position switching.
This rotary switch features a durable polyamide housing with a diameter and width of 27.5mm each. Rated for a maximum AC voltage of 250V and maximum DC voltage of 24V. The switch has 6 positions and 2 poles for precise circuit control.
It offers a mechanical life of 10,000 cycles ensuring long-lasting operation. The actuator is silver-colored with a 6mm diameter spindle and 50mm length, compatible with collet knobs. Terminal type is solder tab for secure electrical connections.
Operating temperature range is from -30°C to 85°C suitable for varied environments. The switch's angle of throw is 90 degrees with panel mount installation. RoHS compliant with proof voltage of 1500Vac and UL-VO rated 27.5mm body diameter.
Includes options for shorting MBB or non-shorting BBM contact configurations.
Choose Lorlin rotary switches for dependable, compact, and versatile switching solutions in electronics and electrical control systems. Browse additional Rotary Switch components and related automation products on EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rotary switch is rated for a maximum AC voltage of 250V and a maximum DC voltage of 24V.
It offers a mechanical life of 10,000 cycles, ensuring durability in various applications.
The operating temperature range is from -30°C to 85°C, making it suitable for diverse environments.
This model features a solder tab terminal type for secure electrical connections.
This rotary switch has 6 positions, allowing for precise circuit control.
The actuator has a diameter of 6mm and a length of 50mm, compatible with collet knobs.
The angle of throw for this switch is 90 degrees, facilitating effective switching.
The housing is made of durable polyamide, providing robust construction.
The height of this rotary switch is 71.1mm.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
The contact configuration is DPST (Double Pole Single Throw), allowing for versatile switching options.
This rotary switch is designed for panel mount installation.
