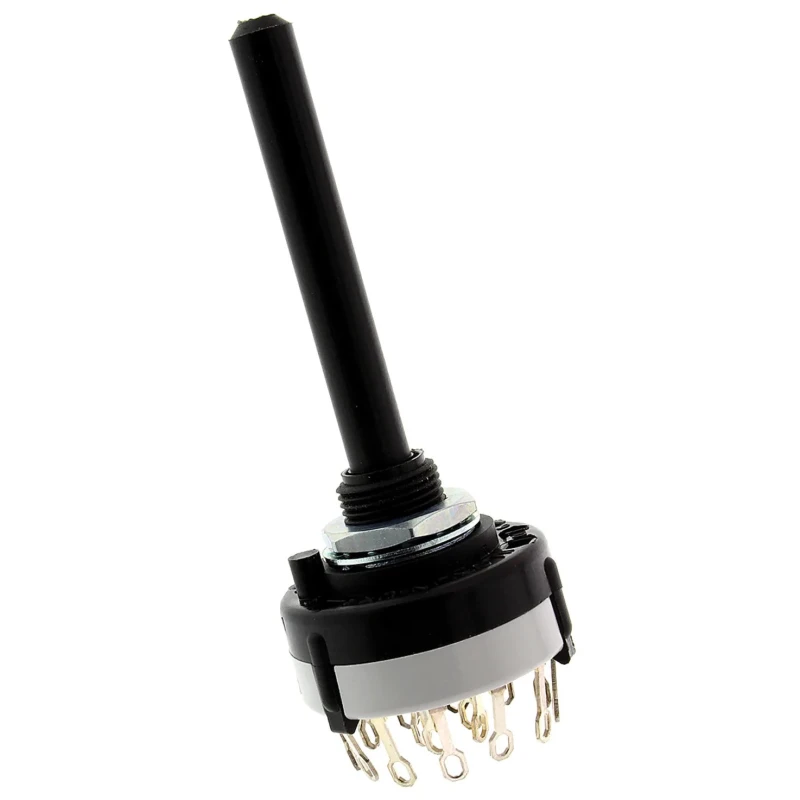

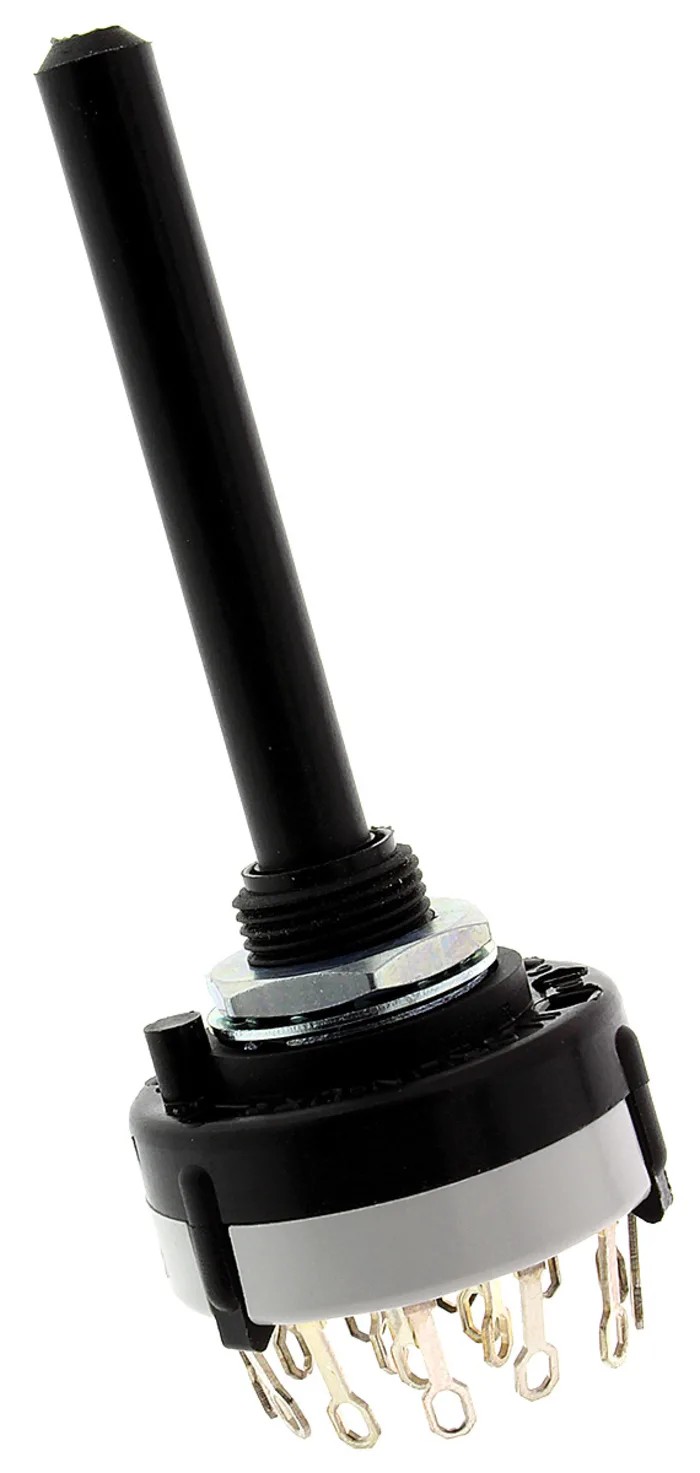

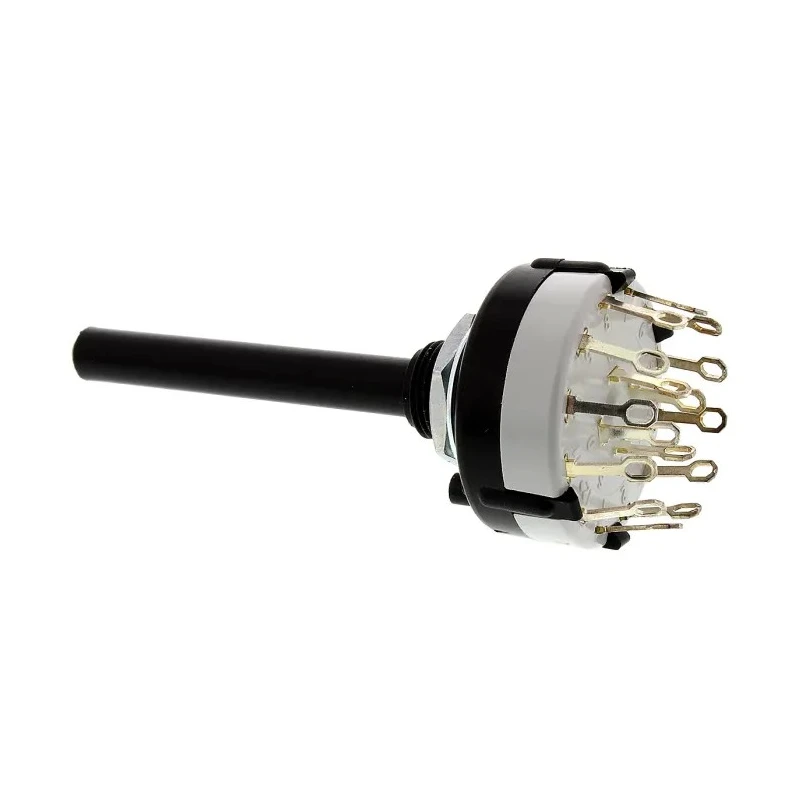

Lorlin 3 Position 4PST Rotary Switch Panel Mount 150mA 250V AC 24V DC Solder Tab CK1042
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread |
| Height | 71.1mm |
| Model | CK1042 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 4PST |
| Number of Positions | 3 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder Tab |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 4 |
| Standards/Approvals | RoHS |
| Actuator Colour | Silver |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
| Lorlin CK, 4 Position 3PST Rotary Switch, 150mA, Solder TabBrand | Lorlin |
Key Features
- Features a polyamide housing with a 27.5mm diameter and width.
- Has 4 poles and 3 positions selectable by a 90° angle of throw actuator in silver color.
- Operates reliably between -30°C and 85°C.
- Mechanical life of 10000 cycles ensures durability.
- Compact dimensions including 71.1mm height and 27.5mm depth suit confined panel spaces.
- Includes a 6mm diameter spindle with M10x0.75mm thread for easy knob mounting.
- Designed with RoHS compliance and standard UK origin.
- Suitable for industrial, electrical, automation, and control panel applications.
Product Description
Lorlin CK1042 3 Position 4PST Rotary Switch offers reliable switching for industrial and electrical panels with a contact current rating of 150mA and maximum voltages of 250V AC and 24V DC. It features a durable polyamide housing with a compact 27.5mm diameter body, ideal for confined spaces.
This rotary switch is configured with 4 poles and selectable 3 positions through a 90-degree angle of throw actuator finished in silver color for ease of operation. It is mountable on panels with solder tab terminals and supports temperatures from -30°C up to 85°C, ensuring robust performance in varying environments.
The switch mechanism provides a mechanical life expectancy of 10,000 cycles, making it suitable for frequent operation in automation and control systems. The 6mm spindle diameter with an M10x0.75mm thread and 50mm spindle length allows easy mounting of collet knobs for user-friendly control.
Polyamide housing material ensures strength and electrical insulation. Contact rating supports 150mA current at rated voltages for precise switching applications. The compact size with 27.5mm diameter and 71.1mm height fits well in panel mount configurations.
Shorting MBB (make before break) contacts improve switching reliability, with optional BBM (break before make) available as per datasheet. RoHS compliant and manufactured in the United Kingdom, guaranteeing quality standards.
This Rotary Switch is ideal for industrial automation, electrical distribution panels, HVAC controls, instrumentation, and other situations requiring compact and reliable manual position switching. Its proven mechanical life and robust material composition make it a dependable component in demanding environments.
Explore more from Lorlin's CK series for other switch configurations and mounting options suitable for diverse industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 150mA.
It supports a maximum voltage of 250V AC and 24V DC.
The mechanical life expectancy of this rotary switch is 10,000 cycles.
This rotary switch operates reliably between -30°C and 85°C.
It has a diameter of 27.5mm and a height of 71.1mm, designed for panel mounting.
This model features 3 selectable positions.
The switch is equipped with solder tab terminals for connection.
The actuator allows for a 90° angle of throw.
The housing is made from polyamide, providing strength and electrical insulation.
Yes, it is RoHS compliant, ensuring it meets environmental standards.
The spindle has a diameter of 6mm and an M10x0.75mm thread for easy knob mounting.
It is suitable for industrial automation, electrical distribution panels, and HVAC controls.
