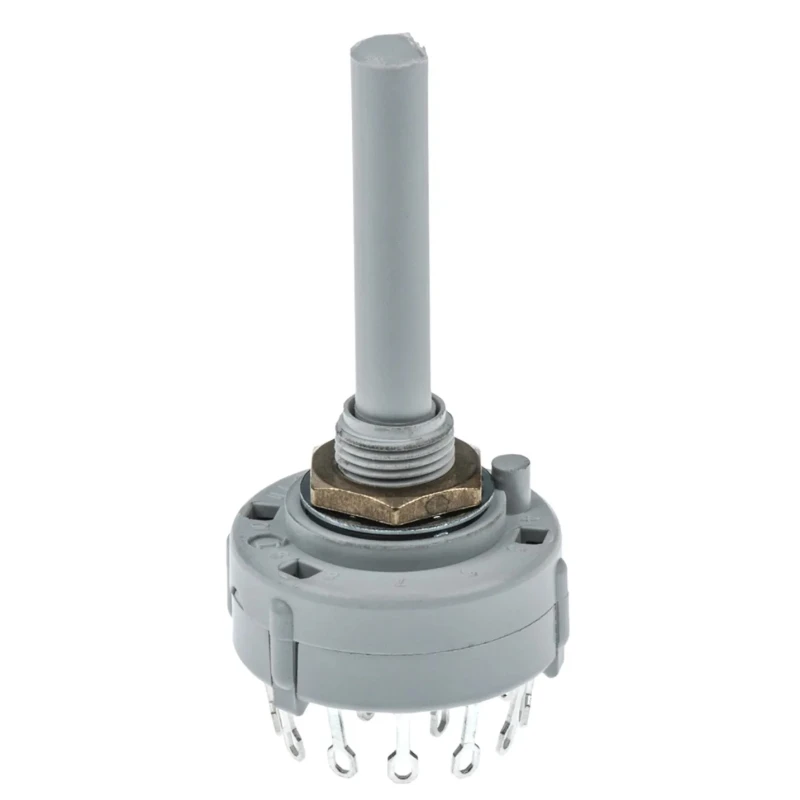

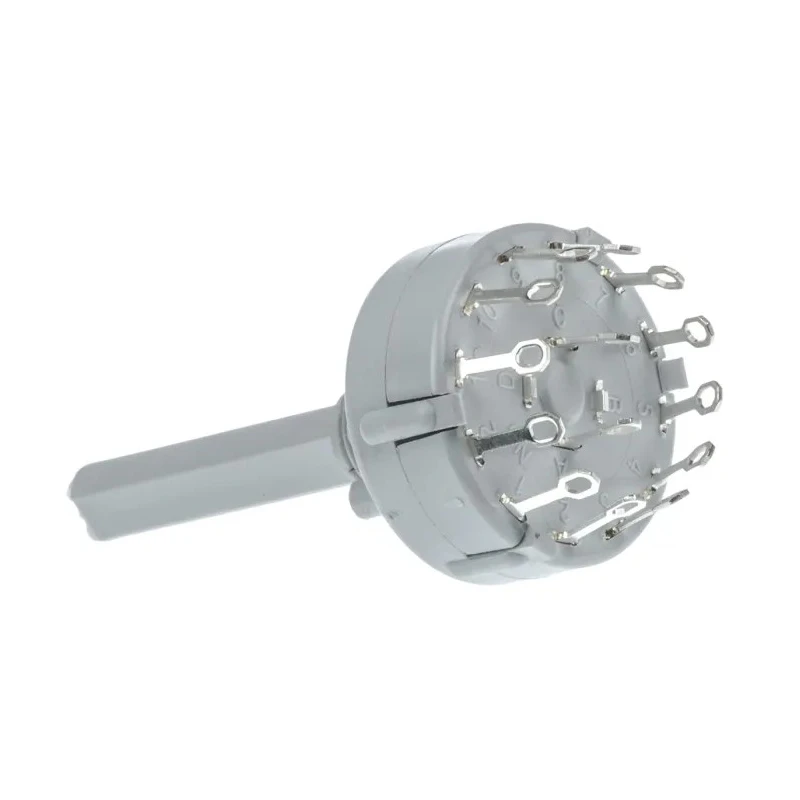

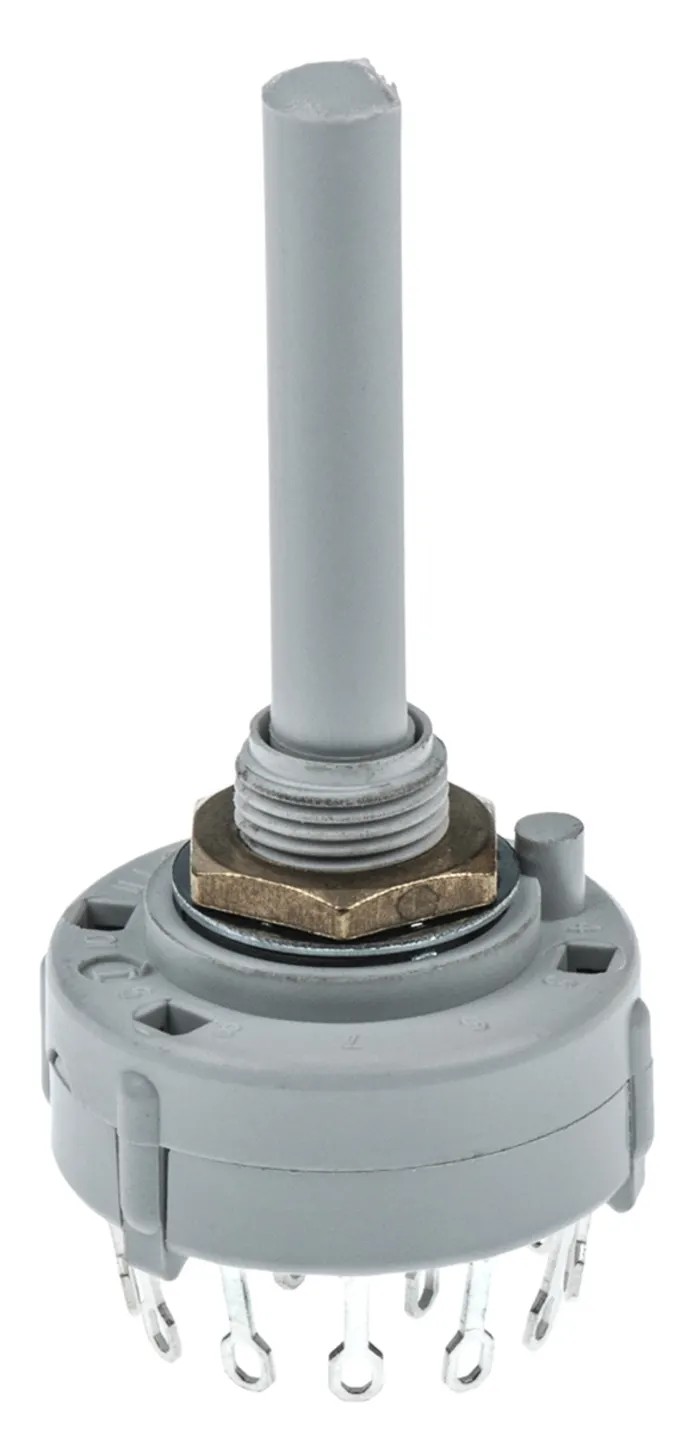

Lorlin 6 Position DPST Rotary Switch 150mA 250V AC 24V DC Polyamide Housing Panel Mount CK1025
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread |
| Height | 59.1mm |
| Model | CK1025 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Number of Positions | 6 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder Tab |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 2 |
| Standards/Approvals | RoHS |
| Actuator Colour | Silver |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
| Lorlin CK, 6 Position DPST Rotary Switch, 150mA, Solder TabBrand | Lorlin |
Key Features
- Constructed with durable polyamide housing ensuring good electrical insulation.
- Panel mounted switch with solder tab terminals for secure connections.
- Rated for maximum 250V AC and 24V DC voltage applications.
- Operates reliably between -30°C to 85°C for varied environmental conditions.
- Features a silver actuator color and 90° angle of throw for precise switching.
- Mechanical life rated at 10,000 cycles for long-lasting operation.
- Compact diameter of 27.5mm suitable for midget wafer switch needs.
- Includes shorting MBB and non-shorting BBM contact options with adjustable stop or continuous rotation.
Product Description
Lorlin CK1025 is a high quality 6 Position DPST Rotary Switch designed for precision electrical switching in industrial, laboratory, and automation systems. It features a polyamide housing providing robust insulation and mechanical strength suitable for panel mounting in compact spaces.
This rotary switch supports a contact current rating of 150mA and voltage ratings of up to 250V AC and 24V DC, making it ideal for control circuits, instrumentation, and automation equipment requiring reliable low current switching.
The switch is engineered to operate reliably in harsh environments with an operating temperature range from -30°C to 85°C. The actuator is silver in color with a 90-degree angle of throw, facilitating precise position selection. It provides a mechanical life of 10,000 cycles ensuring dependable long-term operation.
The 27.5mm diameter body conforms to midget wafer switch dimensions and includes 6 discrete positions with 2 poles (DPST configuration). It uses solder tab terminals for secure and easy PCB or wiring connections. The switch includes both make-before-break and break-before-make contact configurations, with options for adjustable stops or continuous rotation to accommodate various application requirements.
Manufactured in the United Kingdom, the CK1025 rotary switch complies with RoHS standards, ensuring environmentally conscious production. Its compact dimensions and reliable specifications make it highly suitable for electrical control panels, HVAC systems, instrumentation, and general automation use.
The package contains the rotary switch with all stated technical features ready for installation. Its sturdy construction and precise design support industrial and commercial electronic switching applications.
Durable polyamide housing assures electrical safety and mechanical stability. Panel mounting and solder tab terminals enable versatile installation. 6 positions and DPST configuration allow flexible switching setups. Contact rating of 150mA at 250V AC/24V DC suits low-power control needs.
Wide operating temperature range ensures usability in diverse environments. Long mechanical life of 10,000 cycles for dependable use. Compliance with RoHS for environmentally safe usage. Compact size with 27.5mm diameter fits midget switch applications.
Browse more Rotary Switches and electrical components on EnvMart for your automation and electrical control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 250V AC and 24V DC.
It has a contact current rating of 150mA.
This switch operates reliably between -30°C to 85°C.
This rotary switch features 6 discrete positions.
It uses solder tab terminals for secure connections.
The mechanical life of this switch is rated at 10,000 cycles.
The dimensions are 27.5mm in diameter and 59.1mm in height.
The housing is made of durable polyamide, providing good electrical insulation.
The angle of throw for this model is 90 degrees.
Yes, it complies with RoHS standards for environmentally safe production.
It includes both make-before-break (MBB) and break-before-make (BBM) contact configurations.
This switch is manufactured in the United Kingdom.
