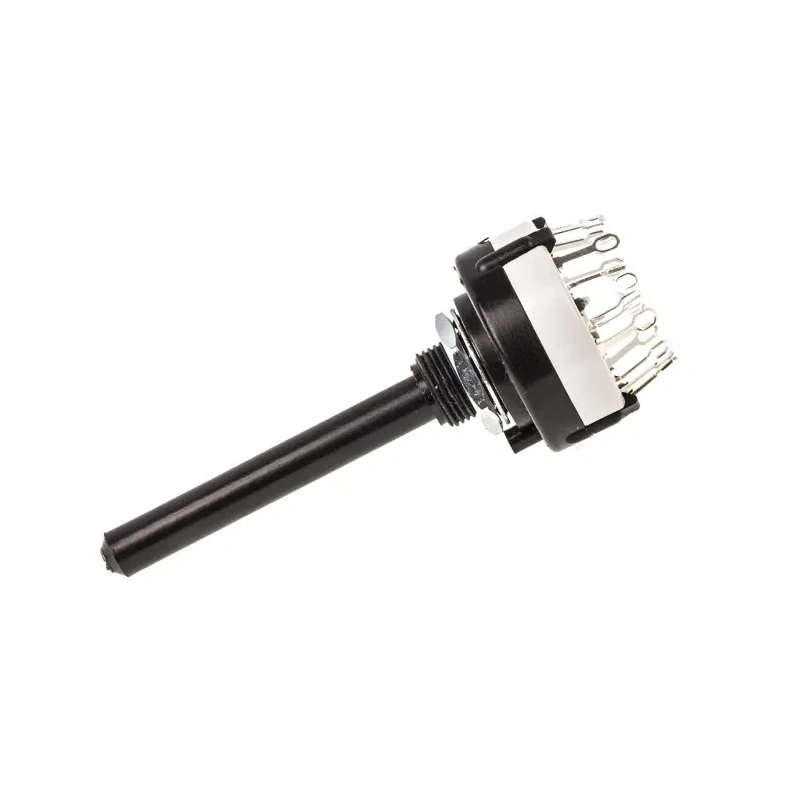

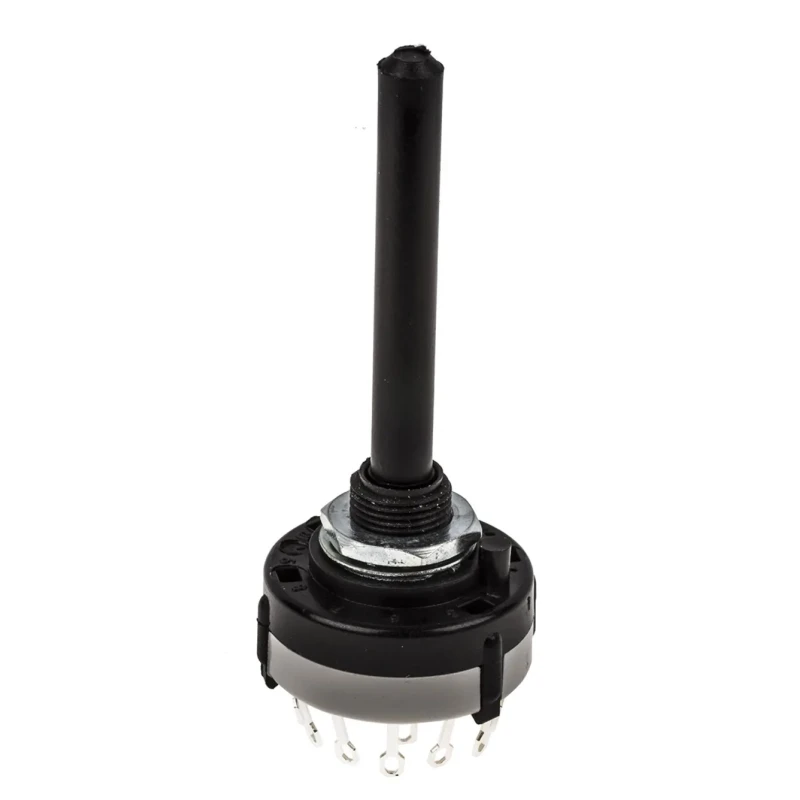

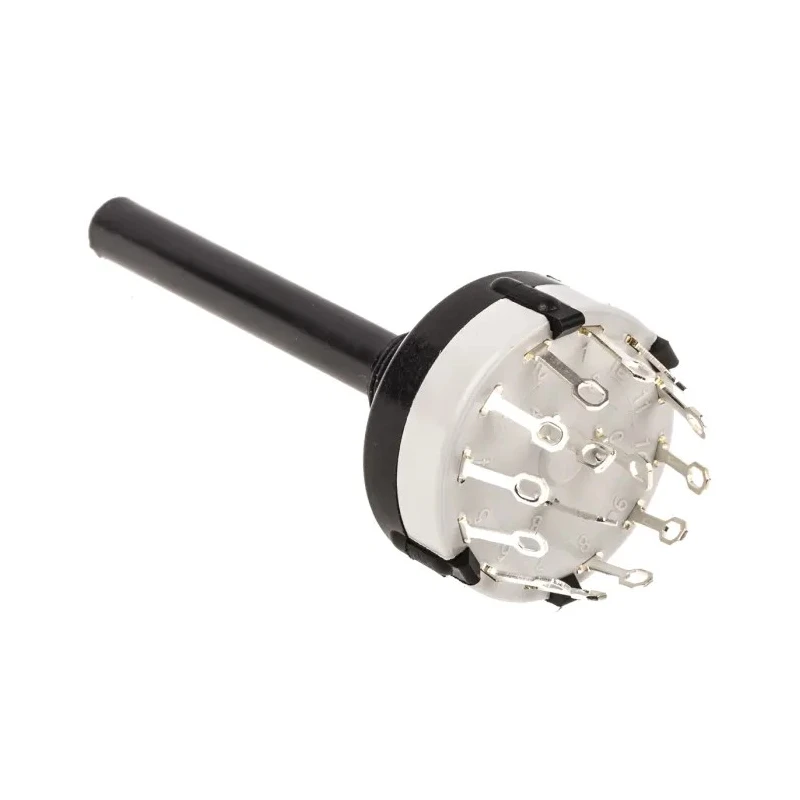

Lorlin 4 Position 3PST Rotary Switch 150mA Panel Mount Solder Tab CK1041
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread |
| Height | 71.1mm |
| Model | CK1041 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 3PST |
| Number of Positions | 4 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder Tab |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Actuator Colour | Silver |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
| Lorlin CK, 3 Position 4PST Rotary Switch, 150mA, Solder TabBrand | Lorlin |
Key Features
- The switch offers 4 selectable positions with 3 poles for versatile control configurations.
- Rated for 150mA contact current at a maximum of 250V AC and 24V DC.
- Constructed with a durable polyamide housing and solder tab terminals for secure mounting.
- Operates reliably within a temperature range of -30°C to 85°C.
- The rotary actuator has a 90-degree angle of throw and a mechanical life of 10,000 cycles.
- Panel mount type with a 27.5mm diameter and depth for compact integration.
- The switch meets RoHS compliance standards and includes a 6mm spindle with M10x0.75mm threaded bush for knob mounting.
- Designed in the United Kingdom, suitable for industrial and electronic control applications.
Product Description
Lorlin CK1041 4 Position 3PST Rotary Switch is a precision-engineered rotary switch suitable for industrial, electronic, and automation equipment. Featuring a polyamide housing with a silver actuator, this switch offers reliable switching at 150mA current levels for both AC and DC voltages.
The switch includes 4 distinct positions with 3 poles (3PST) allowing multiple circuit control within a compact footprint. It is designed for panel mounting with solder tab terminals facilitating secure and practical wiring. The 6mm spindle with an 8mm long bush threaded M10x0.75mm ensures easy attachment of collet knobs and durable installation.
Rated for a maximum AC voltage of 250V and DC voltage of 24V, the switch functions efficiently in environments with operating temperatures ranging from -30°C to 85°C. The mechanical design supports 10,000 cycles, underscoring its endurance in frequent switching applications. The 90-degree throw angle provides precise and tactile positional feedback.
Its compact dimensions of 27.5mm diameter and depth allow integration into various electronic control panels without occupying excessive space. The switch's RoHS compliance guarantees environmentally responsible manufacturing.
This product is manufactured in the United Kingdom and is ideal for applications in automation, electronic instrumentation, and industrial control systems requiring reliable rotary switching.
The switch offers 4 selectable positions with 3 poles for versatile control configurations. Rated for 150mA contact current at a maximum of 250V AC and 24V DC. Constructed with a durable polyamide housing and solder tab terminals for secure mounting.
Operates reliably within a temperature range of -30°C to 85°C. The rotary actuator has a 90-degree angle of throw and a mechanical life of 10,000 cycles. Panel mount type with a 27.5mm diameter and depth for compact integration.
The switch meets RoHS compliance standards and includes a 6mm spindle with M10x0.75mm threaded bush for knob mounting. Designed in the United Kingdom, suitable for industrial and electronic control applications. Explore more high-quality Rotary Switches and related electrical components at EnvMart for efficient industrial and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch is rated for a contact current of 150mA.
It can handle a maximum AC voltage of 250V and a maximum DC voltage of 24V.
The operating temperature range is from -30°C to 85°C.
This rotary switch features 4 selectable positions.
It uses solder tab terminals for secure mounting.
The mechanical life of the switch is rated for 10,000 cycles.
The switch has a diameter of 27.5mm, a height of 71.1mm, and a depth of 27.5mm.
The rotary actuator has an angle of throw of 90 degrees.
Yes, it meets RoHS compliance standards.
The housing is constructed from polyamide.
This model is designed for panel mounting.
It includes a 6mm spindle with an M10x0.75mm threaded bush for knob mounting.
