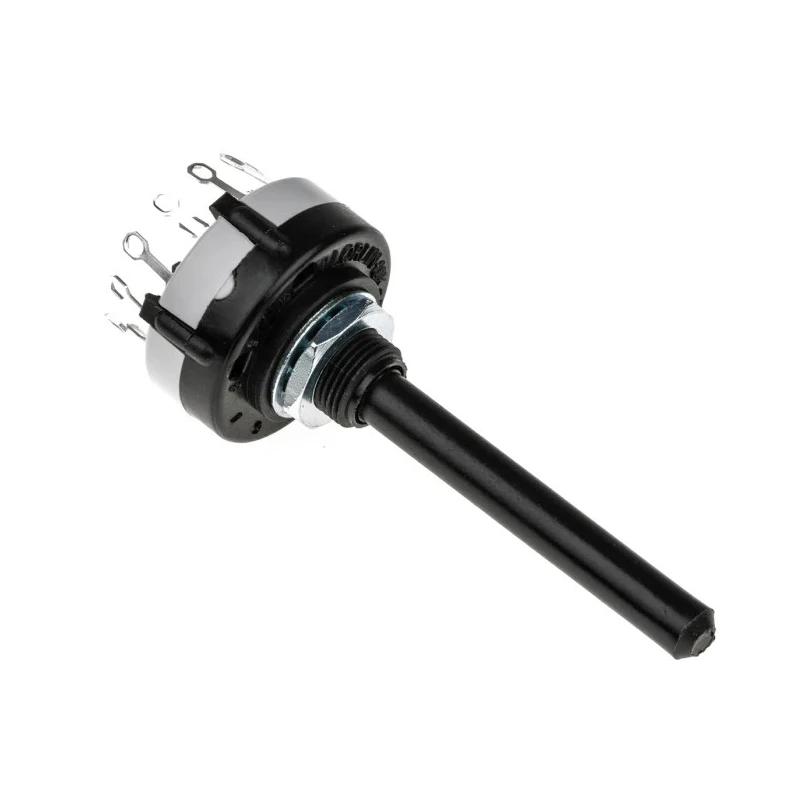

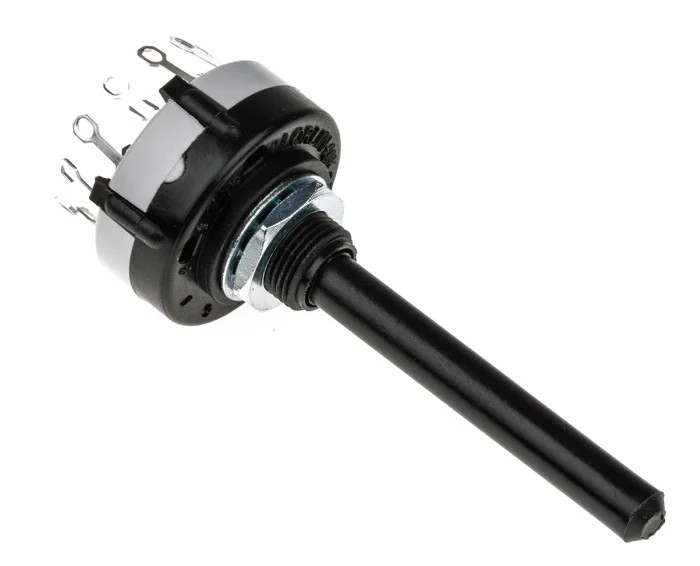

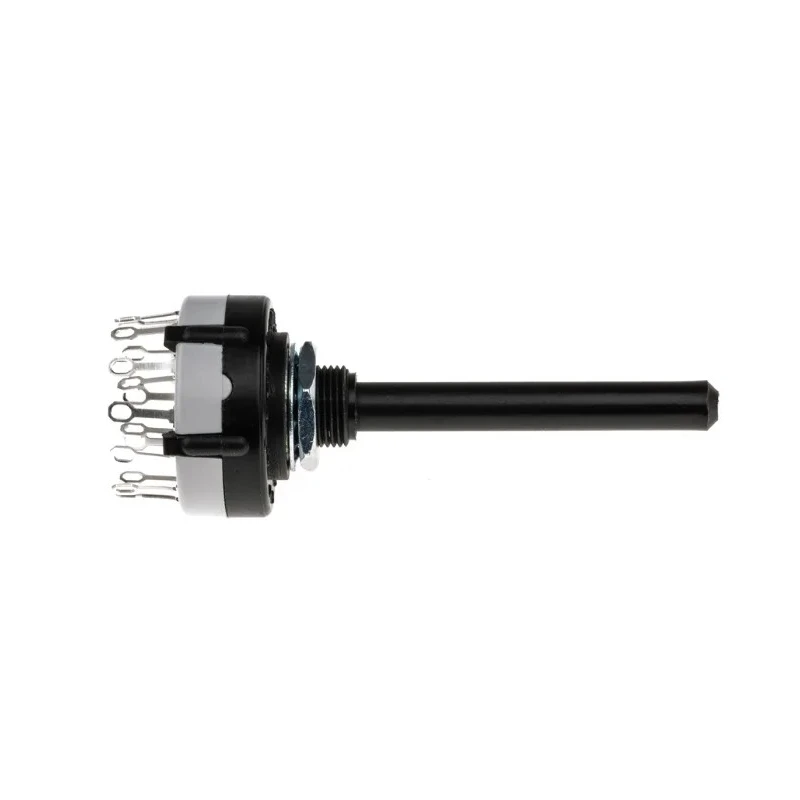

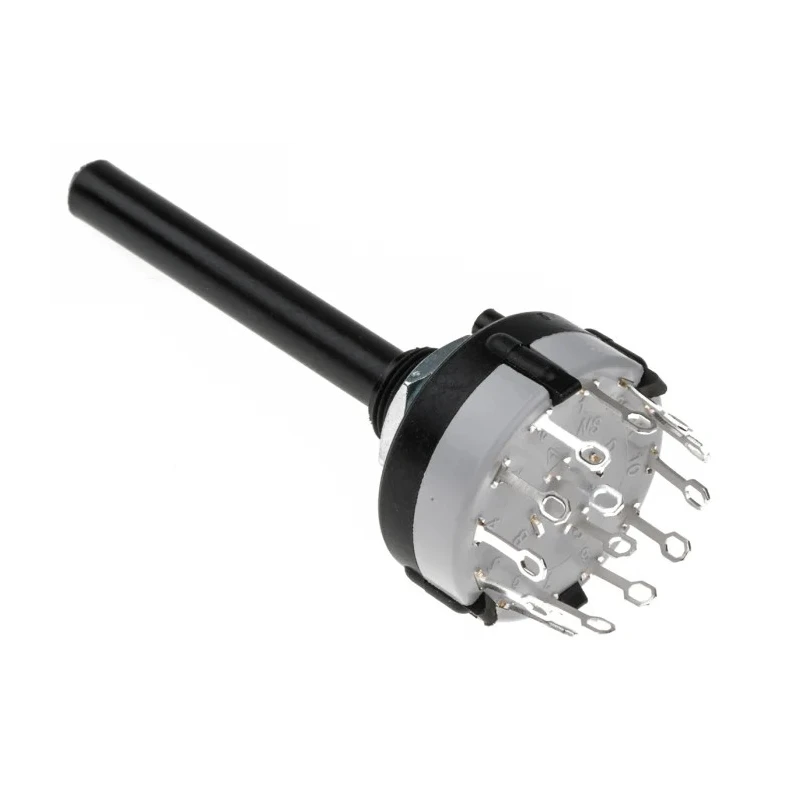

Lorlin 6 Position DPST Rotary Switch 150mA, 27.5mm Panel Mount, Polyamide Housing CK1030
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread |
| Height | 71.1mm |
| Model | CK1030 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Number of Positions | 6 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder Tab |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 2 |
| Standards/Approvals | RoHS |
| Actuator Colour | Silver |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
| Lorlin CK, 6 Position DPST Rotary Switch, 150mA, Solder TabBrand | Lorlin |
Key Features
- Rated for 150mA current at 250V AC and 24V DC.
- Features 6 positions and 2 poles for flexible switching configurations.
- Constructed with durable polyamide housing for reliable use.
- Panel mount type with solder tab terminals for secure connections.
- Operating temperature range from -30°C to 85°C ensures wide usability.
- Compact dimensions of 27.5mm diameter and 71.1mm height optimize space efficiency.
- Mechanical life rated for 10,000 cycles for long-term operation.
- Includes a 6mm spindle with M10x0.75mm threaded bush for easy knob mounting.
Product Description
The Lorlin CK1030 is a precision 6 Position DPST Rotary Switch designed for industrial and electronic applications requiring reliable switching performance. Featuring a compact design with polyamide housing, this rotary switch is rated for 150mA contact current and operates safely up to 250V AC or 24V DC. Its panel mount configuration with solder tab terminals allows for secure and straightforward installation in control panels and instrumentation.
With a mechanical life of 10,000 cycles, the switch ensures durability under frequent use. The 90° angle of throw provides accurate positional feedback, while the 6-position capability enables multiple circuit switching configurations. The 6mm spindle and threaded bush support easy attachment of collet knobs, facilitating user-friendly operation.
Its temperature operability from -30°C to 85°C suits various industrial environments, including electrical automation, instrumentation, and control systems. The polyamide housing guarantees robust protection, and the product complies with RoHS directives, aligning with environmental standards.
Notable features include make-before-break or break-before-make contact options, adjustable stop and continuous rotation variants, enhancing flexibility for diverse use cases. The switch is ideal for applications in electrical control panels, equipment manufacturing, and testing apparatus.
Rated 150mA @ 250V AC/DC contact current. 6 positions with 2 poles (DPST) for versatile switching. Compact size: 27.5mm diameter, 71.1mm height, and 27.5mm depth. Panel mount design with solder tab terminals for easy wiring.
Polyamide housing ensures durability and insulation. Wide operating temperature from -30°C to 85°C for reliability. Mechanical life of 10,000 cycles for extended usage. Compliance with RoHS standards for safety and environment.
Includes 6mm spindle and threaded bush (M10x0.75mm) for knob mounting. 90° angle of throw for precise switching control. Explore more Lorlin Rotary Switches and industrial electrical components on EnvMart for your automation and control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a contact current of 150mA at 250V AC and 24V DC.
The operating temperature range is from -30°C to 85°C, making it suitable for various industrial environments.
This rotary switch features 6 positions, allowing for versatile switching configurations.
It is designed for panel mounting and includes solder tab terminals for secure connections.
The mechanical life is rated for 10,000 cycles, ensuring durability under frequent use.
The housing is constructed from polyamide, providing insulation and protection.
The switch has a diameter of 27.5mm, a height of 71.1mm, and a depth of 27.5mm.
It features solder tab terminals, which facilitate straightforward wiring.
The angle of throw is 90°, providing precise positional feedback during operation.
Yes, it complies with RoHS directives, aligning with environmental standards.
It has a silver-colored actuator, which is compatible with collet knobs for user-friendly operation.
It is suitable for applications in electrical control panels, equipment manufacturing, and testing apparatus.
