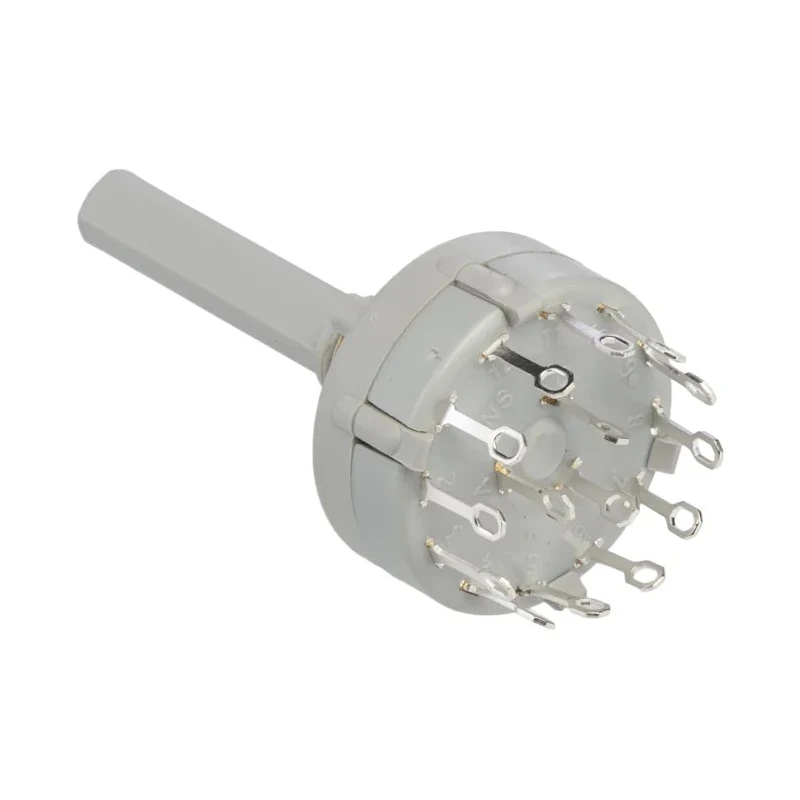

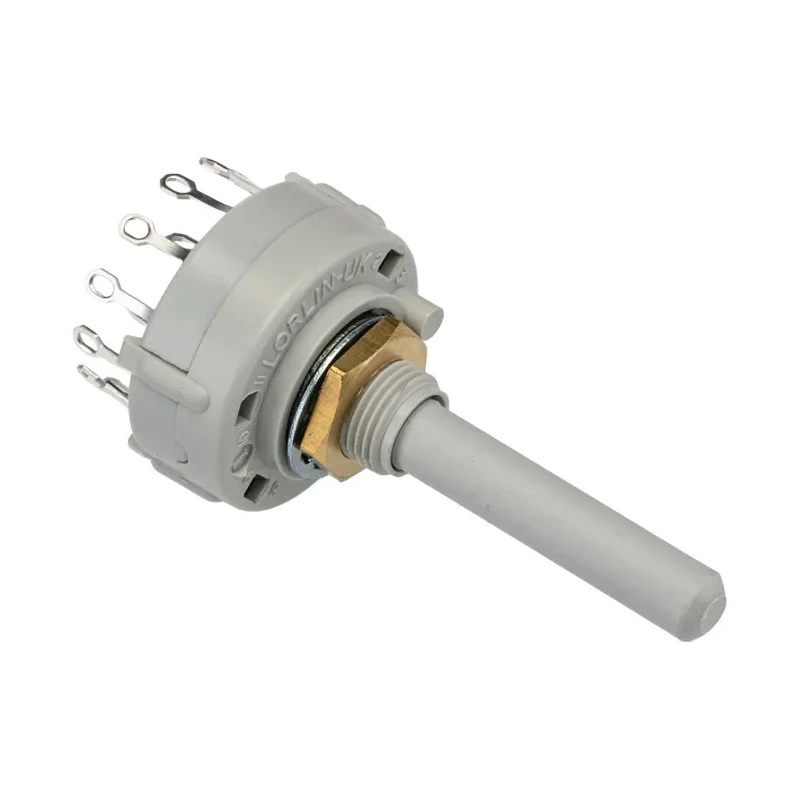

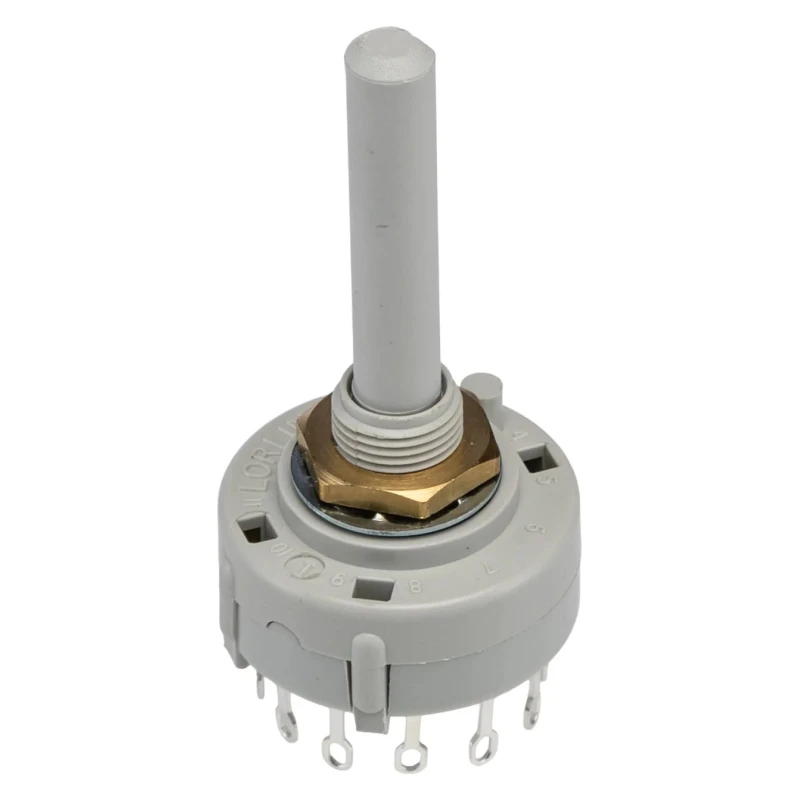

Lorlin Rotary Switch 4 Position 3PST 150mA Solder Tab CK1026
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread |
| Height | 59.1mm |
| Model | CK1026 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 3PST |
| Number of Positions | 4 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder Tab |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Actuator Colour | Silver |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
| Lorlin CK, 4 Position 3PST Rotary Switch, 150mA, Solder TabBrand | Lorlin |
Key Features
- Compact rotary switch with polyamide housing for durability.
- 3 poles and 4 positions for versatile circuit control.
- Solder tab terminals for secure electrical connections.
- Rated for maximum 250V AC and 24V DC voltages.
- Operating temperature range from -30°C to 85°C.
- Mechanical life rated to 10,000 cycles for reliability.
- Silver actuator color with 90° angle of throw.
- Panel mount type suitable for industrial and electrical applications.
Product Description
Lorlin CK1026 is a high-quality rotary switch designed for electrical and automation applications. This 4-position, 3PST rotary switch features a polyamide housing and solder tab terminals, offering durable and reliable electrical connections. The switch is rated for 150mA contact current with a maximum AC voltage of 250V and DC voltage up to 24V, suitable for controlling a variety of low-power circuits.
Its mechanical design supports 10,000 operation cycles, ensuring long service life in industrial environments. The 90° angle of throw with silver actuator color makes operation precise and visually clear. The switch supports panel mounting and operates reliably in a wide temperature range from -30°C to 85°C, making it suitable for harsh conditions found in manufacturing, testing laboratories, and automation systems.
The CK series from Lorlin includes adjustable stop and continuous rotation options, with a compact size featuring a 27.5mm diameter and height of 59.1mm. The spindle length and thread specifications allow for compatible knob mounting, enhancing flexibility in installation.
Designed to meet RoHS compliance and manufactured in the United Kingdom, this rotary switch ensures high environmental and quality standards for industrial users. Compact rotary switch with polyamide housing for durability.
3 poles and 4 positions for versatile circuit control. Solder tab terminals for secure electrical connections. Rated for maximum 250V AC and 24V DC voltages. Operating temperature range from -30°C to 85°C. Mechanical life rated to 10,000 cycles for reliability.
Silver actuator color with 90° angle of throw. Panel mount type suitable for industrial and electrical applications. Complies with RoHS standards for environmental compliance. Manufactured in the United Kingdom with precision engineering.
This product is ideal for use in electrical control panels, industrial automation, manufacturing equipment, and laboratory instruments. Explore more Rotary Switches and control components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum AC voltage of 250V and a maximum DC voltage of 24V.
The mechanical life is rated for 10,000 cycles, ensuring reliability in operation.
The operating temperature range is from -30°C to 85°C, suitable for various environments.
This switch features a 3PST (three-pole, single-throw) contact configuration.
It has a diameter of 27.5mm and a height of 59.1mm.
It uses solder tab terminals for secure electrical connections.
Yes, it is designed for panel mounting, making it versatile for various applications.
The angle of throw is 90°, allowing for precise operation.
The housing is made of polyamide, providing durability and reliability.
Yes, it complies with RoHS standards for environmental compliance.
It is suitable for use in electrical control panels, industrial automation, manufacturing equipment, and laboratory instruments.
The actuator color is silver, which enhances visibility during operation.
