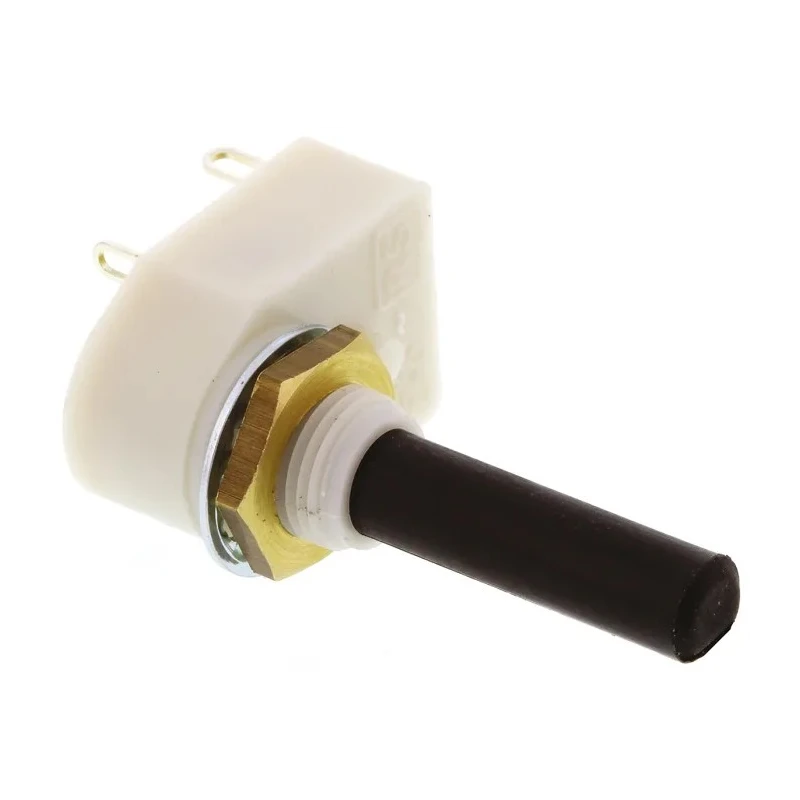

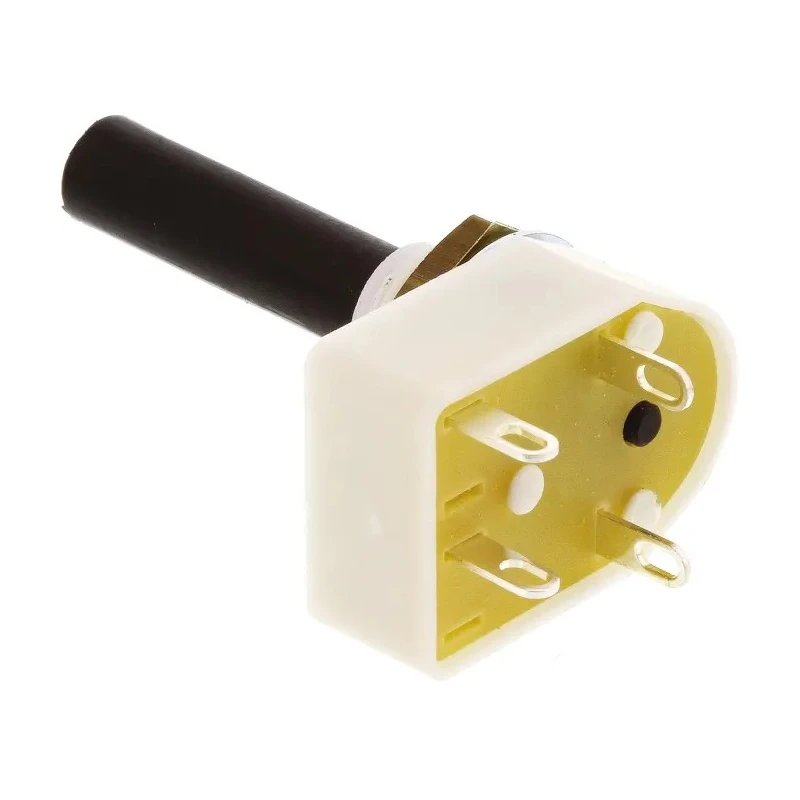

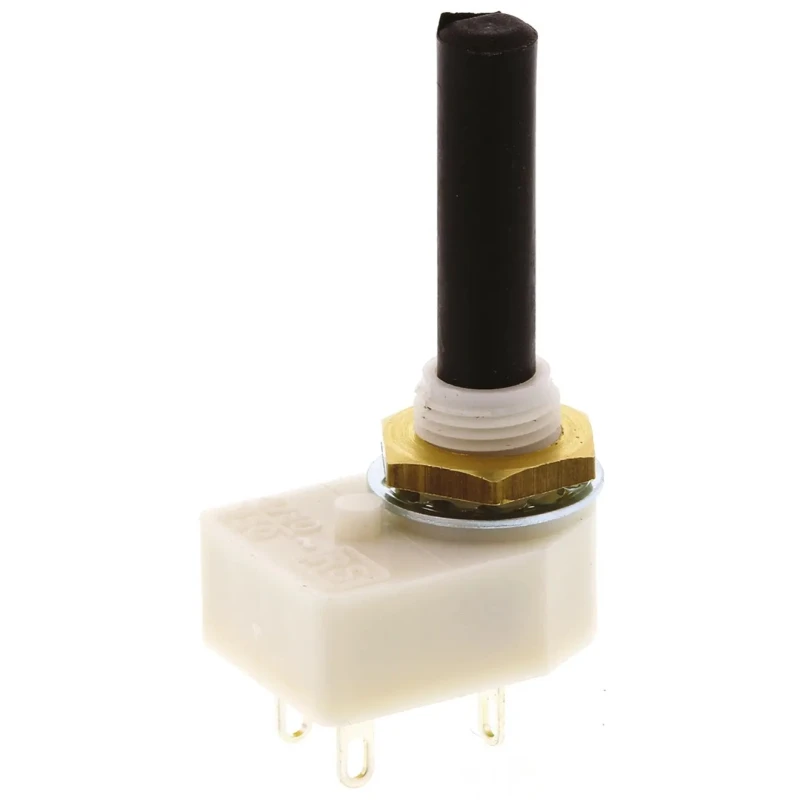

Lorlin 2 Position DPST Rotary Switch 4A Solder Terminal RMS1016
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 13.3mm |
| Brand | Lorlin |
| Height | 24mm |
| Model | RMS1016 |
| Depth | 48.55mm |
| Width | 17mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | RMS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Number of Positions | 2 |
| Switch Configuration | Off-On |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Contact Resistance | 20mΩ |
| Maximum dc Voltage | 12V dc |
| Number of Poles | 2 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 4A |
| Mechanical Life | 15000Operations |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 45 ° |
Key Features
- The rotary switch features a durable polyamide housing with a depth of 48.55 mm and width of 17 mm.
- It supports a maximum AC voltage of 250V and DC voltage of 12V for versatile electrical applications.
- The switch operates reliably between -25° C to 85° C operating temperatures.
- The mechanical life expectancy is 15,000 operations, ensuring long-lasting performance.
- It has an off-on configuration with a 45° angle of throw and a spindle diameter of 13.3 mm.
- The contact resistance is low at approximately 20 mΩ, ensuring efficient electrical conduction.
- The switch is RoHS compliant and manufactured in the United Kingdom.
Product Description
Lorlin RMS1016 is a 2 Position DPST (Double Pole Single Throw) rotary switch rated for a mains current of 4 amperes, designed for panel mounting applications.
The switch features a robust polyamide housing offering excellent flame retardancy and mechanical durability. Its compact dimensions include 48.55 mm depth, 17 mm width, and 24 mm height, with a spindle diameter of 13.3 mm designed for standard flat operation.
Rated for a maximum alternating current voltage of 250V and direct current voltage of 12V, the RMS1016 switch suits a variety of electrical and automation uses within industrial and commercial equipment.
The switch offers high reliability with a mechanical life of approximately 15,000 operations and is effective across a wide temperature range from -25° C to 85° C, making it suitable for harsh environmental conditions. It operates with an off-on contact configuration and 45° angle of throw, providing responsive control.
The solder terminal type and low contact resistance of 20 milliohms contribute to efficient electrical connection and minimal power loss. This model also complies with RoHS standards, ensuring environmentally friendly construction.
4A contact current rating for reliable mains use. Durable polyamide housing with flame retardant properties. Compact size suitable for panel installation. Wide operating temperature range from -25° C to 85° C. Mechanical life of 15,000 operations for longevity.
Low contact resistance of 20 mΩ to reduce power loss. RoHS compliant and manufactured in the United Kingdom.
This rotary switch is ideal for applications in electrical control panels, industrial automation systems, and other equipment requiring precise on/off switching with a double pole contact configuration.
Explore more Rotary Switches and electrical components for your projects and industrial needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rotary switch is rated for a maximum AC voltage of 250V and a maximum DC voltage of 12V.
This model has a mechanical life expectancy of approximately 15,000 operations, ensuring reliable performance over time.
The dimensions of the switch are 48.55 mm in depth, 17 mm in width, and 24 mm in height, with a spindle diameter of 13.3 mm.
The switch features a DPST (Double Pole Single Throw) contact configuration with an off-on switching mechanism.
It operates reliably within a temperature range of -25° C to 85° C, making it suitable for various environmental conditions.
The switch uses a solder terminal type for electrical connections.
The contact resistance is approximately 20 milliohms, which helps in efficient electrical conduction.
Yes, this model is RoHS compliant, ensuring it meets environmental standards.
The housing of the switch is made from polyamide, which provides durability and flame retardancy.
It is suitable for applications in electrical control panels, industrial automation systems, and other equipment requiring precise on/off switching.
The switch is designed for panel mounting, making it easy to integrate into various setups.
The angle of throw for this rotary switch is 45°, allowing for responsive control during operation.
