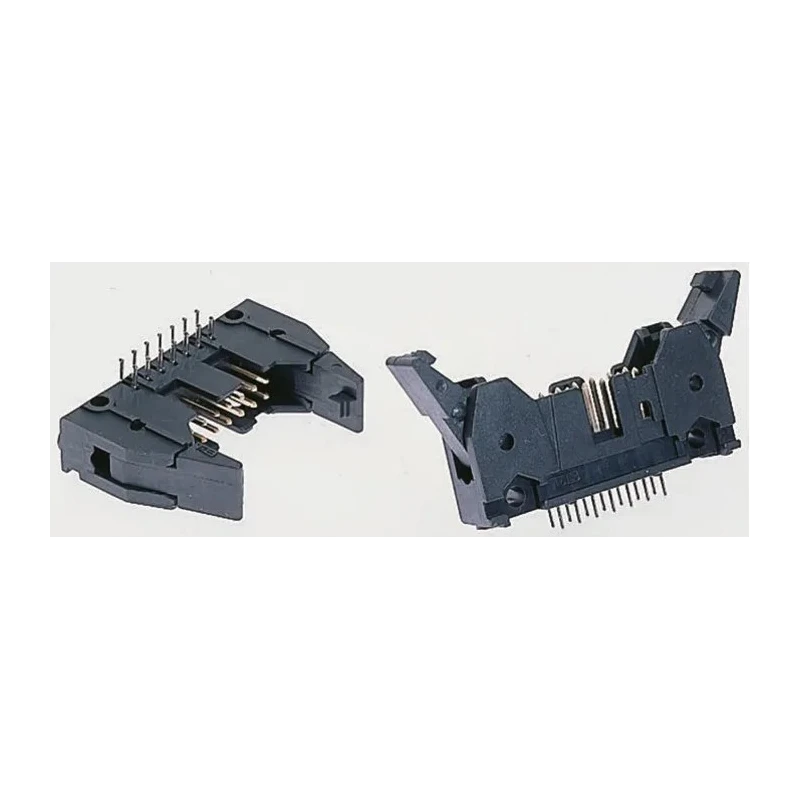

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 5499922-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 5499922-3

Name: TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 5499922-3
Brand: TE Connectivity
SKU: 117089
Price: 4.2 USD
Availability: InStock



Category PCB Header Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Voltage	250V
Brand	TE Connectivity
Orientation	Straight
Current	1.0
Mount Type	Through Hole
Series	AMP-LATCH
Termination Type	Solder
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	16
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The connector utilizes a through-hole mount type ensuring strong mechanical stability.
Gold-plated contacts provide reliable electrical connection and corrosion resistance.
Rated for 250 V and capable of carrying 1.0 A current.
Incorporates ejector latches for secure mating and easy removal from mating IDC ribbon cable connectors.
Suitable for applications in PCs, business equipment, medical devices, storage solutions, networking, industrial controls, appliances, and electrical testing.
Shrouded design improves polarization and mating accuracy to prevent misconnection.
Connector system is wire-to-board with solder termination type.
Manufactured in the United States maintaining high-quality standards.

Product Description

TE Connectivity 5499922-3 AMP-LATCH Series Straight Through Hole PCB Header is engineered with 16 contacts arranged in 2 rows at a 2.54 mm pitch to deliver precise wire-to-board connectivity for electronic assemblies. The through-hole mounting and gold plated contacts ensure mechanical robustness and excellent electrical conductivity, suitable for demanding industrial and commercial environments.

This PCB header employs AMP-LATCH universal ejection style connectors with military-grade polarization options including center and dual polarization for secure and accurate mating. The product features ejector latches which provide a stable connection to IDC ribbon cable receptacles and facilitate easy disconnection without damaging the components.

The connector supports a voltage rating of 250 V and a continuous current of 1.0 A, making it ideal for a wide range of electronic equipment such as personal computers, business machines, medical instruments, data storage units, networking devices, industrial machinery controls, household appliances, and electrical test equipment.

The shrouded configuration enhances contact protection and prevents accidental misconnections. Terminated by solder, this connector guarantees secure wire retention on the PCB. Made in the United States, it adheres to stringent quality standards required by industrial and commercial users.

The connector uses through-hole mount type for high mechanical strength. Gold plating on contacts ensures durability and reliable electrical contact. Ejector latches facilitate easy, secure cable mating and removal. Designed for 250 V voltage and 1.0 A current applications.

Shrouded design maintains correct polarization and prevents mis-mating. Applicable in diverse fields including industrial controls, medical equipment, and networking.
