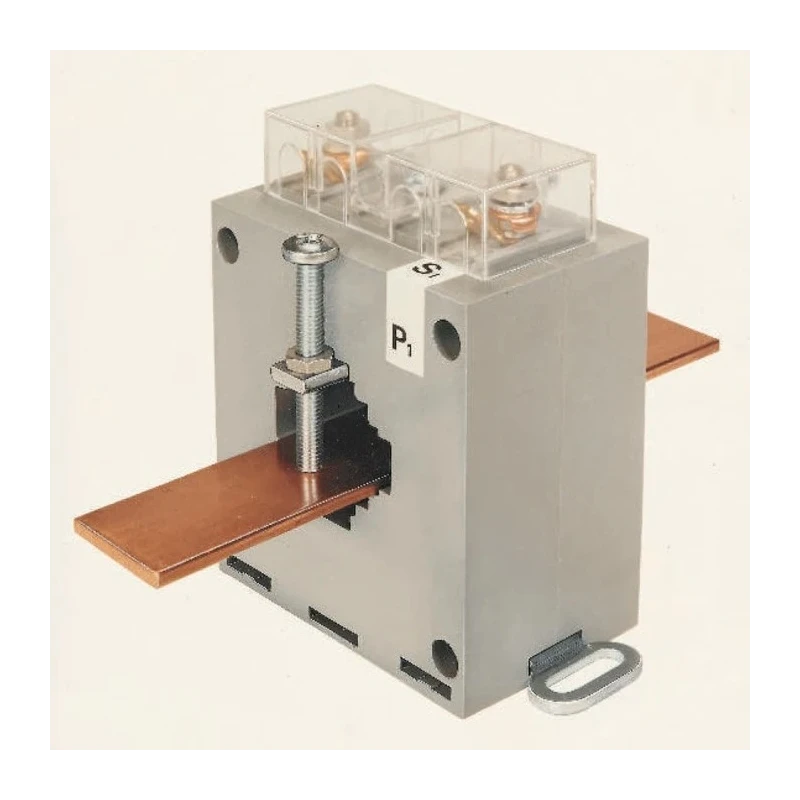

HOBUT Moulded Case Current Transformer 250 A 35mm Aperture, 2.5VA Power Consumption, Accuracy Class 120 CT174M600/5-2.5/1-001
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | HOBUT |
| Length | 95mm |
| Model | CT174M600/5-2.5/1-001 |
| Depth | 55mm |
| Width | 70mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Secondary current | 5A |
| Primary Current | 250A |
| HOBUT CT174 Series Current Transformer 500 A 40mm BoreBrand | HOBUT |
Key Features
- Operates efficiently at 50/60Hz frequency with accuracy class 120.
- Rated primary current of 250 A and secondary current of 5 A.
- Constructed with a moulded case and 35mm circular conductor aperture.
- Supports busbar mounting with apertures up to 40x10mm for type 7 bars.
- Equipped with M5 stud secondary terminals including lock washers, nuts, and terminal cover.
- Designed for operating temperature range from -30°C to +85°C ensuring durability.
- Protection rating to IP54 compliant with BS7627/IEC185 and IEC60044-1 standards.
- Manufactured in the United Kingdom and conforms to BS 3938-1973 with CE marking.
Product Description
HOBUT CT174M600/5-2.5/1-001 Moulded Case Current Transformer is designed for accurate current measurement and control in industrial, commercial, and process control applications. This model supports a primary current rating of 250 A and outputs a secondary current of 5 A with a 2.5 VA power consumption typically operating at 50/60 Hz.
Featuring a 35mm circular aperture, it is suitable for busbar mounting up to 40x10mm and type 7 bar conductors, providing flexible installation options. The unit’s secondary terminals use M5 studs with lock washers, nuts, and a terminal cover for secure and safe connections.
It withstands operating temperatures from -30°C to +85°C and offers IP54 protection ensuring reliability in harsh industrial environments. The current transformer conforms to international standards BS7627/IEC185 and IEC60044-1 and is CE-marked, meeting safety and performance requirements.
Manufactured in the United Kingdom under ISO 9001 quality standards, it includes mounting feet and captive nuts for easy and stable installation. Operates at 50/60Hz with power consumption of 2.5 VA and accuracy class 120.
Has a 35mm aperture for circular conductors and supports 40x10mm bar conductors. Features M5 stud secondary terminals with lock washers, nuts, and terminal cover. Protection rating IP54, compliant with BS7627/IEC185 and IEC60044-1 standards.
Conforms to BS 3938-1973 with CE marking in compliance with EU directives. Operating temperature range from -30°C to +85°C for reliability in various environments. Manufactured under ISO 9001 quality standards in the United Kingdom.
Supplied with base mounting feet and M5 captive nuts for secure installation.
This Current Transformer is ideal for applications in industrial automation, process control, electrical power monitoring, and HVAC systems requiring precise current measurement and safety compliance.
Explore the extensive range of HOBUT transformers and current sensors on EnvMart for various electrical and industrial applications to ensure optimal system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this current transformer is 250 A.
This model outputs a secondary current of 5 A.
The power consumption of this current transformer is 2.5 VA.
It operates efficiently at a frequency of 50/60 Hz.
The accuracy class of this model is 120.

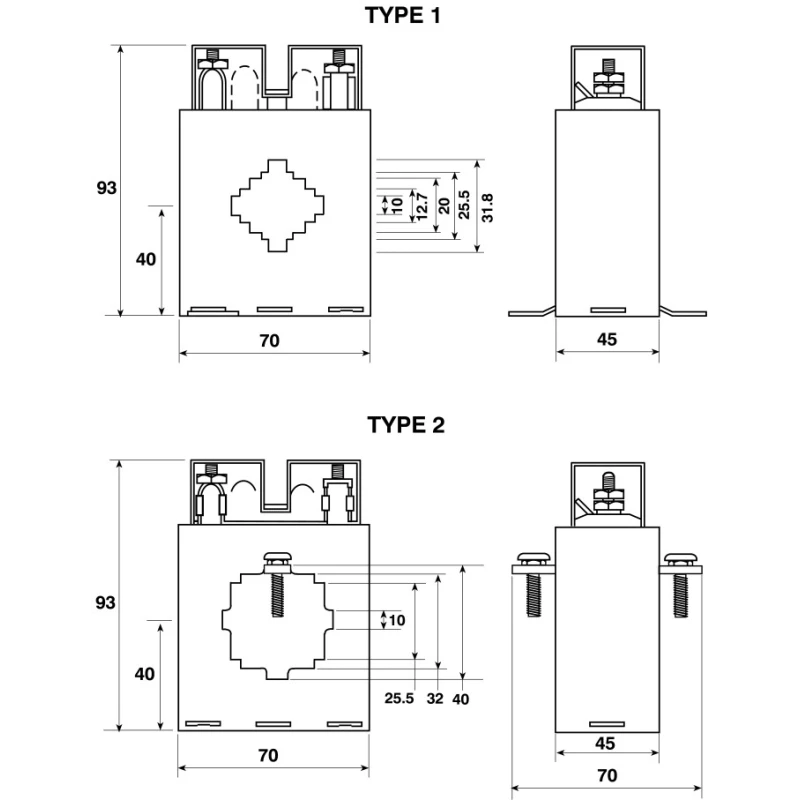

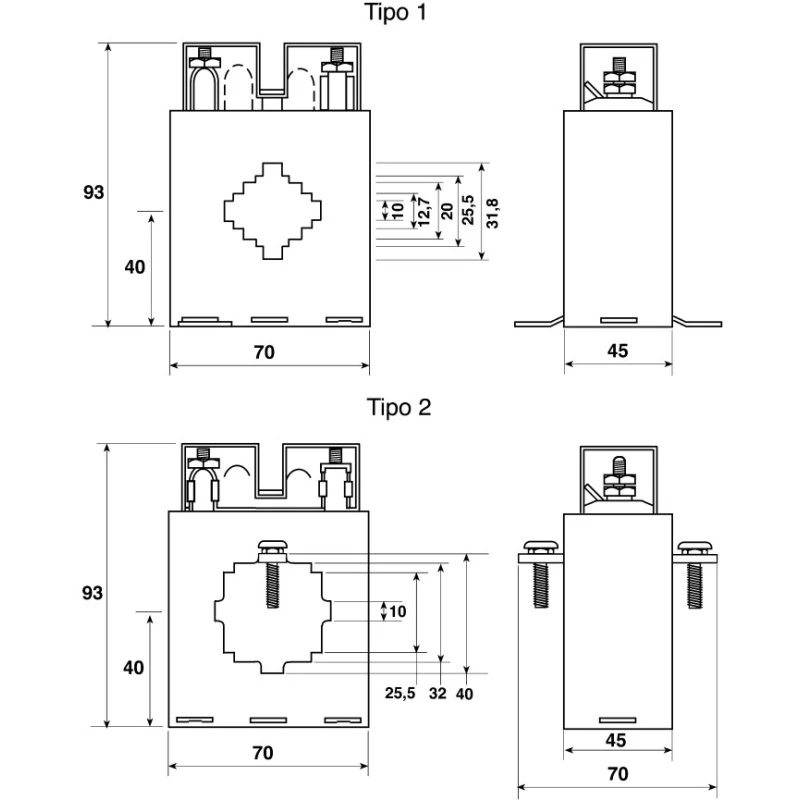

The dimensions of this current transformer are 95mm in length, 70mm in width, and 55mm in depth.
The maximum operating temperature for this unit is 85°C.
The minimum operating temperature is -30°C.
It supports busbar mounting with apertures up to 40x10mm for type 7 bars.
This current transformer has a protection rating of IP54, compliant with BS7627/IEC185 and IEC60044-1 standards.
It includes M5 stud secondary terminals with lock washers, nuts, and a terminal cover for secure connections.
This current transformer is manufactured in the United Kingdom and conforms to ISO 9001 quality standards.
