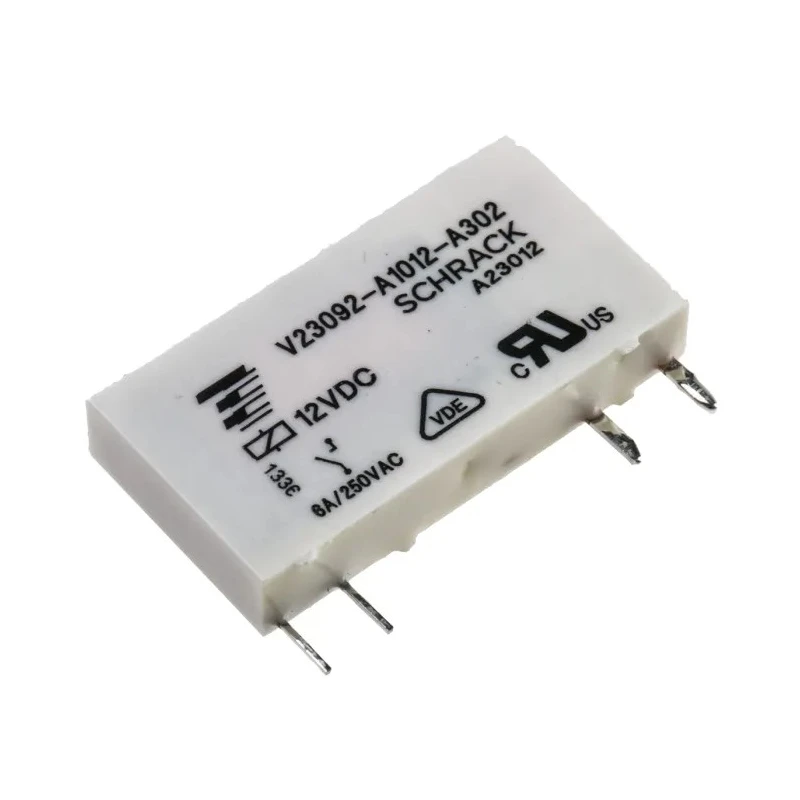

TE Connectivity PCB Power Relay, 12V DC Coil, 6A Switching Current, SPST V23092A1012A302
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |

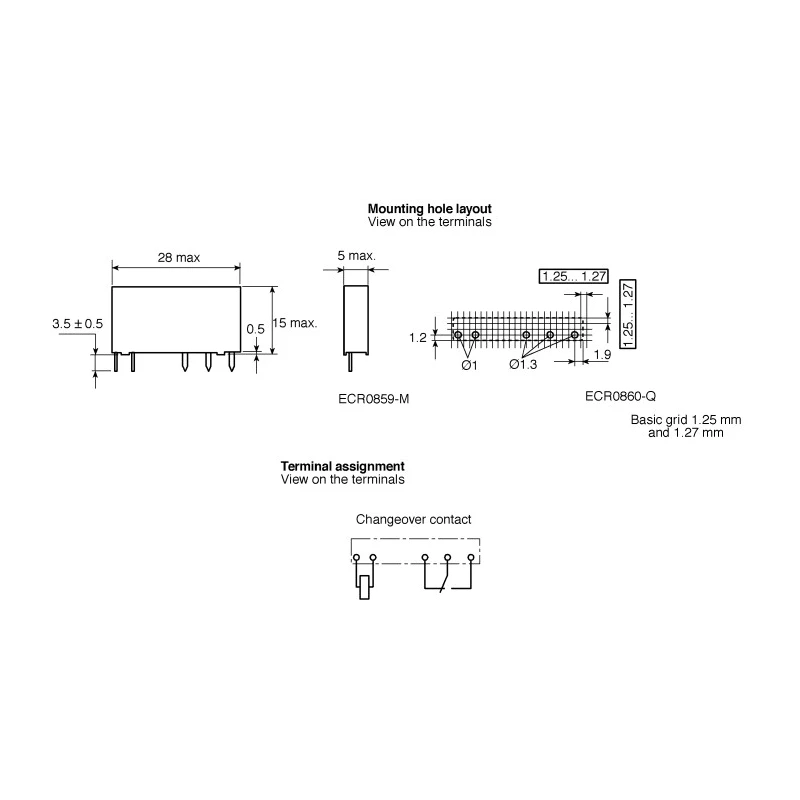

| Height | 15mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 28mm |
| Model | V23092A1012A302 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SNR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 848Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 170mW |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 170mW |
Key Features
- High coil sensitivity with a power consumption of 170mW for efficient operation.
- Compact slim design with 5mm thickness suitable for high density PCB mounting.
- SPST contact configuration ensuring reliable single-pole single-throw switching.
- Wide operating temperature range from -40°C to +85°C for harsh environments.
- Switching AC voltage up to 400V AC with a switching power rating of 1.5kVA.
- Coil resistance of 848Ω for stable electrical characteristics.
- Isolation voltage between coil and contact rated at 4000VAC for enhanced safety.
- Terminals designed for PCB solder mounting facilitating easy assembly.
Product Description
TE Connectivity V23092A1012A302 PCB Power Relay delivers reliable switching with a 12V DC coil and a 6A switching current. Featuring a single-pole single-throw (SPST) contact configuration, this relay is part of the SNR series specializing in slim, high coil sensitivity designs. Its compact dimensions - height 15mm, length 28mm, and width 5mm - allow for efficient use on high-density printed circuit boards (PCBs).
Designed for industrial, automation, and electrical applications, this power relay operates effectively over a wide temperature range from -40°C to +85°C, making it suitable for use in challenging environments. Its coil power consumption is only 170mW, ensuring energy-efficient operation without sacrificing performance. The relay boasts a coil resistance of 848Ω and maintains isolation between coil and contact rated at 4000VAC, which safeguards against electrical faults.
The relay supports switching AC voltages up to 400V and a switching power rating of 1.5kVA, providing robust contact material made from silver alloy for long-term reliability. Its solder terminal type and PCB mounting facilitate straightforward integration into various electrical circuits and devices.
This component complies with RoHS standards, illustrating a commitment to environmental and safety regulations. It is well-suited for applications in industrial automation, control systems, HVAC controls, manufacturing equipment, and other electronic systems requiring reliable power relay functionality.
High coil sensitivity with a power consumption of 170mW for efficient operation. Compact slim design with 5mm thickness suitable for high density PCB mounting. SPST contact configuration ensuring reliable single-pole single-throw switching.
Wide operating temperature range from -40°C to +85°C for harsh environments. Switching AC voltage up to 400V AC with a switching power rating of 1.5kVA. Coil resistance of 848Ω for stable electrical characteristics. Isolation voltage between coil and contact rated at 4000VAC for enhanced safety.
Terminals designed for PCB solder mounting facilitating easy assembly. Explore more products from TE Connectivity's range of Power Relays and enhance your electronic designs with proven quality components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 6A.
The coil voltage for this model is 12V DC.
It can switch AC voltages up to 400V AC.
The coil power consumption is 170mW, ensuring efficient operation.
The relay has a height of 15mm, length of 28mm, and width of 5mm.
This relay features a single-pole single-throw (SPST) contact configuration.
The isolation voltage between the coil and contact is rated at 4000VAC.
It operates effectively over a temperature range from -40°C to +85°C.
The contact material is made from silver alloy, which contributes to its reliability.
This model is designed for PCB solder mounting, facilitating easy assembly.
This relay complies with RoHS standards, reflecting its adherence to environmental regulations.
It is well-suited for industrial automation, control systems, HVAC controls, and manufacturing equipment.
