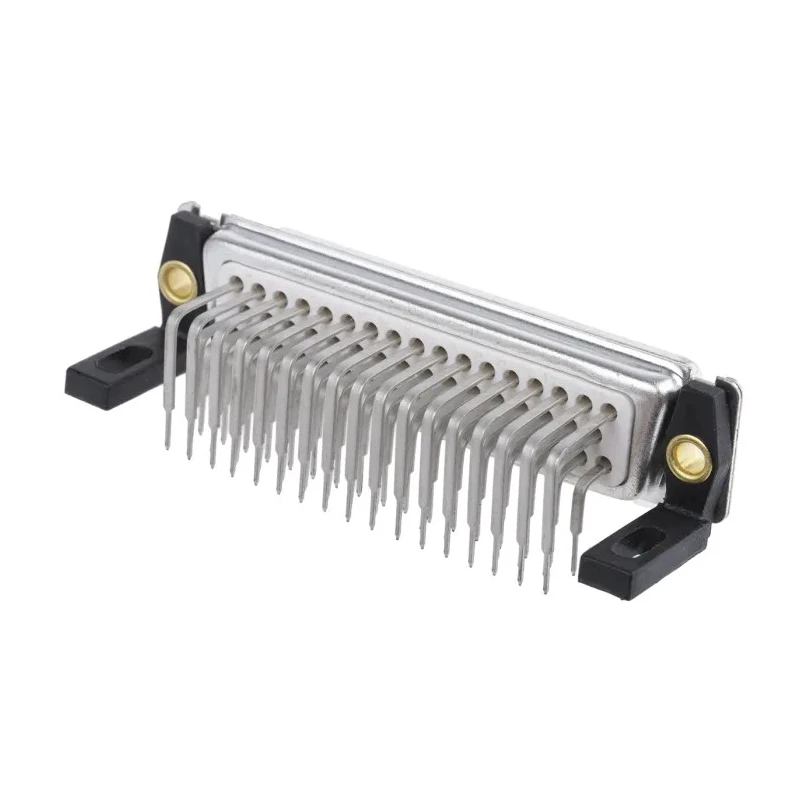

Amphenol Communications Solutions D-Sub Connector Female 50 Way Right Angle 2.76 mm Pitch Through Hole DD50S564TLF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 5A |
| Model | DD50S564TLF |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector Gender | Female |
| D-Sub Shell Size | D |
| RS PRO 50 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector FemaleBrand | RS PRO |
Key Features
- The connector features a 50-contact right angle design suitable for PCB through-hole mounting.
- It has a 2.76 mm pitch and is constructed with a steel housing for enhanced durability.
- Current rating is 5A with a voltage rating of 1 kV, supporting high-reliability circuits.
- Contact plating is gold over nickel, offering excellent conductivity and corrosion resistance.
- Operating temperature ranges from -55°C up to 125°C, suited for harsh environments.
- The connector uses solder termination with copper alloy female contacts.
- Ideal for use in industrial, telecommunications, computing, and custom PCB applications.
- Manufactured in India, this connector offers quality and reliability.
Product Description
Amphenol Communications Solutions DD50S564TLF is a high-quality female D-Sub connector designed with a 50-way right angle arrangement and 2.76 mm pitch for through-hole solder mounting.
Its robust steel housing and gold-over-nickel plated copper alloy contacts ensure both mechanical strength and excellent electrical conductivity, supporting current loads up to 5A and voltages up to 1 kV.
The connector operates reliably across a wide temperature range from -55°C to 125°C, making it suitable for challenging industrial and electronic environments.
The right angle orientation facilitates secure PCB connections with space-efficient designs, frequently used in telecommunications, data communications, computing systems, industrial controls, and other custom electronic assemblies.
This D Series connector includes mounting brackets to enhance stability on printed circuit boards. It utilizes solder termination to ensure firm and permanent electrical contacts with female gender contacts designed for reliable mating.
Manufactured in India, this product adheres to high quality standards though no formal approvals or certifications are specified. Its durable contact plating and materials assure long service life even in demanding applications.
For professionals requiring reliable PCB D-Sub connectors with precise pitch and substantial contact counts, this Amphenol Communications Solutions DD50S564TLF unit is an excellent choice.
The connector supports 50 contacts in right angle through-hole configuration. Steel housing with a copper alloy contact material ensures durability. Gold plating over nickel provides corrosion resistance and conductivity.
Voltage rating is 1kV and current rating is 5A for robust performance. Suitable for use in telecommunications, industrial controls, and computing devices. Explore EnvMart's extensive range of electronic connectors and D-Sub Connectors for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this connector is 1 kV, making it suitable for high-reliability circuits.
This model has a current rating of 5A, allowing it to handle substantial electrical loads.
The connector features a pitch size of 2.76 mm, which is designed for precise PCB mounting.
It uses solder termination, ensuring firm and permanent electrical contacts with the female contacts.
The housing is made of steel, while the contacts are copper alloy with gold plating over nickel for enhanced conductivity and corrosion resistance.
The operating temperature ranges from -55°C to 125°C, making it suitable for harsh environments.
This D-Sub connector has 50 contacts, allowing for multiple connections in a compact design.
The connector is designed with a right angle orientation, facilitating space-efficient PCB connections.
This connector is manufactured in India, adhering to high quality standards.
It is suitable for use in telecommunications, data communications, computing systems, and industrial controls.
This model features a female connector gender, designed for reliable mating with compatible connectors.
Yes, this D-Sub connector includes mounting brackets to enhance stability on printed circuit boards.
