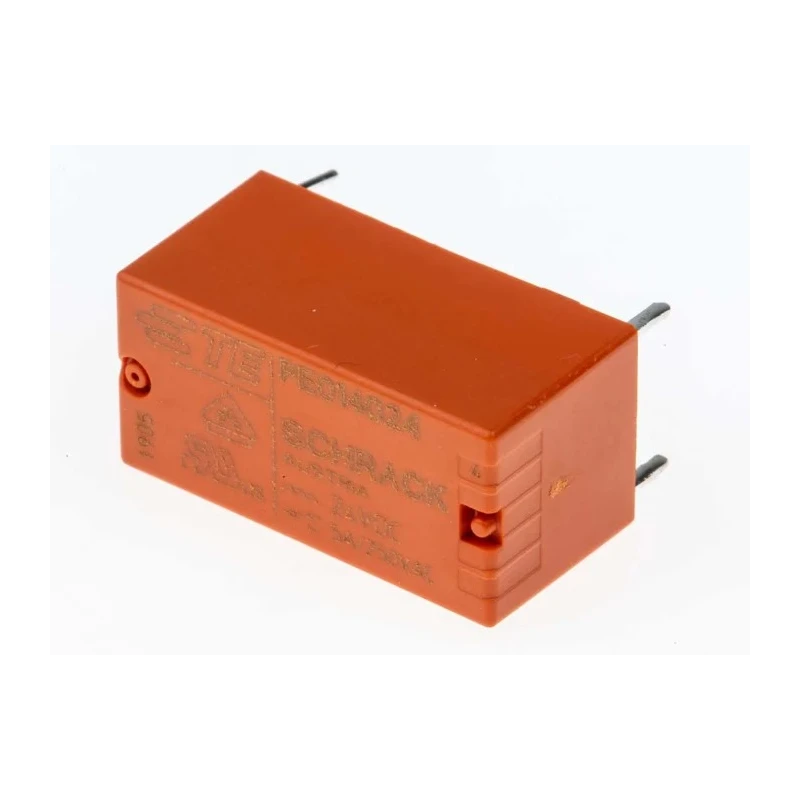

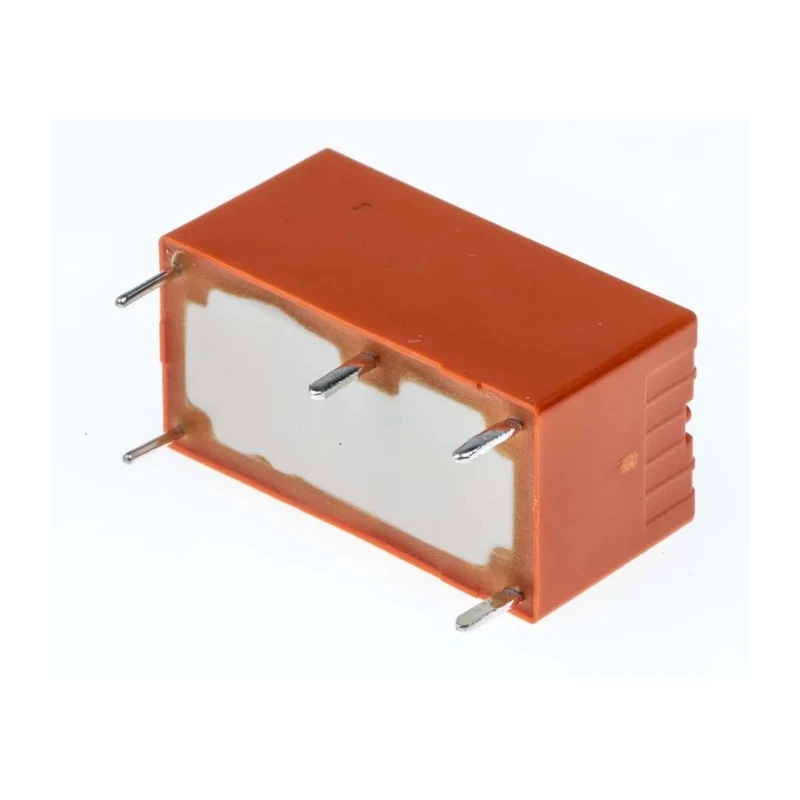

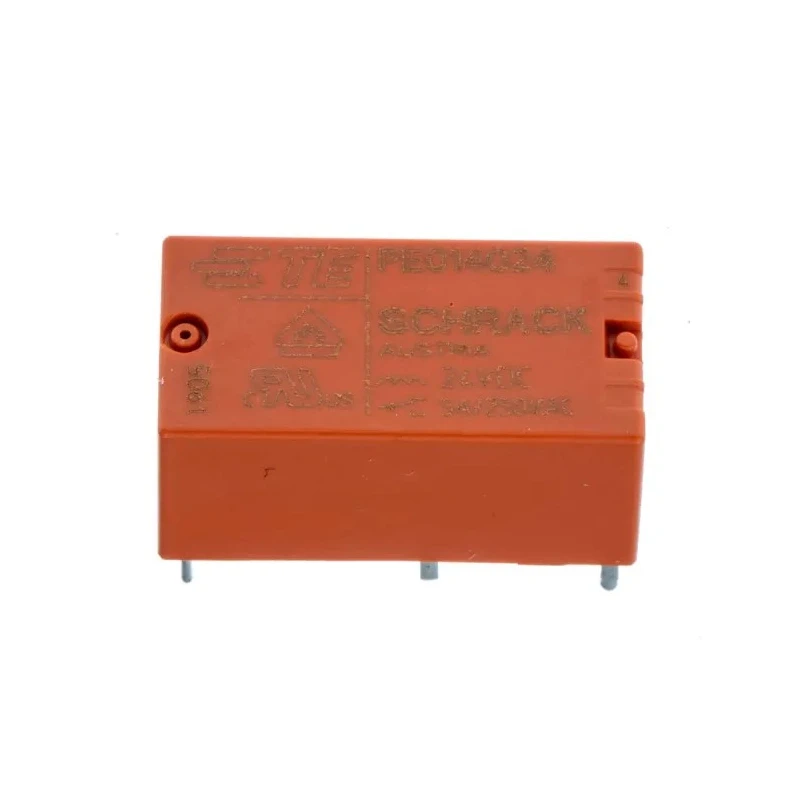

TE Connectivity PCB Power Relay 24V DC Coil 5A Switching Current SPDT PE014024

TE Connectivity PE014024 is a high-quality PCB Power Relay designed with a 24V DC coil and rated for a switching current of 5A with SPDT contact configuration. This relay is part of the PE series known for high coil sensitivity with 211mW coil power, ensuring efficient operation and low heat generation.

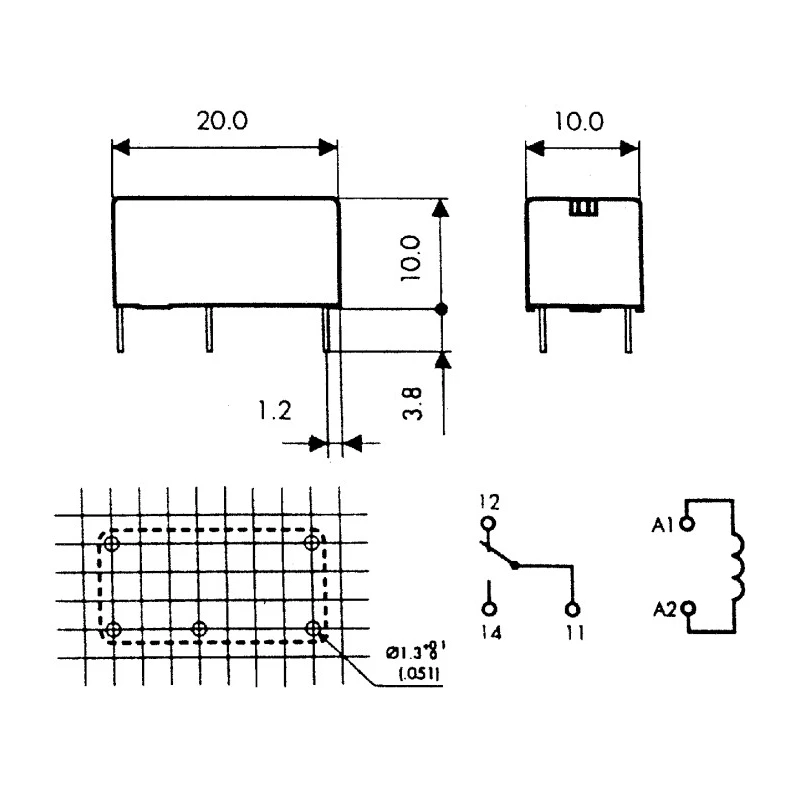

The compact relay measures 20mm in length, 10mm in width, and 10mm in height, making it suitable for space-constrained electronic or industrial applications. It features a solder terminal mount type for PCB installation, facilitating easy integration into existing circuits and manufacturing processes.

The coil resistance is specified as 2.7kΩ, which helps maintain low power consumption while delivering reliable switching performance. The relay supports a switching voltage of 400V AC and a switching power rating of 1.3kVA, making it capable of handling significant load requirements.

The contact material is Silver Nickel Alloy, offering excellent conductivity and durability. This relay is designed to operate safely across a temperature range from -40°C to 85°C, accommodating usage in extreme environmental conditions often required in industrial, manufacturing, household appliance, and control equipment applications.

It holds international safety and quality approvals including VDE, cULus, CSA, SEMKO, SEV, and OVE, assuring compliance with rigorous industry standards.

This relay is ideal for applications demanding reliable switching on printed circuit boards with sensitive coils and resilient contacts. It fits various industrial automation, control systems, and electronic device scenarios demanding robust relays.

Designed for industrial and electronic household applications. High coil sensitivity with a coil power of 211mW. Compact dimensions: 20mm length, 10mm width, and 10mm height. Coil resistance of 2.7kΩ ensuring low power consumption.

Switching voltage rated at 400V AC and switching power of 1.3kVA. Durable contact material composed of Silver Nickel Alloy. Operating temperature range from -40°C up to 85°C for harsh environments. Surface mount PCB mount type with solder terminals for easy integration.

Meets standards and approvals including VDE and cULus. Reliable single-pole double-throw (SPDT) contact configuration for versatile switching. Explore more Power Relays and electrical components in the Electronics & Electricals category on EnvMart for high-performance industrial and consumer applications.
