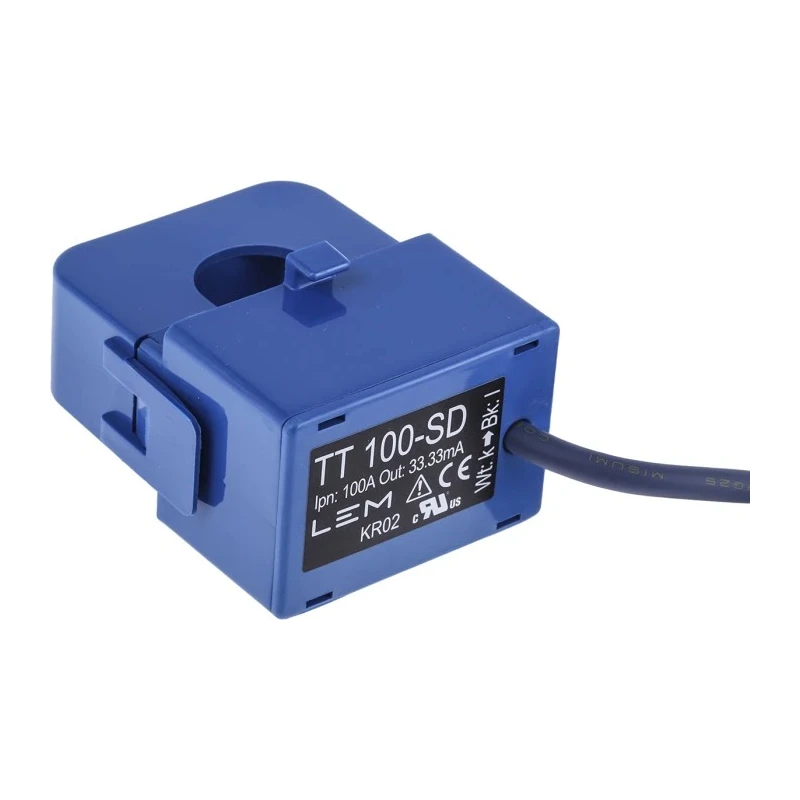

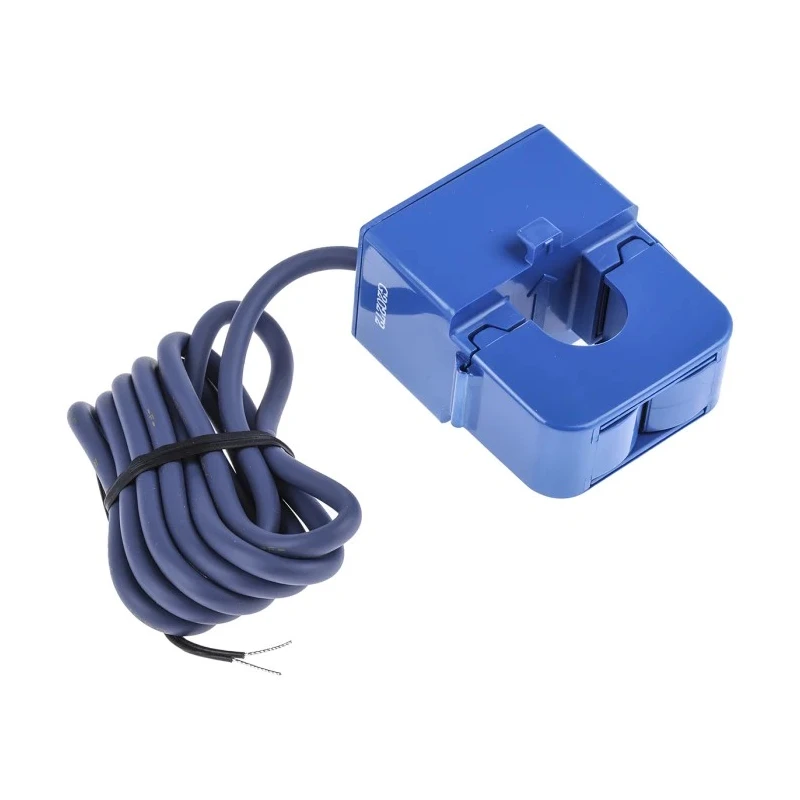

LEM TT 100-SD Series Current Transformer 100 A 16mm Bore TT 100-SD

LEM TT 100-SD Series current transformer TT 100-SD is designed for high-precision alternating current measurement with a primary current rating of 100 A and a 16mm bore diameter. This sensor features galvanic isolation between primary and secondary circuits, ensuring safe and reliable current monitoring in electrical and industrial installations.

The device operates efficiently within a temperature range of -25°C to 70°C, making it suitable for various environmental conditions. Its compact design with dimensions of 10mm length, 36.5mm depth, and 40.5mm width allows for space-saving installation. The weight of this transformer is approximately 100 grams, enabling easy handling and mounting.

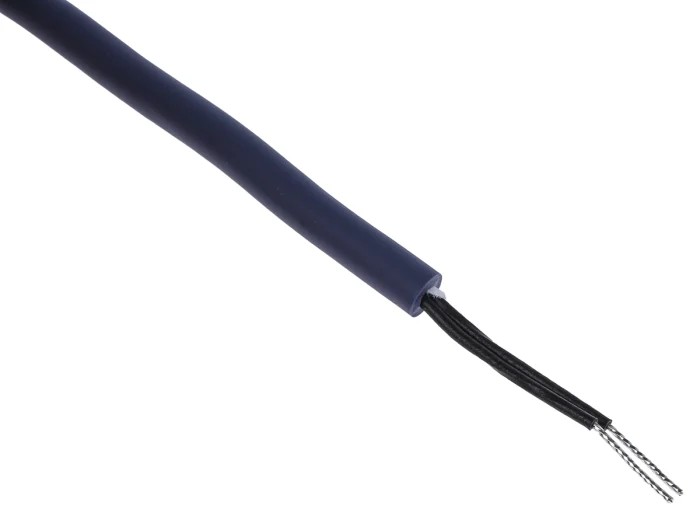

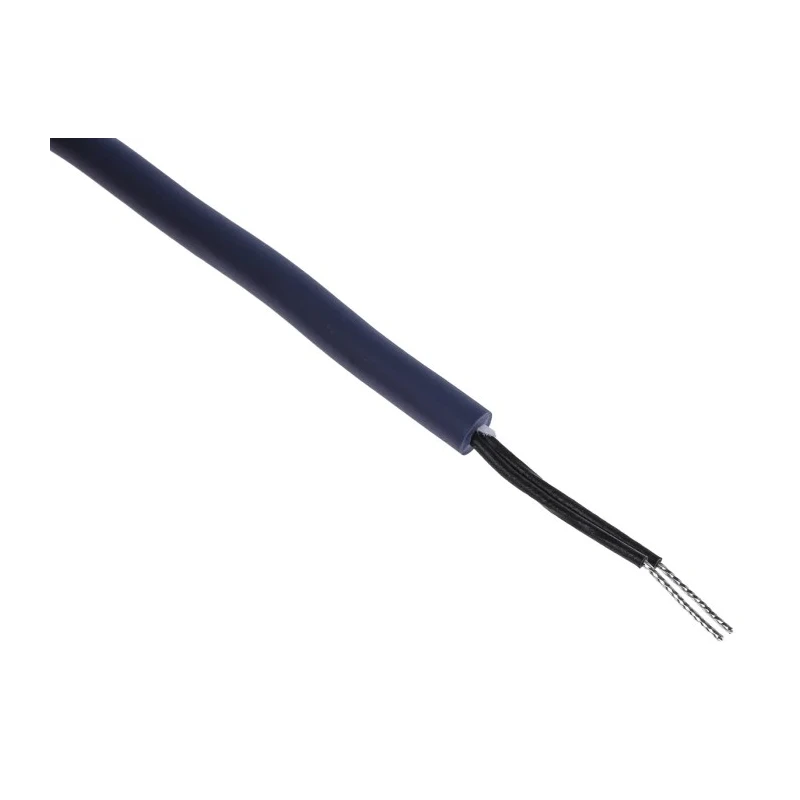

Equipped with a cable mounting type and supplied with a 1 metre pre-stripped cable, the TT 100-SD model simplifies setup and integration into existing systems. The transformer outputs a secondary current of 33.33mA, which is standard for electronic measurement and monitoring equipment.

This product complies with international safety standards including IEC 61010-1 and UL 94-V0, confirming its insulation quality and flame retardant properties. Suitable applications include active power measurement and energy consumption calculations across industrial, process control, automation, and electrical measurement sectors.

The TT 100-SD current transformer is manufactured in the Republic of Korea and adheres to stringent quality control for reliability and performance. Its robust and compact design makes it ideal for use in control gear, power monitoring, and process automation environments.

The TT 100-SD supports precise alternating current sensing for up to 100 A primary current. Galvanic isolation provides safe separation between primary and secondary circuits. Compact size and lightweight design facilitate easy installation in tight spaces.

Compliance with IEC and UL safety standards ensures durability and safety. 16mm bore diameter accommodates common conductor sizes for flexible integration. Pre-stripped cable length of 1 metre improves wiring simplicity.

Wide operating temperature range suits various industrial conditions. Manufactured in Korea, assuring quality and performance reliability. For more industrial current sensing solutions, browse the Current Transformer category on EnvMart to find compatible products and accessories suited to your application needs.
