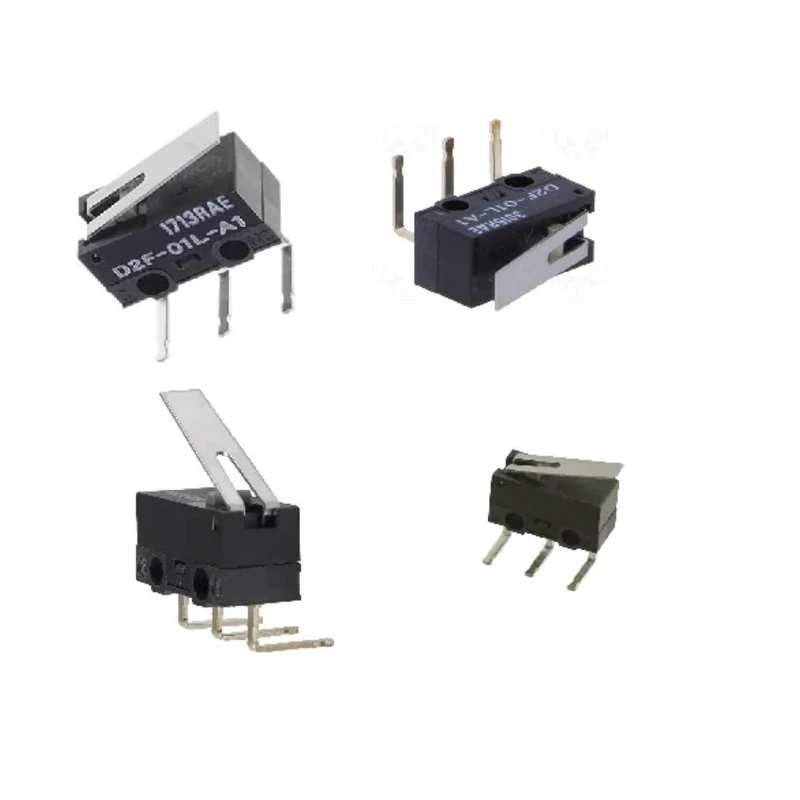

Omron Lever Micro Switch PCB Terminal, 100mA Contact Current, SPDT, IP40 Protection D2F-01L-A1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Model | D2F-01L-A1 |
| Depth | 3mm |
| IP Rating | IP40 |
| Series | D2F |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Terminal type | PCB Terminal |
| Switch Contact Current | 100mA |
Key Features
- The switch features a durable lever actuator for precise operation.
- Designed with IP40 protection, suitable for moderate protection against solids.
- This micro switch supports a contact current rating of 100mA at 30Vdc.
- It operates as ON-(OFF), OFF-(ON) in SPDT contact configuration.
- Constructed to ensure long durability using precise split springs.
- Terminals are insertion molded to prevent flux penetration during soldering.
- Applicable for high load applications requiring reliable and compact switching.
- Manufactured in Japan ensuring high-quality standards.
Product Description
Omron D2F-01L-A1 lever micro switch is a precision single-pole double-throw (SPDT) micro switch with a PCB terminal designed for reliable switching in electrical and automation systems. Rated for a contact current of 100mA at 30Vdc, it provides stable ON-(OFF), OFF-(ON) contact operation with IP40 ingress protection against solid particles.
The lever actuator mechanism incorporates two highly precise split springs to ensure long durability and consistent snap-action performance. The switch also features insertion molded terminals that prevent flux penetration during soldering, maintaining electrical reliability over the device's lifespan.
Compact in size with a depth of only 3mm, the D2F-01L-A1 model is ideal for high load applications that require space-efficient switching solutions on printed circuit boards. Additional terminal variations including left-angled and right-angled soldering terminals broaden its applicability in diverse industrial and commercial electronics environments.
Manufactured in Japan, this new micro switch is suitable for use in industrial automation, control panels, electrical equipment, and various electronic devices needing precise switching inputs with durability and performance.
The switch features a durable lever actuator for precise operation. Designed with IP40 protection, suitable for moderate protection against solids. This micro switch supports a contact current rating of 100mA at 30Vdc. It operates as ON-(OFF), OFF-(ON) in SPDT contact configuration.
Constructed to ensure long durability using precise split springs. Terminals are insertion molded to prevent flux penetration during soldering. Applicable for high load applications requiring reliable and compact switching.
Manufactured in Japan ensuring high-quality standards. Compact depth of 3mm supports use in space-constrained PCB designs. Explore a wide range of Micro Switches at EnvMart to find models suitable for your industrial, commercial, or laboratory automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a contact current rating of 100mA at 30Vdc.
It is designed with IP40 protection, providing moderate protection against solid particles.
The switch has a compact depth of 3mm, making it suitable for space-constrained PCB designs.
It features a lever actuator for precise operation.
This micro switch operates in a single-pole double-throw (SPDT) contact configuration.
The terminals are insertion molded to prevent flux penetration during soldering, ensuring electrical reliability.
This micro switch is manufactured in Japan, ensuring high-quality standards.
It is applicable for high load applications requiring reliable and compact switching in industrial automation and control panels.
It includes left-angled and right-angled soldering terminals, broadening its applicability in various electronics environments.
This model belongs to the D2F series of micro switches.
The lever actuator mechanism incorporates two highly precise split springs to ensure long durability and consistent snap-action performance.
It is designed for reliable switching in electrical and automation systems, making it suitable for various electronic devices.
