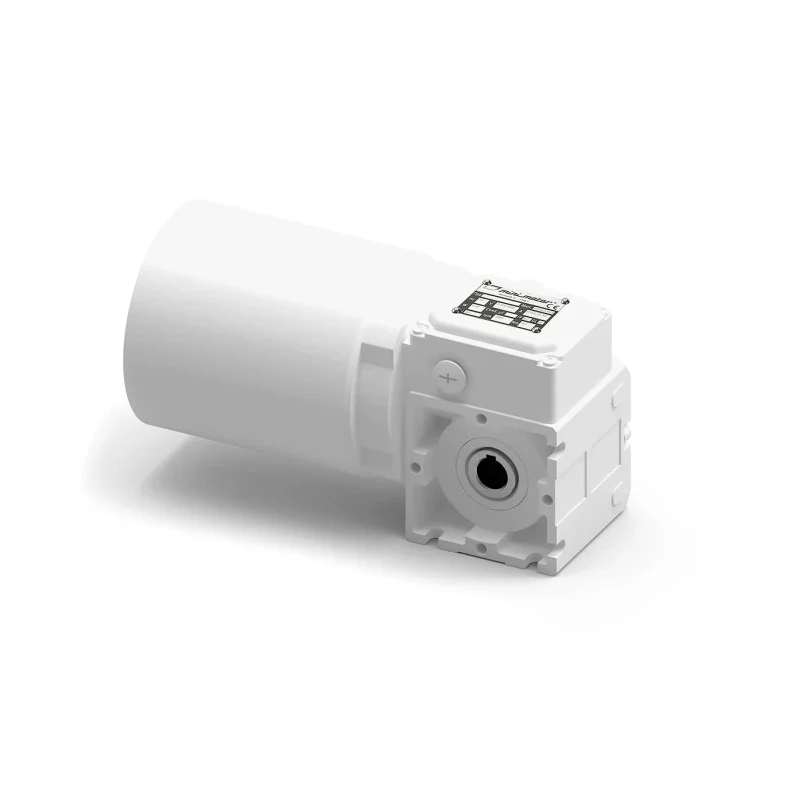

Mini Motor XCF Worm AC Geared Motor, 290 W, 2-Pole, 400V XCF5T2-5-B3
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Mini Motor |
| Material | Aluminium, Steel |
| Length | 291mm |
| Model | XCF5T2-5-B3 |
| Depth | 151mm |
| Width | 96mm |
| Motor | Asynchronous three-phase motor with 2 poles. Protection IP67 in compliance with IEC/EN 60529 standards |
| Current Rating | 1.56A |
| Series | XCF |
| Power Rating | 290W |
| Sub Type | Geared |
| Output Speed | 560rpm |
| Supply Voltage | 400V |
| Bearing Type | Roller, Ball |
| Number of Poles | 2 |
| Gear ratio | 5:1 |
| Standards/Approvals | IEC/EN 60529, RoHS |
| Maximum Output Torque | 4.4Nm |
| Gearhead Type | Worm |
| Gear Ratio5 | 1 |
Key Features
- Constructed with aluminium and steel materials for enhanced durability.
- Features an IP67 protection rating compliant with IEC/EN 60529 standards for harsh environments.
- Incorporates roller and ball bearings to minimize friction and enhance lifespan.
- Provides maximum output torque of 4.4 Nm with a rated output speed of 560 rpm.
- Compact dimensions measuring 291 mm in length, 151 mm depth, and 96 mm width.
- Suitable for industrial applications requiring high reliability and resistance to dirt and contaminants.
Product Description
Mini Motor XCF5T2-5-B3 is a worm AC geared motor designed for demanding industrial environments, offering 290 W power with a 2-pole asynchronous three-phase motor configuration operating at 400V.
The motor features an IP67 protection rating according to IEC/EN 60529, ensuring robust performance under harsh conditions. Its white epoxy protective coating further protects the unit from dirt and moisture intrusion.
The gear unit is housed in a die-cast aluminium casing with wheel rims made from special bronze hardened to 120/160 HB. The worm gear is constructed from hardened steel and rotates on combined ball and roller bearings, enhancing durability and operational smoothness.
The output shaft is made of stainless steel, lubricated with special long-lasting oil, and employs sealing rings designed for high temperatures. The motor delivers a maximum output torque of 4.4 Nm and an output speed of 560 rpm, suitable for precise and reliable torque requirements.
Its compact size (291 mm length, 151 mm depth, 96 mm width) allows easy installation in constrained spaces. This geared motor supports various industrial sectors including automation, electrical machinery, manufacturing, and HVAC systems.
Equipped with a worm gearhead type and gear ratio of 5:1 for optimized torque transmission. Aluminium and steel construction ensures mechanical strength and longevity. IP67 rated protection for operation in dirty or wet environments.
Roller and ball bearings reduce maintenance and increase operational life. White epoxy coating prevents dirt accumulation and protects against corrosion. Compliance with IEC/EN 60529 standards guarantees international quality and safety.
This Mini Motor product is ideal for industrial, manufacturing, automation, and control gear applications requiring compact and efficient geared motor solutions. Explore related AC motors and Geared Motors in the EnvMart catalog for compatible products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Mini Motor XCF5T2-5-B3 has a power rating of 290 W.
It delivers a maximum output torque of 4.4 Nm.
The output speed of this model is 560 rpm.
This model uses an asynchronous three-phase motor with 2 poles.
The gear ratio of the XCF5T2-5-B3 is 5:1.
The motor is constructed with aluminium and steel materials.
It has an IP67 protection rating in compliance with IEC/EN 60529 standards.
The dimensions are 291 mm in length, 151 mm in depth, and 96 mm in width.
It incorporates roller and ball bearings to minimize friction and enhance lifespan.
This geared motor is suitable for industrial applications including automation, electrical machinery, manufacturing, and HVAC systems.
The country of origin for this model is Italy.
It complies with IEC/EN 60529 and RoHS standards.
