Nexperia 1.43 V Zener Diode, Single, 365 mW, 5% Voltage Tolerance, Surface Mount 2-Pin DFN1006BD-2 BZX8850S-C4V3YL

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 1.43 V Zener Diode, Single, 365 mW, 5% Voltage Tolerance, Surface Mount 2-Pin DFN1006BD-2 BZX8850S-C4V3YL

Name: Nexperia 1.43 V Zener Diode, Single, 365 mW, 5% Voltage Tolerance, Surface Mount 2-Pin DFN1006BD-2 BZX8850S-C4V3YL
Brand: Nexperia
SKU: 115468
Price: 0.06 USD
Availability: InStock



Category Zener Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.47mm
Length	1mm
Model	BZX8850S-C4V3YL
Mount Type	Surface
Series	BZX8850S
Maximum Operating Temperature	150°C
Working voltage range	nominal 1.8 V to 75 V
Package Type	DFN1006BD-2
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	365mW
Diode Configuration	Single
Test Current It	50μA
Maximum Reverse Leakage Current	4μA
Nominal Zener Voltage Vz	4.3V
Zener Type	Voltage Regulator
Maximum Zener Impedance	600Ω
Typical Voltage Temperature Coefficient	-2.7mV/K

Key Features

Nominal Zener voltage of 4.3 V with ±5% tolerance.
Maximum power dissipation of 365 mW suitable for low power applications.
Surface-mount package type DFN1006BD-2 with a small form factor.
Low test current of 50 μA optimizes performance for portable devices.
Maximum operating temperature of 150°C for reliable operation.
Compliance with automotive standard AEC-Q101 ensuring quality for automotive use.
Typical voltage temperature coefficient of -2.7 mV/K for stable operation over temperature.
Minimal leakage current and impedance for efficient voltage regulation.

Product Description

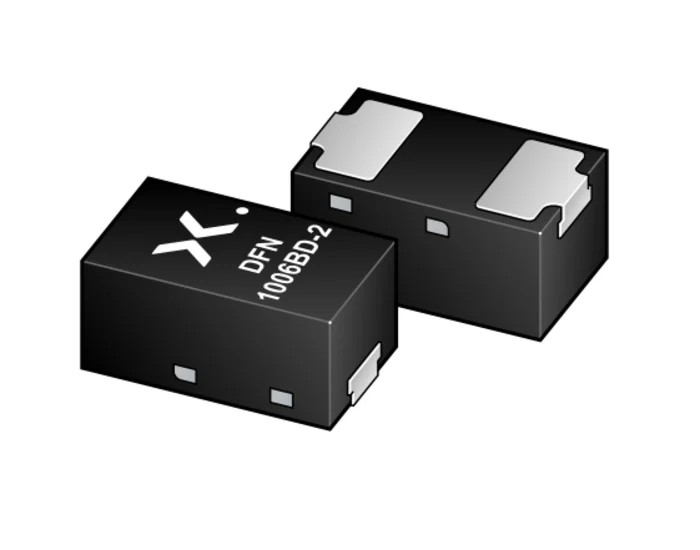

Nexperia BZX8850S-C4V3YL is a high-quality single Zener diode designed primarily for low current voltage regulation applications. It comes in a compact surface mount DFN1006BD-2 (SOD882BD) package featuring side-wettable flanks, facilitating automated PCB assembly with enhanced reliability.

This diode has a nominal Zener voltage of 4.3 V with a tolerance of ±5%, making it ideal for precision voltage regulation in portable and low bias circuits. Its maximum power dissipation rating of 365 mW supports durable performance under low power conditions.

The device operates efficiently at a low test current of 50 μA and provides a maximum operating temperature of 150°C, ensuring stability across a wide temperature range. Its typical voltage temperature coefficient of -2.7 mV/K aids consistent regulation in varying thermal environments.

This Zener Diode features a low maximum reverse leakage current of 4 μA and maximum Zener impedance of 600 Ω, optimizing energy efficiency in circuits. Its miniature form factor with dimensions of 1 mm length and 0.47 mm height allows for space-saving PCB layouts in compact electronic assemblies.

Certified to automotive standard AEC-Q101, the diode is suitable for use in automotive electronic systems, enhancing reliability under harsh conditions. Applications include voltage regulation in electronic components, power supplies, semiconductor circuits, and portable battery-powered devices.

Nominal Zener voltage: 4.3 V ±5% tolerance. Maximum power dissipation: 365 mW. Package: DFN1006BD-2 surface mount, 2-pin. Test current: 50 μA. Operating temperature range: -55°C to 150°C. Voltage temperature coefficient: -2.7 mV/K.

Maximum reverse leakage current: 4 μA. Small package size for compact PCB integration. Automotive standard compliant (AEC-Q101). Working voltage range: nominal 1.8 V to 75 V.

This component is essential for industrial, automotive, and portable electronic applications requiring robust, precise voltage regulation. Explore related semiconductor components and voltage regulator diodes in EnvMart's extensive electronics category for comprehensive sourcing solutions.
