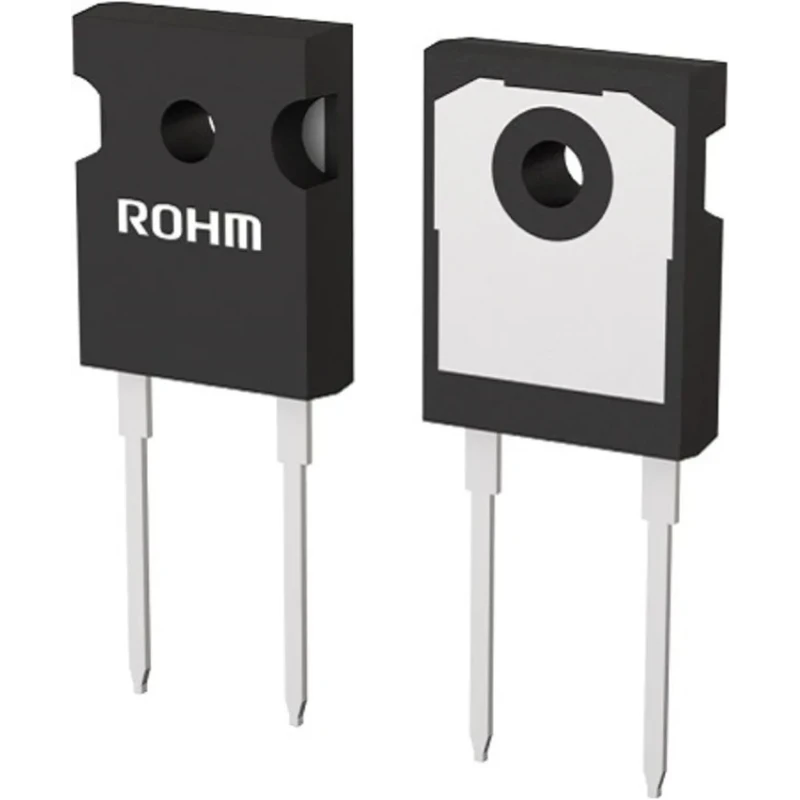

ROHM Epitaxial Planar Single 30 A 650 V 2-Pin TO-247GE-2L Ultra Fast Recovery Diode RFS30TZ6SGC13

ROHM RFS30TZ6SGC13 epitaxial planar single diode is an ultra-fast recovery silicon diode designed for advanced electronic applications. It efficiently handles a maximum forward current of 30 A and supports a maximum peak reverse voltage of 650 V. Packaged in a compact and robust TO-247GE-2L through-hole mount, it is suited for high reliability circuits requiring fast switching times.

This diode is ideal for general rectification use and power factor correction (PFC) in continuous current mode, making it suitable for power supplies, industrial automation, and electronic control systems. Its ultra-soft recovery characteristic minimizes switching losses and electromagnetic interference.

The diode features a maximum forward voltage drop of 2.3 V which helps in efficient power dissipation. It operates reliably in a wide temperature range from -55°C to 175°C, enhancing its suitability for harsh industrial environments.

With a peak non-repetitive forward surge current rating of 160 A, it can tolerate occasional high current spikes, ensuring durability and operational safety.

Physically, the device measures 21.25 mm in height, 5.22 mm in width, and 16.24 mm in length, providing a compact form factor that fits various electronic designs. It is compliant with RoHS environmental standards and meets the AEC-Q101 automotive qualification, proving its robustness for automotive as well as industrial applications.

Ultra low switching loss and high current overload capacity enable efficient and robust performance. Designed for through hole mounting in electronic circuits. Ideal for rectification and continuous current mode power factor correction.

Wide temperature operating range supports industrial and automotive environments. Peak reverse recovery time of 35 ns supports high-frequency switching applications. Compact TO-247GE-2L package supports reliable mechanical mounting and heat dissipation.

Compliance with RoHS and AEC-Q101 ensures environmental safety and automotive reliability. This diode is a reliable choice for engineers designing power electronics, industrial machinery, and automotive systems requiring high efficiency and fast Switching Diodes.
