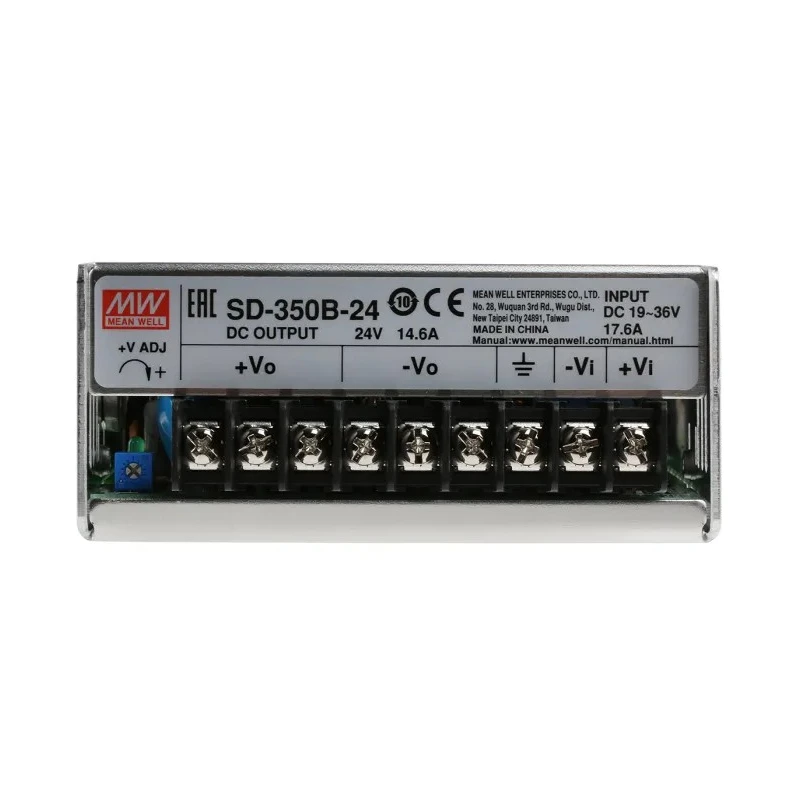

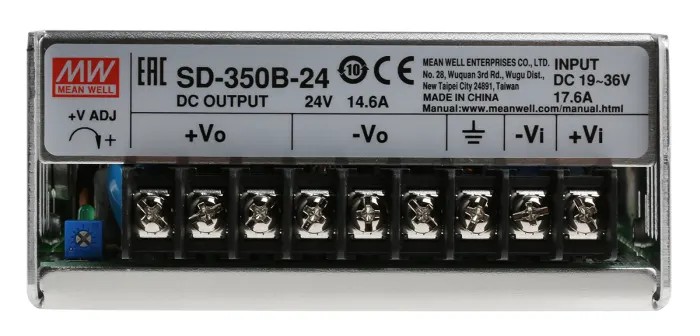

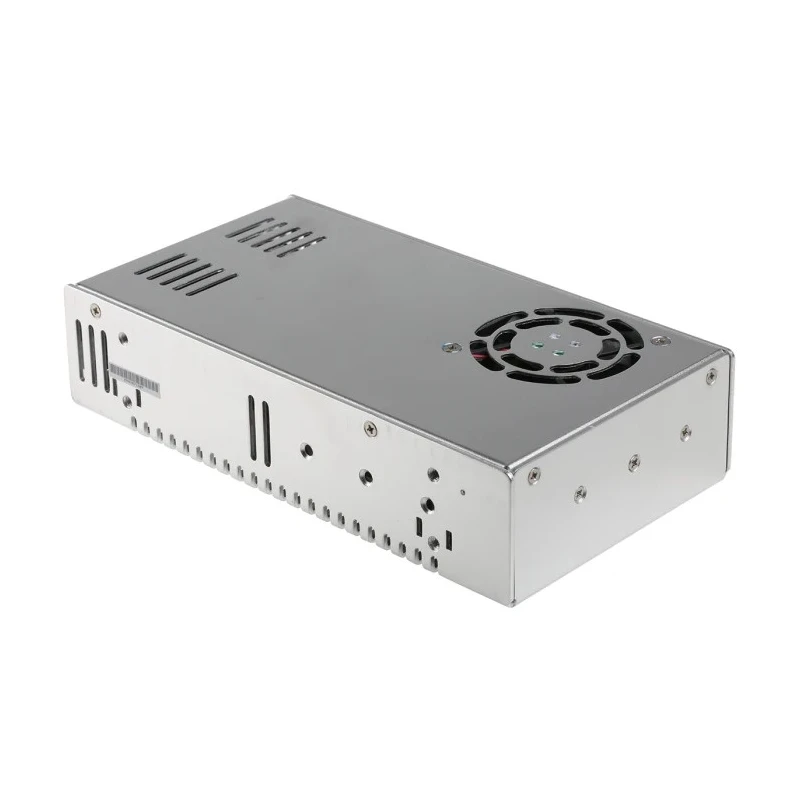

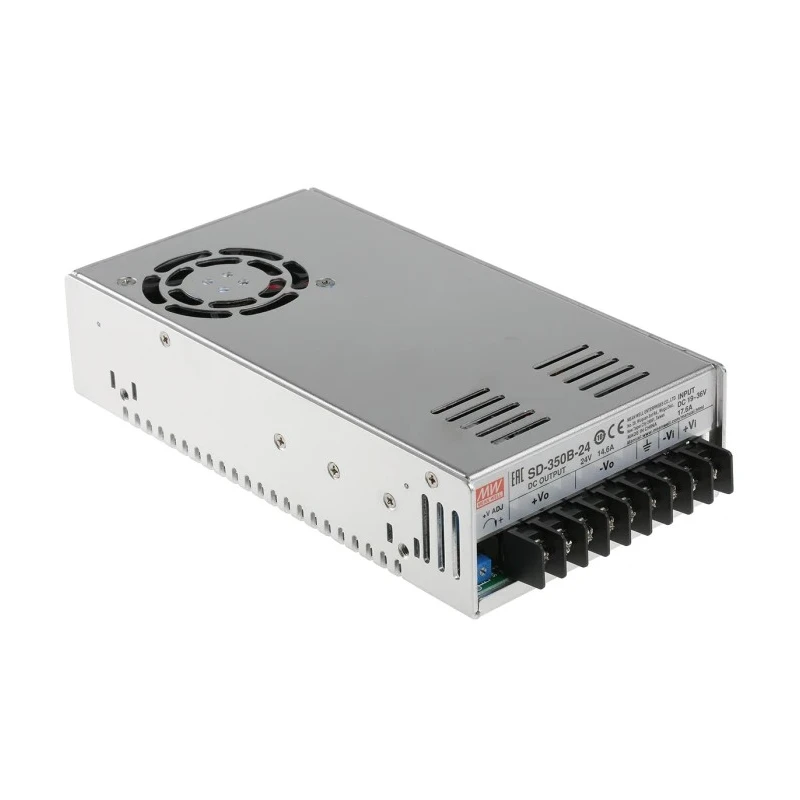

MEAN WELL SD-350B-24 DC/DC Converter, 24V DC Output, 36V DC Maximum Input, 350.4W Power, Chassis Mount SD-350B-24
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL SD-350 DC/DC Converter, 24V dc/, 36V dc |
| Brand | MEAN WELL |
| Efficiency | 80% |
| Length | 215mm |
| Model | SD-350B-24 |
| Depth | 50mm |
| Gross Weight | 1.1kg |
| Width | 115mm |
| Mount Type | Chassis Mount |
| Series | SD-350 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| MTBF | 209400h |
| Number of outputs | 1 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 350.4W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | EN/IEC |
| Minimum Input Voltage | 19V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 0A |
| Output Voltage Adjustment Range | 30 V |
| Isolation Voltage | 1.5kV ac |
| Output Current 2 | 14.6A |
| Input Ratio | 2:1 |
| Wide 2 | 1 input voltage range |
Key Features
- The converter operates efficiently at 80% efficiency.
- Maximum output current rating is 14.6A with a power output of 350.4W.
- Provides 1.5kV AC isolation between input and output for enhanced safety.
- Includes protection against short circuit, overload, and overvoltage situations.
- Compact chassis mount design with dimensions 215mm x 115mm x 50mm.
- Ripple and noise are kept low at 150mV peak-to-peak to ensure signal integrity.
- Operating temperature range from -20°C to 60°C for diverse environmental use.
- MTBF (Mean Time Between Failures) rated at 209,400 hours for high reliability.
Product Description
MEAN WELL SD-350B-24 is a high reliability DC/DC converter designed for industrial and commercial power conversion applications requiring a regulated 24V DC output. This chassis mount converter supports a wide input voltage range of 19V to 36V DC (2:1 ratio), making it suitable for systems with variable DC input supply voltages.
With a maximum output power capacity of 350.4W and output current up to 14.6A, it effectively drives demanding loads while maintaining 80% efficiency.
The unit features robust safety functions including short circuit, overload, and overvoltage protection, with 1.5kV AC isolation between input and output circuits to enhance system safety and interference resilience.
Its low ripple and noise level (150mV peak-to-peak) ensures high quality power output critical for sensitive electronics. The compact chassis mount form factor with dimensions of 215mm length, 115mm width, and 50mm depth integrates easily into industrial cabinets and equipment racks.
Certified to EN/IEC standards and equipped with an LED power-on indicator, it also supports continuous operation in temperatures from -20°C up to 60°C with proper derating. This converter is widely used in industrial automation, telecommunications, instrumentation, and power supply modules where regulated and reliable DC power is mandatory.
The converter operates efficiently at 80% efficiency. Features a wide input voltage range from 19V to 36V DC. Maximum output current of 14.6A for demanding load requirements. Robust protection including short circuit, overload, and overvoltage protection.
Compact chassis mount design with easy screw terminal installation. 1.5kV isolation to reduce electrical noise and improve safety. Industrial-grade reliability with an MTBF of over 200,000 hours. Operating temperature range suitable for various industrial environments.
Complies with EN/IEC safety and electromagnetic compatibility standards.
EnvMart offers comprehensive selections of industrial DC/DC Converters like this MEAN WELL SD-350B-24 model suitable for high-reliability power applications in manufacturing, laboratory instrumentation, and advanced electronic systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 350.4W.
It supports a wide input voltage range from 19V to 36V DC.
The converter operates at an efficiency of 80%.
The maximum output current is 14.6A.
The dimensions are 215mm in length, 115mm in width, and 50mm in depth.
It features a chassis mount design for easy installation.
It includes protection against short circuit, overload, and overvoltage situations.
The operating temperature range is from -20°C to 60°C.
The ripple and noise are kept low at 150mV peak-to-peak.
It provides 1.5kV AC isolation between input and output.
It is certified to EN/IEC standards for safety and electromagnetic compatibility.
The MTBF is rated at 209,400 hours.
