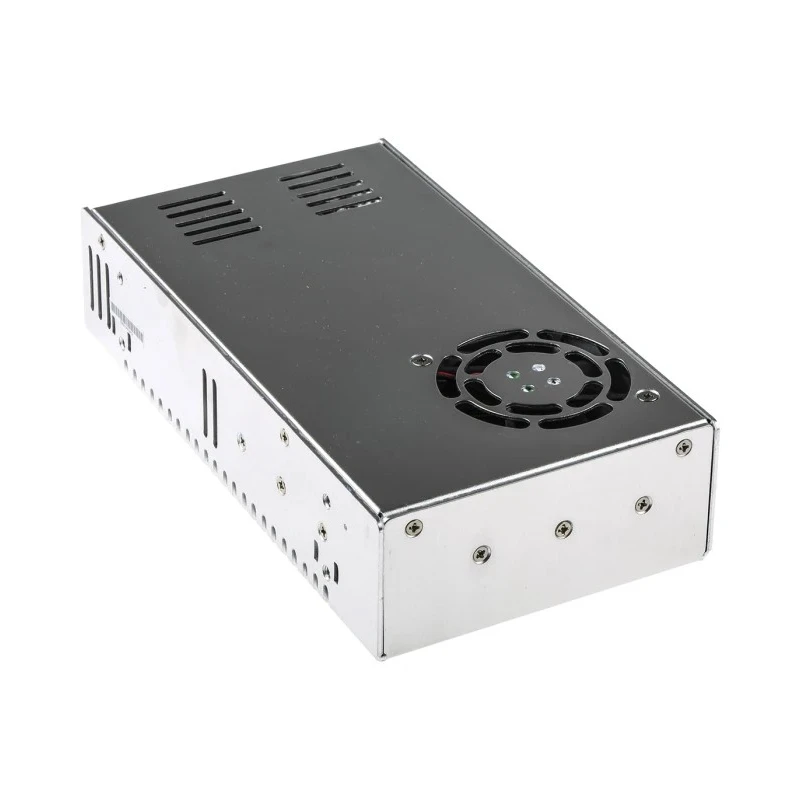

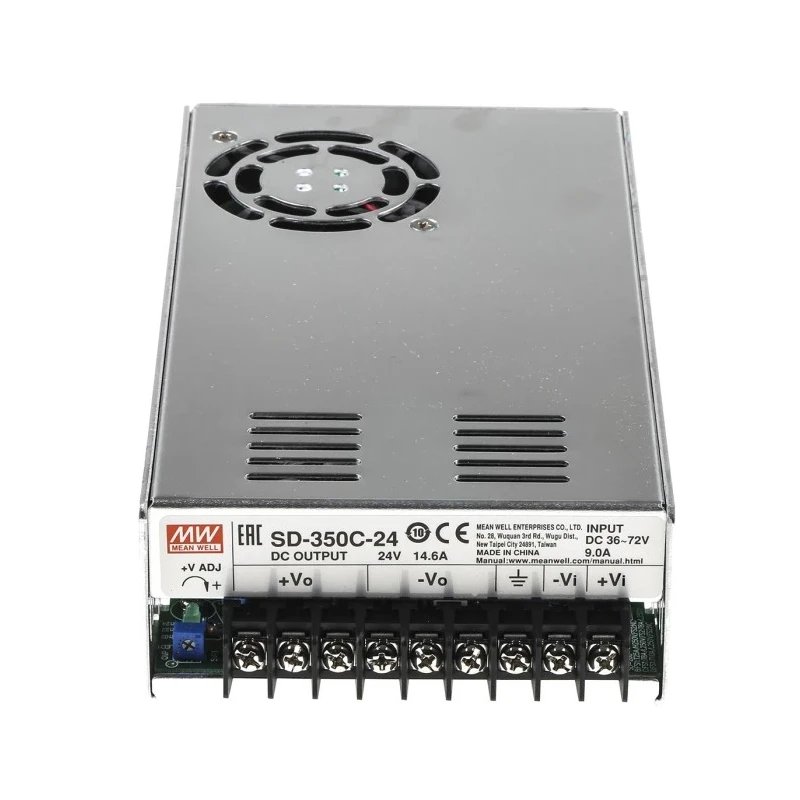

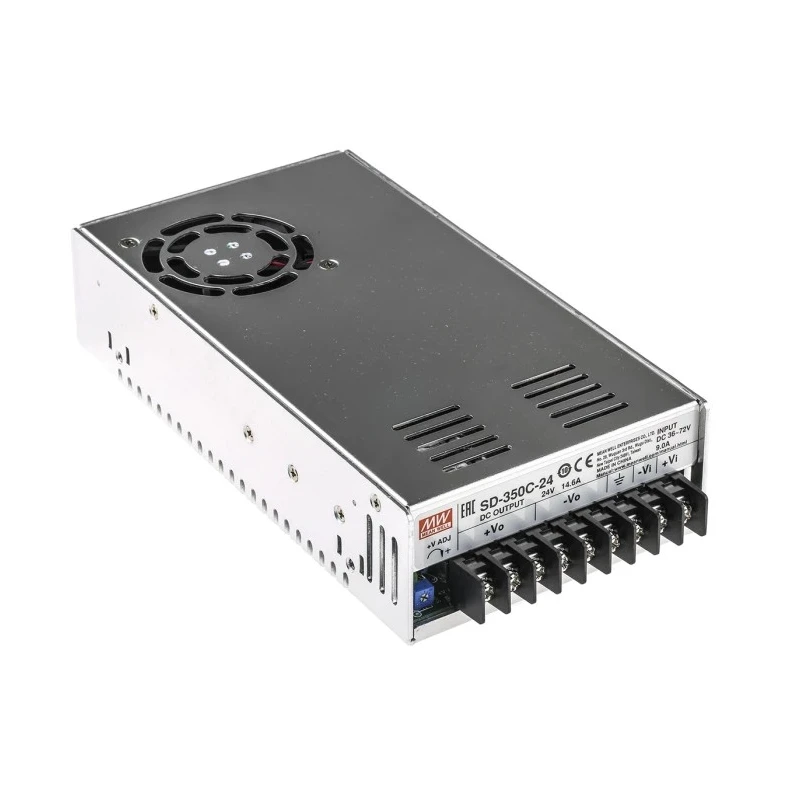

MEAN WELL SD-350 Single Output Regulated Isolated DC/DC Converter 24V DC Output 350.4W 72V DC Max Input SD-350C-24
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL SD-350 DC/DC Converter, 24V dc/, 72V dc |
| Brand | MEAN WELL |
| Efficiency | 81% |
| Length | 215mm |
| Model | SD-350C-24 |
| Depth | 50mm |
| Gross Weight | 1.1kg |
| Width | 115mm |
| Mount Type | Chassis Mount |
| Series | SD-350 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| MTBF | 209400h |
| Number of outputs | 1 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 350.4W |
| Maximum Input Voltage | 72V dc |
| Standards/Approvals | EN/IEC |
| Minimum Input Voltage | 36V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 0A |
| Output Voltage Adjustment Range | 30 V |
| Isolation Voltage | 1.5kV ac |
| Output Current 2 | 14.6A |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input voltage range |
Key Features
- Provides a 24V DC output voltage with a maximum output power of 350.4W.
- Chassis mount design facilitates easy installation and secure mounting.
- Operating temperature range from -20°C to 60°C supports varied environments.
- Features short circuit, overload, and overvoltage protection for durability.
- High isolation voltage of 1.5kV AC guarantees electrical safety between input and output.
- Low ripple and noise with 150mV peak-to-peak enhance output signal quality.
- Output voltage adjustment range of 30V allows customization for specific applications.
- LED power-on indicator provides visual status of operation.
Product Description
MEAN WELL SD-350C-24 DC/DC Converter is a single output, enclosed, regulated, isolated power module providing 24V DC output at 350.4W maximum power. It is designed for industrial, electronic, and power supply applications requiring robust and efficient voltage conversion.
This converter offers a wide 2:1 input voltage range from 36V to 72V DC, allowing flexibility in power input sources. Its chassis mount form factor makes it suitable for secure installation in control panels and industrial racks.
Engineered with protection features including short circuit, overcurrent, and overvoltage safeguards, the device ensures operational safety and reliability. The 1.5kV AC isolation voltage protects sensitive electronics from electrical noise and surge damage.
Operating reliably within a temperature range from -20°C to 60°C, it meets EN/IEC standards for electromagnetic compatibility, making it suitable for various industrial environments including manufacturing, automation, telecommunications, and power management systems.
Additional features include adjustable output voltage up to 30V, LED indicators for operational status, and low ripple noise levels ensuring clean power output.
Overall, the MEAN WELL SD-350C-24 DC/DC Converter is an efficient and durable solution for powering industrial equipment requiring stable 24V DC supply with high power capacity and reliability.
Wide input voltage range from 36V to 72V DC ensures stable performance. Chassis mount type allows easy and secure installation. Protection against short circuit, overload, and overvoltage conditions. High isolation voltage of 1.5kV AC enhances safety.
LED power-on indicator provides visual confirmation of status. MTBF of 209400 hours for dependable long-term operation. Compact dimensions: 215mm length, 115mm width, and 50mm depth. Operating temperature range of -20°C to 60°C suits harsh industrial environments.
Complies with EN/IEC standards for electromagnetic compatibility. Explore MEAN WELL products and DC/DC Converters at EnvMart for reliable, high-performance industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 350.4W.
It has a wide input voltage range from 36V to 72V DC.
This unit provides a 24V DC output voltage.
The dimensions are 215mm in length, 115mm in width, and 50mm in depth.
It features a chassis mount design for easy and secure installation.
It includes short circuit, overload, and overvoltage protection for enhanced safety.
The operating temperature range is from -20°C to 60°C.
It has a high isolation voltage of 1.5kV AC.
The ripple and noise level is 150mV peak-to-peak.
The efficiency of this model is rated at 81%.
The MTBF for this converter is 209,400 hours.
It is designed for industrial, electronic, and power supply applications requiring robust voltage conversion.
