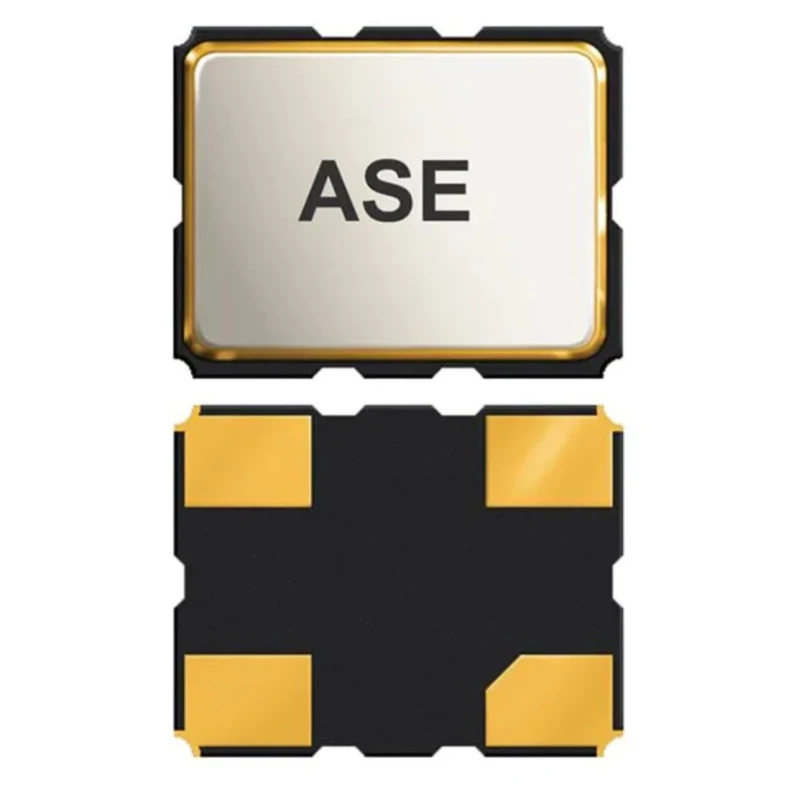

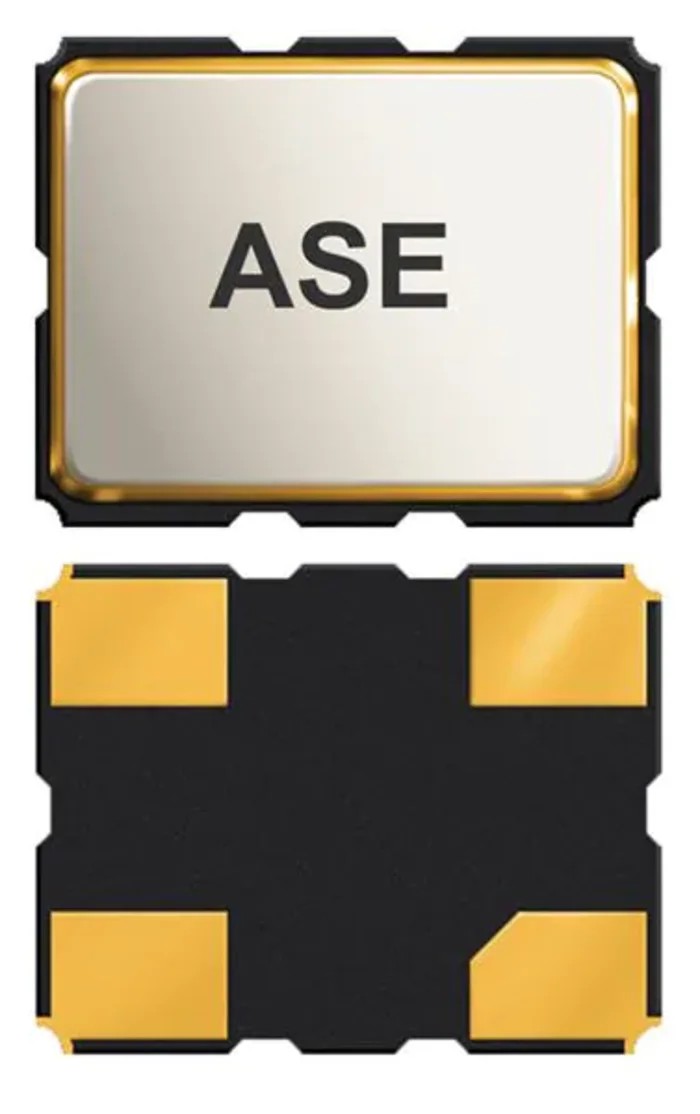

Abracon 27MHz Crystal Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASE-27.000MHZ-LC-T

Name: Abracon 27MHz Crystal Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASE-27.000MHZ-LC-T
Brand: Abracon
SKU: 114700
Price: 1.82 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.2mm
Length	3.2mm
Model	ASE-27.000MHZ-LC-T
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ASE
Maximum Operating Temperature	85°C
Output Frequency	27MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.47V
Minimum Supply Voltage	3.14V
Oscillator Type	Crystal Oscillator
Output Level	CMOS

Key Features

Oscillator type is Crystal Oscillator with ±50 ppm frequency stability.
Outputs CMOS level signals suitable for integration into digital circuits.
Operates with supply voltage ranging from 3.14V minimum to 3.47V maximum.
Compact surface mount package with 4 pins, measuring 3.2mm length by 2.5mm width and 1.2mm height.
Wide operating temperature range from -40°C to 85°C for industrial and commercial use.
Designed for low power consumption and RoHS compliance for environmentally safe manufacturing.
Packaging is tape and reel format facilitating automated PCB assembly.
The ASE series is ideal for wireless communication, laptops, CCD clocks, PDAs, and VTR cameras.

Product Description

The Abracon ASE-27.000MHZ-LC-T is a high precision 27MHz crystal oscillator designed for surface mount applications requiring stable frequency with ±50 ppm accuracy. This 4-pin CMOS output device houses a compact footprint with dimensions of 3.2mm length, 2.5mm width, and 1.2mm height, suitable for dense PCB layouts.

Operating over a supply voltage range of 3.14V to 3.47V and an ambient temperature range of -40°C to 85°C, this crystal oscillator is engineered for reliable performance in industrial, commercial, and communication applications. Its low current consumption and low RMS jitter make it suitable for sensitive equipment such as VTR cameras, PDAs, and wireless communication devices.

The device complies with RoHS standards ensuring environmental compliance. Packaged in tape & reel, it supports efficient automated SMT assembly, reducing production costs and time.

Key features include a tri-state function, low jitter, and availability in tight stability options. The ASE series stands out for applications needing frequency stability and small form factor integration.

Crystal oscillator with ±50 ppm stability for dependable timing signals. CMOS output compatible with digital circuitry. Wide temperature range supporting harsh environments. Compact 4-pin surface mount package reduces PCB space requirements.

Suitable for industrial, laboratory, communication, and consumer electronic devices. Low power consumption contributes to energy-efficient designs. RoHS compliant for meeting environmental and safety regulations. Packaged in tape and reel format for streamlined manufacturing.

This product is categorized under Crystal Oscillators, ideal for engineers and designers developing precise timer circuits in electronics manufacturing. Visit EnvMart categories for more Oscillators and Components by Abracon.
