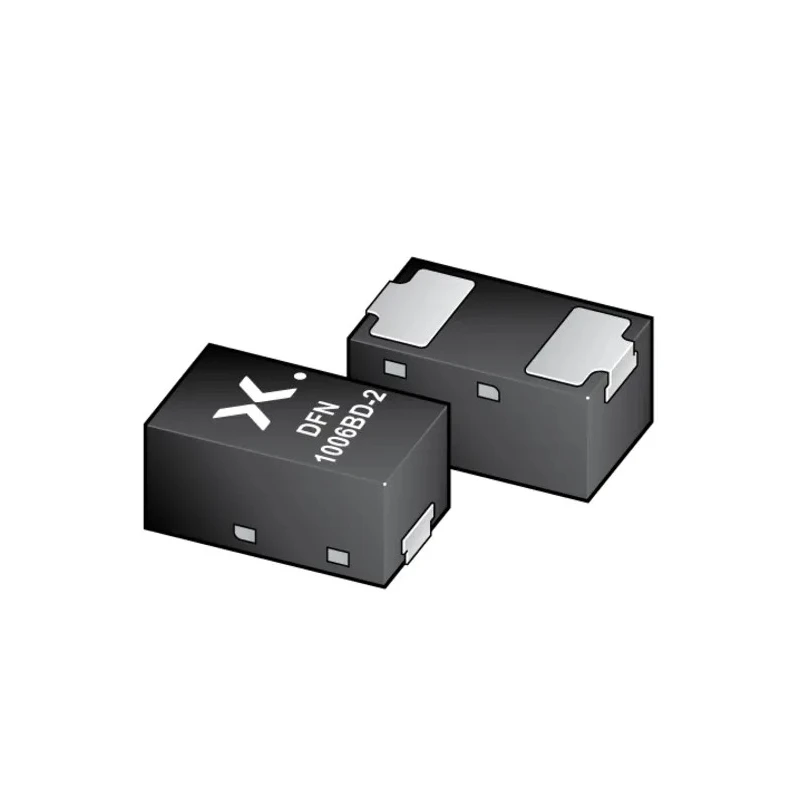

Nexperia General Purpose 27 V Zener Diode Single 365 mW 2 % Surface Mount 2-Pin DFN1006BD-2 BZX884S-C27-QYL

Name: Nexperia General Purpose 27 V Zener Diode Single 365 mW 2 % Surface Mount 2-Pin DFN1006BD-2 BZX884S-C27-QYL
Brand: Nexperia
SKU: 114604
Price: 0.1 USD
Availability: InStock



Category Zener Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.47mm
Length	1mm
Model	BZX884S-C27-QYL
Mount Type	Surface
Series	BZX884S-Q
Maximum Operating Temperature	150°C
Package Type	DFN1006BD-2
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS, AEC-Q101
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	365mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	50nA
Nominal Zener Voltage Vz	27V
Zener Type	General Purpose
Maximum Zener Impedance	300Ω
Typical Voltage Temperature Coefficient	21.4mV/K

Key Features

This diode features a nominal zener voltage of 27 volts with a 2% tolerance.
It has a maximum power dissipation of 365 milliwatts, suitable for low power applications.
The device supports an operating temperature range from -55°C to 150°C.

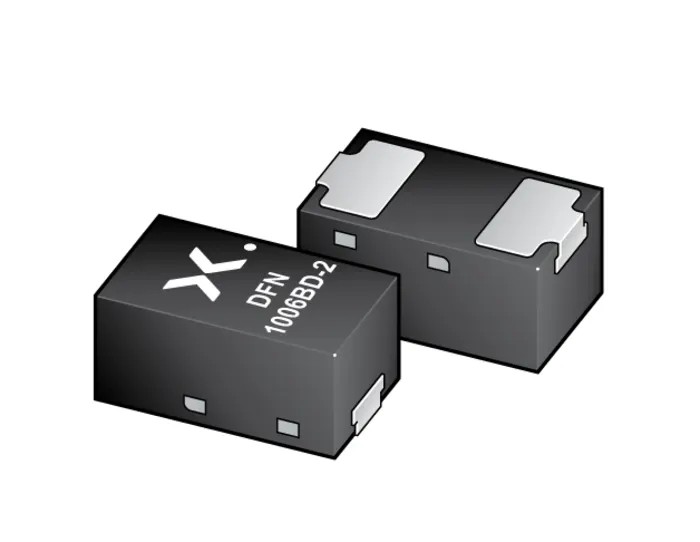

The package type is ultra small DFN1006BD-2 with side-wettable flanks.
It is qualified according to AEC-Q101 and is recommended for automotive use.
The maximum reverse leakage current is 50 nanoamperes at rated voltages.
The diode test current for nominal operation is 5 milliamperes.

Product Description

Nexperia BZX884S-C27-QYL is a general purpose 27 V zener diode designed for surface mount applications, enclosed in an ultra small DFN1006BD-2 2-pin package with side-wettable flanks. This device is optimized for reliable voltage regulation and protection in electronic circuits.

With a nominal zener voltage of 27 V and a tight tolerance of ±2%, this diode is suitable for precise voltage control in various industrial, automotive, and electronic equipment.

Its maximum power dissipation of 365 mW makes it ideal for low power stabilization, and it can operate over a wide temperature range from -55°C to 150°C, ensuring robustness in harsh environments.

This zener diode is qualified according to AEC-Q101 standards and thus is a reliable component for automotive systems and related electronics. The low maximum reverse leakage current of 50 nA and typical voltage temperature coefficient of 21.4 mV/K enhance performance stability over varying conditions.

This diode offers a nominal zener voltage of 27 V with ±2% accuracy. Maximum power dissipation is 365 mW for effective low-power applications. Operates from -55°C to 150°C for wide environment compatibility. Package type is DFN1006BD-2, enabling compact surface mounting.

Qualified to automotive AEC-Q101 standard for durable use. Maximum reverse leakage current is limited to 50 nA ensuring low losses. Test current for nominal operation is 5 mA ensuring precise regulation.

This surface mount zener diode is typically used in power management, voltage regulation, and overvoltage protection circuits within industrial, automotive, and consumer electronic devices.

EnvMart offers this quality Nexperia Zener Diode BZX884S-C27-QYL for efficient and reliable integration in your electronic designs and manufacturing workflows.
