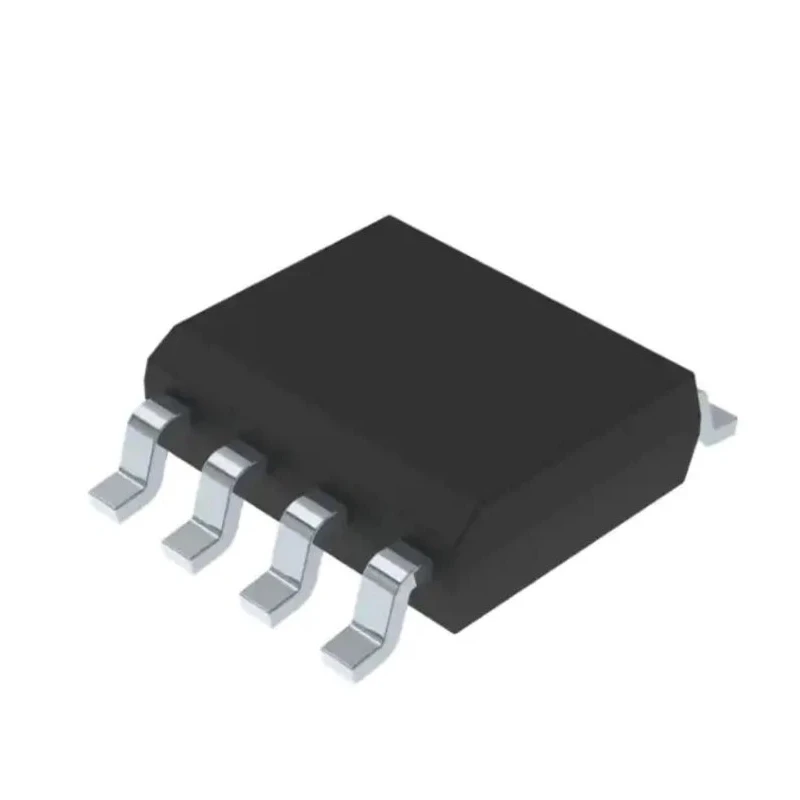

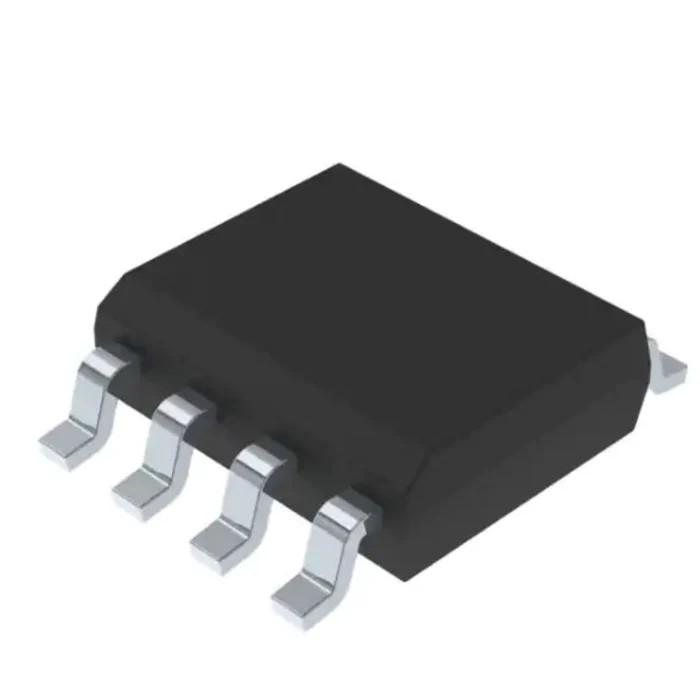

STMicroelectronics Operational Amplifier 1 MHz Gain Bandwidth, 2 Channel, SO-8 Package TL062ACDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TL062ACDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TL062A |
| Maximum Operating Temperature | 70°C |
| Package Type | SO-8 |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 3.5V/μs |
| Input Offset Current | 100 pA |
Key Features
- High-speed JFET input operational amplifier with low power consumption.
- Gain bandwidth product of 1 MHz for precise signal amplification.
- Wide supply voltage range from 6 V to 36 V.
- Low input bias current of 200 pA ensuring minimal signal distortion.
- High slew rate of 3.5 V/μs for fast response applications.
- Internal frequency compensation enhances stability in diverse circuits.
- Wide operating temperature range from 0°C to 70°C.
- SO-8 surface mount package with 8 pins and dual channels.
Product Description
STMicroelectronics TL062ACDT is a high-speed dual operational amplifier designed with JFET input stage integrating matched high-voltage JFET and bipolar transistors in a monolithic integrated circuit. It features a gain bandwidth product of 1 MHz and low power consumption of only 200 μA, enabling efficient and precise amplification.
This operational amplifier supports supply voltages ranging from 6 V to 36 V and provides a wide common-mode voltage range including VCC+ and differential voltage ranges. The input offset voltage is low at 3 mV, and the input bias current is minimal at 200 pA, ensuring high accuracy signal processing.
With a slew rate of 3.5 V/μs, the TL062ACDT offers rapid signal response suitable for various electronic applications. The device includes internal frequency compensation, output short-circuit protection, and latch-up free operation, enhancing circuit stability and safety.
Encased in a compact SO-8 surface mount package with 8 pins and 2 channels, it measures 5 mm in length, 4 mm in width, and 1.75 mm in height, making it ideal for space-constrained electronics design. The operational amplifier operates reliably in temperature ranges from 0°C to 70°C and complies with RoHS standards.
This device is widely used in electronic components, power supply systems, instrumentation, and signal processing applications across industrial, laboratory, HVAC, and manufacturing sectors.
High-speed JFET input stage for low noise and offset. Wide supply voltage range from 6 V to 36 V. Internal frequency compensation for stable operation. Output short-circuit protection enhances device safety. Low input bias current for precision applications.
Compact SO-8 surface mount package suitable for modern PCBs. Operating temperature range of 0°C to 70°C. Dual-channel Operational Amplifier for versatile use. Explore our wide range of semiconductor and amplifier products at EnvMart for efficient and reliable electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL062ACDT has a gain bandwidth product of 1 MHz, allowing for precise signal amplification.
This model supports a supply voltage range from 6 V to 36 V, making it versatile for various applications.
The input bias current is minimal at 200 pA, ensuring high accuracy in signal processing.
The maximum operating temperature for the TL062ACDT is 70°C, suitable for a variety of environments.
It comes in a SO-8 surface mount package, which is compact and suitable for modern PCB designs.
The slew rate of this operational amplifier is 3.5 V/μs, providing a fast response suitable for dynamic applications.
This model features 2 channels, allowing for versatile use in various electronic applications.
The input offset voltage is low at 3 mV, which contributes to its precision in signal amplification.
The dimensions of this operational amplifier are 5 mm in length, 4 mm in width, and 1.75 mm in height.
This operational amplifier complies with RoHS standards, ensuring it meets environmental regulations.
The minimum operating temperature for the TL062ACDT is 0°C, making it suitable for a range of applications.
This operational amplifier uses surface mounting, which is ideal for compact electronic designs.
