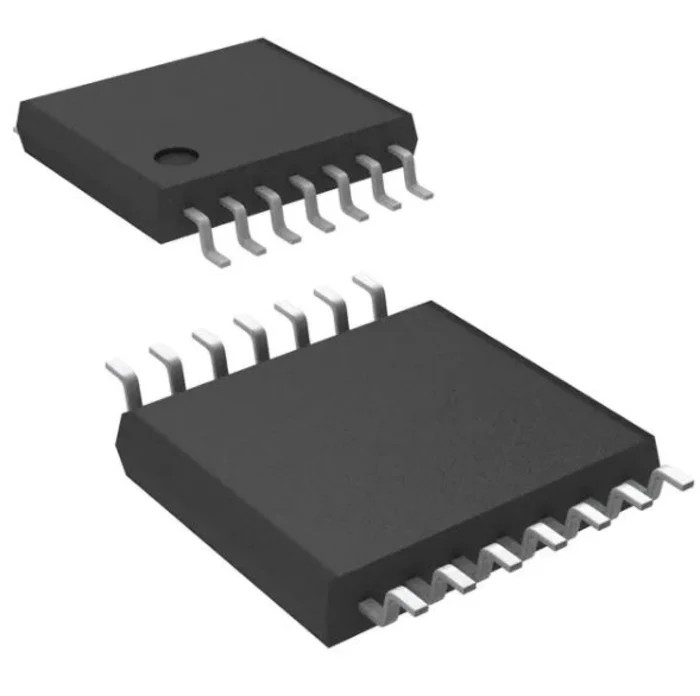

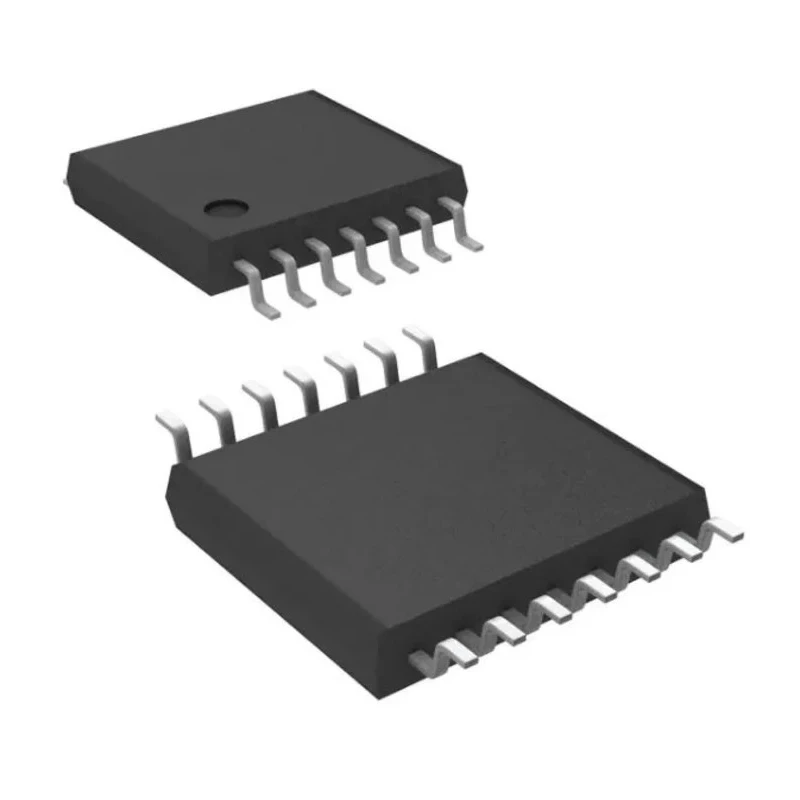

STMicroelectronics Operational Amplifier 4 MHz Gain Bandwidth Product 14-Pin TSSOP TL084IPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | TL084IPT |
| Width | 4.48mm |
| Mount Type | Surface |
| Series | TL084I |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100, AEC-Q3 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 10 mV |
| Slew Rate | 16V/μs |
| Input Offset Current | 100 pA |
Key Features
- Four-channel operational amplifier with low input bias current of 200 pA.
- Gain bandwidth product of 4 MHz for high-speed operation.
- Wide supply voltage range from 3 V to 36 V.
- Low input offset voltage of 10 mV with low offset current of 100 pA.
- High slew rate of 16 V/μs enables rapid output changes.
- Robust thermal operating range from -40°C to 125°C.
- Compact 14-Pin TSSOP surface mount package with dimensions 5.1 mm x 4.48 mm x 1.2 mm.
- Includes internal frequency compensation for stable operation.
Product Description
The STMicroelectronics TL084IPT is a high-speed, quad operational amplifier featuring a JFET input stage for low input bias current, ideal for precision analog circuits in industrial, automotive, and consumer electronics.
This device offers a gain bandwidth product of 4 MHz and a high slew rate of 16 V/μs, facilitating quick response times in amplifier applications such as signal conditioning, filtering, and active analog signal processing.
With a wide operating voltage range from 3 V to 36 V, and an input offset voltage of 10 mV along with minimal input offset current of 100 pA, the TL084IPT ensures accuracy and stability in demanding environments. The operational amplifier supports a temperature range from -40°C to 125°C, suitable for automotive and industrial settings.
The package is a 14-pin TSSOP surface mount type measuring 5.1 mm length, 4.48 mm width, and 1.2 mm height, allowing integration in compact electronic assemblies. It also incorporates output short-circuit protection and internal frequency compensation, enhancing robustness and ease of use.
Four independent high voltage JFET and bipolar transistor input channels. Wide common-mode input voltage range up to VCC+ and differential voltage range. Output short-circuit protection prevents damage during fault conditions.
RoHS compliant from an environmental perspective. Automotive-grade qualification with AEC-Q100 and AEC-Q3 standards. Applications include industrial instrumentation, automotive electronics, audio signal processing, and control systems.
This operational amplifier is suitable for applications requiring high precision, fast response, and low power consumption in surface mount configurations. For more products in the Operational Amplifier range from STMicroelectronics, explore the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL084IPT has a gain bandwidth product of 4 MHz, enabling high-speed operation for various applications.
This model features a low input bias current of 200 pA, which is beneficial for precision applications.
The maximum supply voltage for the TL084IPT is 36 V, allowing it to operate in a wide range of applications.
It operates within a thermal range of -40°C to 125°C, making it suitable for automotive and industrial environments.
The TL084IPT has a high slew rate of 16 V/μs, facilitating rapid output changes in response to input signals.
This operational amplifier comes in a compact 14-pin TSSOP package measuring 5.1 mm in length, 4.48 mm in width, and 1.2 mm in height.
The TL084IPT features four independent channels, allowing for versatile application in various circuits.
It has an input offset voltage of 10 mV, which contributes to its accuracy in signal processing applications.
This operational amplifier is designed for surface mount installation, specifically in a TSSOP package.
It meets AEC-Q100 and AEC-Q3 automotive standards, ensuring reliability in automotive applications.
Yes, it incorporates output short-circuit protection and internal frequency compensation for stable operation.
Yes, this operational amplifier is RoHS compliant, aligning with environmental standards for electronic components.
