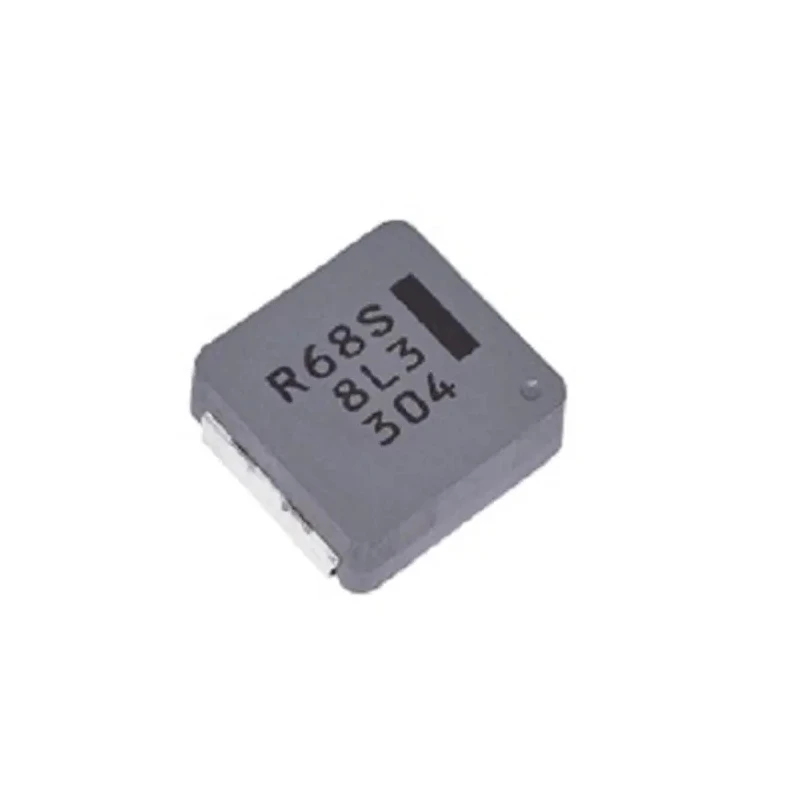

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core, 2.45 μH ±20 %, 14.1 A IDC, 8.5mm x ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5.4mm |
| Length | 8.5mm |
| Model | ETQP5M |
| Depth | 8mm |
| Packaging | Tape & Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 2.45μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 14.1A |
| Pin Count | 2 |
| Maximum DC Resistance | 8.14mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- High heat resistance and reliability due to metal composite core.
- Shielded construction minimizes electromagnetic interference.
- Operation up to 150°C with stable inductance and low audible noise.
- Package includes surface mount with tape and reel packaging for automated assembly.
- Meets automotive standard AEC-Q200 ensuring quality and durability.
- Compact dimensions of 8.5mm length, 5.4mm height, and 8mm depth.
- Maximum DC resistance is 8.14 milliohms for efficient conductivity.
- Wirewound inductor construction with 2 pins for surface mounting.
Product Description
Panasonic ETQP5M is a shielded wirewound surface mount inductor designed with a robust metal composite core offering high heat resistance and excellent reliability. This inductor delivers an inductance of 2.45 μH with a tolerance of ±20 % and supports a high maximum DC current of 14.1 A, making it suitable for demanding electronic applications.
The device features shielded construction to reduce electromagnetic interference and maintain signal integrity in sensitive circuits. It is engineered for operation at temperatures ranging from -40°C up to 150°C, including self-generated heat, ensuring stable performance in harsh environments.
The Panasonic ETQP5M series meets the automotive standard AEC-Q200, validating its use in automotive and other high-reliability sectors. The inductor’s compact package with dimensions 8.5mm (length) x 5.4mm (height) x 8mm (depth) supports surface mount technology, packaged in tape and reel form for streamlined production processes.
Constructed using wirewound techniques on a metal composite core, it boasts a low maximum DC resistance of 8.14 milliohms to reduce power loss and heat generation. The unit includes 2 pins for easy surface mounting.
High heat resistance through metal composite core. Shielded design to minimize noise. Wide operating temperature range from -40°C to 150°C. Automotive standard AEC-Q200 compliant. Compact surface mount package with tape and reel.
Low DC resistance of 8.14 milliohms. Wirewound construction with 2-pin termination.
This Panasonic ETQP5M inductor is ideal for use in industrial, automotive, power management, telecommunications, and consumer electronics applications where high reliability, thermal stability, and low noise are essential.
Explore a wide range of Surface Mount Inductors and other electronic components at EnvMart for all your advanced manufacturing and repair needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.45 μH with a tolerance of ±20%.
This inductor supports a maximum DC current of 14.1 A.
The dimensions of this unit are 8.5mm in length, 5.4mm in height, and 8mm in depth.
It can operate at a maximum temperature of 150°C.
The core material of this inductor is metal composite, which enhances heat resistance and reliability.
It is packaged in tape and reel form, suitable for automated assembly processes.
The maximum DC resistance is 8.14 milliohms, which helps in efficient conductivity.
Yes, it meets the automotive standard AEC-Q200, ensuring quality and reliability in automotive applications.
The maximum self-resonant frequency is 100 kHz.
The termination style is surface mount, featuring 2 pins for easy mounting.
This inductor is suitable for industrial, automotive, power management, telecommunications, and consumer electronics applications.
The minimum operating temperature is -40°C, allowing it to function in harsh environments.
