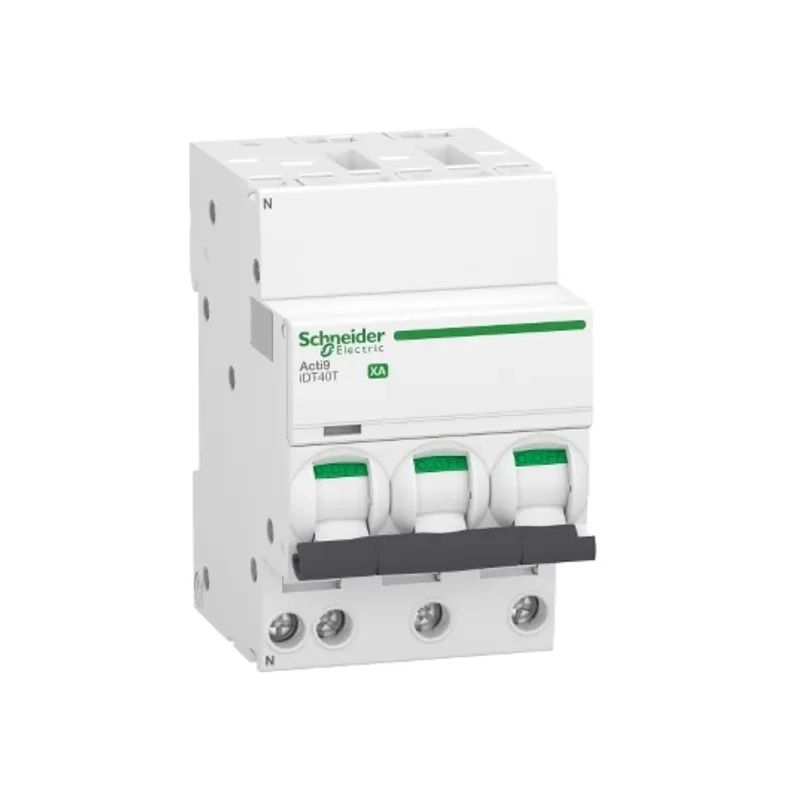

Schneider Electric Acti9 Acti9 iDT40T XA Miniature Circuit Breaker, 3+N-Pole, 40A, Type C, 400V AC, 4500A Breaking A9PA2740
Specifications
| Country of Origin | Hungary |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9PA2740 |
| Depth | 74mm |
| IP Rating | IP40, IP20 |
| Width | 54mm |
| Mount Type | DIN Rail |
| Current Rating | 40A |
| Series | Acti9 iDT40T XA |
| Breaking Capacity | 4500A |
| Number of Poles | 3+N |
| Standards/Approvals | EN/IEC 60947-2, EN/IEC 60898-1, CE |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Equipped with thermal-magnetic trip unit technology for precise circuit protection.
- Breaking capacity rated at 4500A ensuring safe disconnection during faults.
- Mounts easily on DIN Rail with compact dimensions of 85mm height, 54mm width, and 74mm depth.
- Toggle switch actuator with ON/OFF and trip indication for user-friendly control.
- Built to operate in ambient temperatures from -25 to 70 °C with relative humidity up to 95% at 55 °C.
- Compliant with IEC/EN 60898-1 and 60947-2 standards for reliability.
- Padlockable design provides added safety against unauthorized operation.
- Offers excellent protection against short circuits and overload currents in electrical installations.
Product Description
Schneider Electric's Acti9 iDT40T XA Miniature Circuit Breaker model A9PA2740 offers robust protection for electrical circuits. This 3+N-pole breaker is rated for 40 amps current with Type C tripping characteristic, suitable for commercial and industrial electrical distribution systems.
Equipped with thermal-magnetic trip unit technology, it provides precise and reliable protection against overloads and short circuits. The breaker has a breaking capacity of 4500 amperes ensuring safe fault interruption. It mounts on standard DIN rails, featuring compact dimensions measuring 85 mm height, 54 mm width, and 74 mm depth, allowing efficient space utilization.
The toggle switch control allows easy operation with clear ON/OFF and trip indication to quickly assess circuit status. Its design accommodates operation in ambient temperatures ranging from -25°C to +70°C and tolerates relative humidity up to 95% at 55°C, ensuring durability in harsh environments.
Compliance with international standards IEC/EN 60898-1 and IEC/EN 60947-2 assures the highest safety and performance benchmarks. The device features padlockable toggles for enhanced safety against inadvertent switching. IP ratings of IP40 and IP20 specify protection against solid particles and limited ingress of dust, suitable for indoor electrical panels.
Such Miniature Circuit Breakers find application in industrial automation, electrical distribution, HVAC systems, manufacturing plants, and commercial building installations. Equipped with thermal-magnetic trip unit technology for precise circuit protection.
Breaking capacity rated at 4500A ensuring safe disconnection during faults. Mounts easily on DIN Rail with compact dimensions of 85mm height, 54mm width, and 74mm depth. Toggle switch actuator with ON/OFF and trip indication for user-friendly control.
Built to operate in ambient temperatures from -25 to 70 °C with relative humidity up to 95% at 55 °C. Compliant with IEC/EN 60898-1 and 60947-2 standards for reliability. Padlockable design provides added safety against unauthorized operation.
Offers excellent protection against short circuits and overload currents in electrical installations. Rated IP40 and IP20 ingress protection for safe indoor installation. Explore the full range of Schneider Electric circuit breakers and electrical distribution products on EnvMart for reliable and certified components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity is rated at 4500A, ensuring safe disconnection during faults.
It has compact dimensions of 85mm in height, 54mm in width, and 74mm in depth.
This model is rated for a current of 40A.
It complies with EN/IEC 60947-2 and EN/IEC 60898-1 standards.
It features a thermal magnetic tripping mechanism for precise protection against overloads and short circuits.
It mounts easily on standard DIN rails, facilitating efficient installation.
It has an IP rating of IP40 and IP20, providing protection against solid particles and limited dust ingress.
It operates effectively in ambient temperatures ranging from -25°C to +70°C.
It is equipped with a toggle switch actuator that provides ON/OFF and trip indication for user-friendly control.
This model has a configuration of 3+N poles.
It is suitable for applications in industrial automation, electrical distribution, HVAC systems, and commercial building installations.
The country of origin for this product is Hungary.
