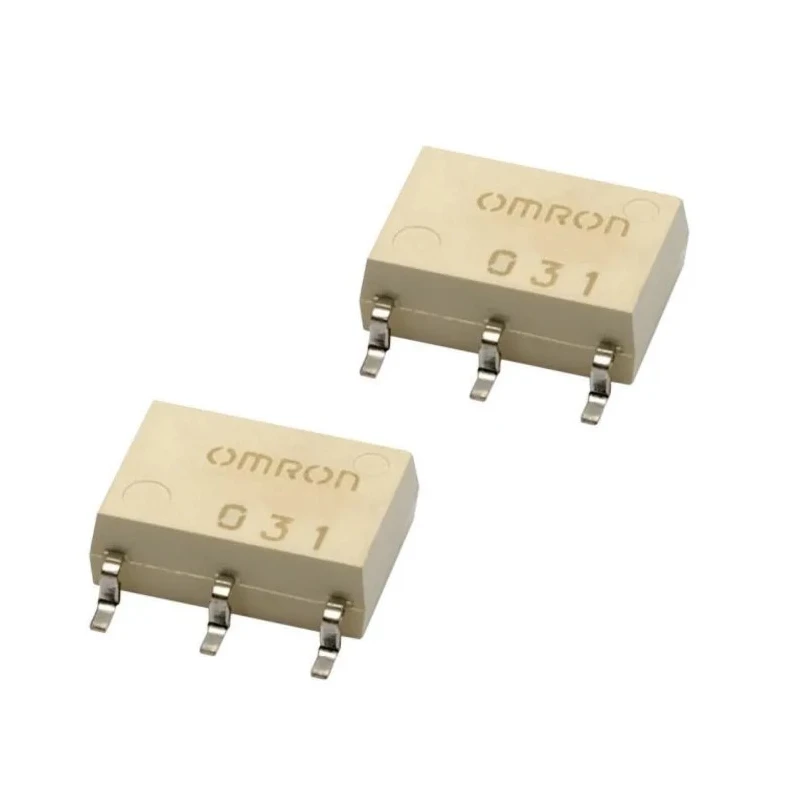

Omron G3VM Series Solid State Relay Surface Mount 8 A Load 60 V Load

Free Delivery in India | Lowest Global Shipping Charges

Omron G3VM Series Solid State Relay Surface Mount 8 A Load 60 V Load

Name: Omron G3VM Series Solid State Relay Surface Mount 8 A Load 60 V Load
Brand: Omron
SKU: 113868
Price: 14.57 USD
Availability: InStock



Category Solid State Relay Brand Omron Condition New

Specifications

Country of Origin	Japan
Brand	Omron
Length	6.3mm
Model	G3VM
Width	4.4mm
Mount Type	Surface
Series	G3VM
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Capacitance	750pF
Minimum Operating Temperature	40°C
Terminal type	Surface Mount
Maximum Load Current	8A
Standards/Approvals	UL Recognised
Maximum Load Voltage	60V
On State Resistance	0.07Ω

Key Features

Features ultra small size and low weight suitable for compact electronic circuits.
Operates with low driving current and long operating life for reliability.
Provides excellent shock resistance and small leakage current.
Utilizes MOSFET technology to eliminate switching noise and distortion.
Supported by UL recognition ensuring industrial safety standards.
Capable of high-speed switching with a maximum operating temperature of 125°C.
Offers 0.07 ohm on state resistance for efficient load switching.
Surface mount terminal type facilitates easy PCB mounting.

Product Description

Omron G3VM-61HR2(TR05) is a surface mount solid state relay designed for electrical and automation control applications. It supports a maximum load current of 8 A and load voltage up to 60 V, making it suitable for switching medium power loads in compact assemblies.

This MOSFET relay operates with extremely low on state resistance of 0.07 Ω and a capacitance of 750 pF, providing efficient electrical performance with minimal losses. Its low driving current and long operating lifetime enhance reliability in industrial environments.

The relay package measures 6.3 mm in length and 4.4 mm in width, featuring a 6-pin SOP surface mount configuration, which is ideal for automated PCB assembly lines.

Thanks to its MOSFET-based design, the G3VM series achieves virtually noise-free switching and superior I/O isolation reaching up to 2500 Vrms or higher depending on product variant. This solid state relay is UL recognised, ensuring compliance with industrial safety standards. Operating temperature range from -40°C to 125°C supports demanding industrial and commercial conditions.

Typical applications include industrial automation, signal conditioning, measurement equipment, and other electronic control systems that require silent, reliable switching with low input power consumption. The small size and durable design make it effective in space-constrained environments like medical devices, telecommunications, and instrumentation.

Ultra small size and weight for compact circuit integration. Low driving current reduces power consumption. Long operating life suitable for continuous operation. Small leakage current minimizes unintended conduction. Excellent shock resistance for harsh industrial settings.

High-speed switching capability enables responsive control. High isolation voltage for safe signal separation. UL recognised for industrial safety and reliability.

This Omron G3VM solid state relay is manufactured in Japan, assuring quality and performance expected from a global electronics leader. Explore EnvMart’s wide range of Solid State Relays for industrial, laboratory, and automation use cases.
