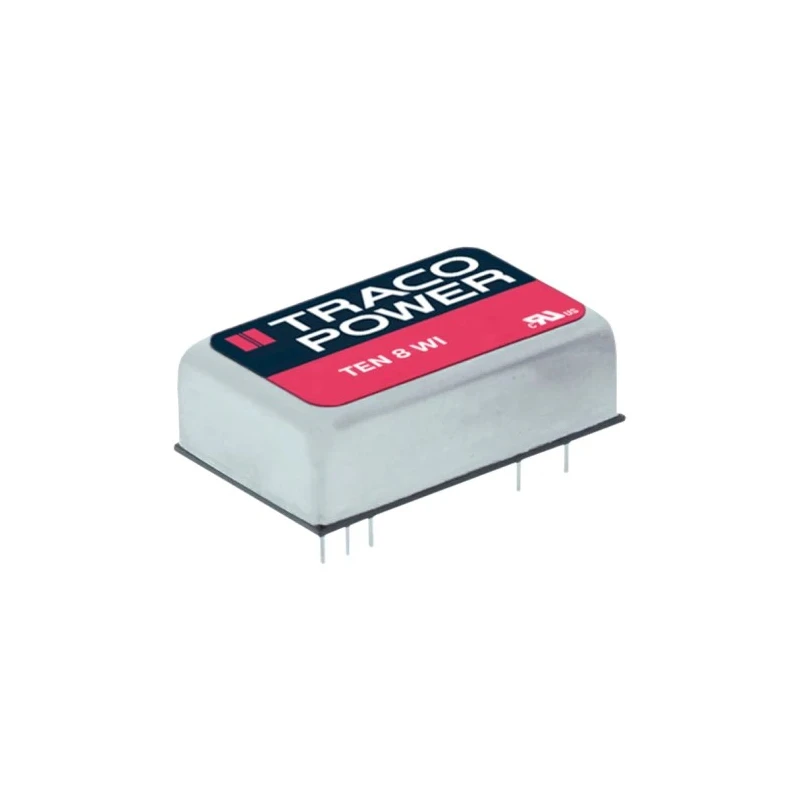

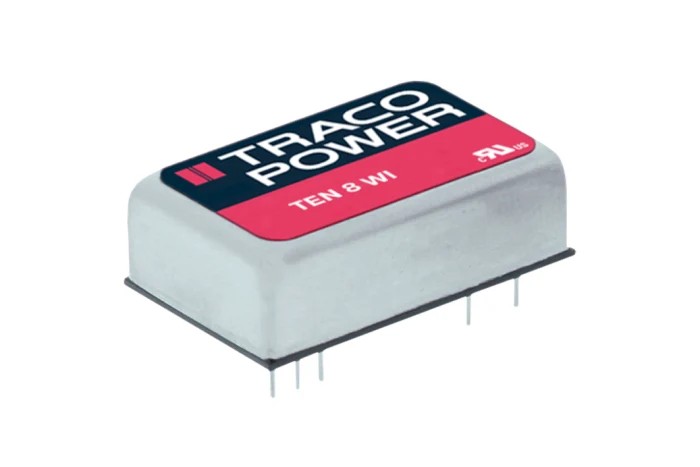

TRACOPOWER TEN 8-2422WI Dual Output DC/DC Converter 12V/-12V 333mA 8W Through Hole DIP-24 Package TEN 8-2422WI

TRACOPOWER TEN 8-2422WI is a high performance dual output DC/DC converter designed to deliver stable ±12V outputs at 333mA, providing a total of 8 watts of power in a compact through hole DIP-24 package. This isolated power supply module accepts a wide input voltage range from 9V up to 36V DC, making it highly versatile for use across automation, electronics, electrical, and mechanical industries.

The DIP-24 package measures 31.8mm in length, 20.3mm in width, and 10.2mm in depth, allowing for easy integration into diverse printed circuit board designs. Its through hole mounting method provides robust mechanical stability and simplifies installation processes.

With a high efficiency of 86%, the converter minimizes energy loss and heat generation, ensuring dependable operation within a maximum ambient temperature of 85°C and down to -40°C. The device features an isolation voltage of 1.5kV DC for enhanced electrical safety and noise immunity, making it suitable for sensitive industrial and railway systems.

The TEN 8-2422WI series DC/DC converter is certified for railway applications, emphasizing its reliability and compliance with stringent safety standards. Its long mean time between failures (MTBF) of 2.8 million hours underscores its durability and sustained performance in demanding environments.

Wide input voltage range from 9V to 36V DC for various industrial scenarios. Dual isolated outputs of +12V and -12V DC at 333mA for balanced power delivery. Easily assembled through hole DIP-24 package for secure mounting.

Compact form factor with efficient power conversion at 86% efficiency. Operating temperature range from -40°C up to +85°C supports diverse environments. RoHS compliant, ensuring environmentally safe manufacturing. Isolation voltage of 1.5kV DC enhances operational safety and noise rejection.

Long MTBF of 2,800,000 hours delivers reliable continuous uptime. Railway approved, suitable for transport and automation system power needs.

This converter is ideal for applications including automation systems, electronics measurement equipment, railway and transportation systems, as well as wireless network infrastructure. Its isolated and stable power output makes it well suited for industrial, laboratory, and manufacturing environments requiring robust DC power solutions.

Explore the TRACOPOWER DC/DC Converter range within EnvMart’s Electronics & Electricals category for efficient and reliable voltage conversion solutions.
