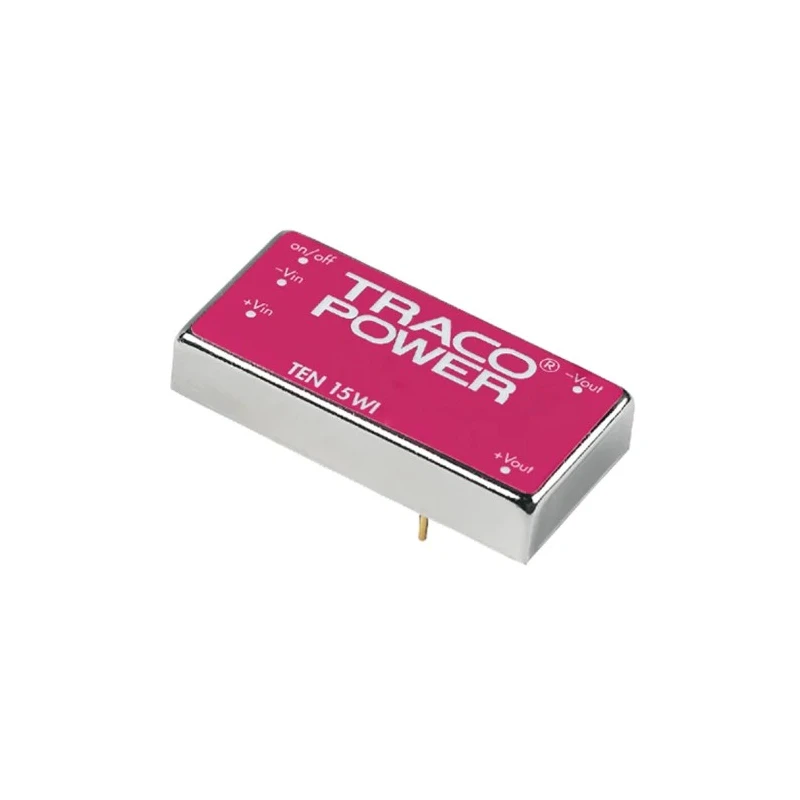

TRACOPOWER 15W Regulated Isolated DC/DC Converter 12V DC Output 1.25A 18-75V DC Input PCB Mount TEN 15-4812WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 15WI DC/DC Converter, 12V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 85% |
| Length | 25.4mm |
| Model | TEN 15-4812WI |
| Depth | 10.2mm |
| Mount Type | PCB |
| Series | TEN 15WI |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 1 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1.25A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |
| Ultra-wide 4 | 1 input voltage range |
Key Features
- Provides a regulated isolated DC/DC conversion with a maximum power output of 15 watts.
- Operates with a wide input voltage range from 18 volts to 75 volts DC.
- Single output rated at 12 volts DC with maximum output current of 1.25 amperes.
- Robust PCB mount configuration with surface mount package and 6 pins.
- Offers an efficiency of up to 85 percent for energy savings.
- Has operational temperature range from -40 degrees Celsius to +85 degrees Celsius for reliability.
- Features 1.5 kV DC input/output isolation for safety and noise reduction.

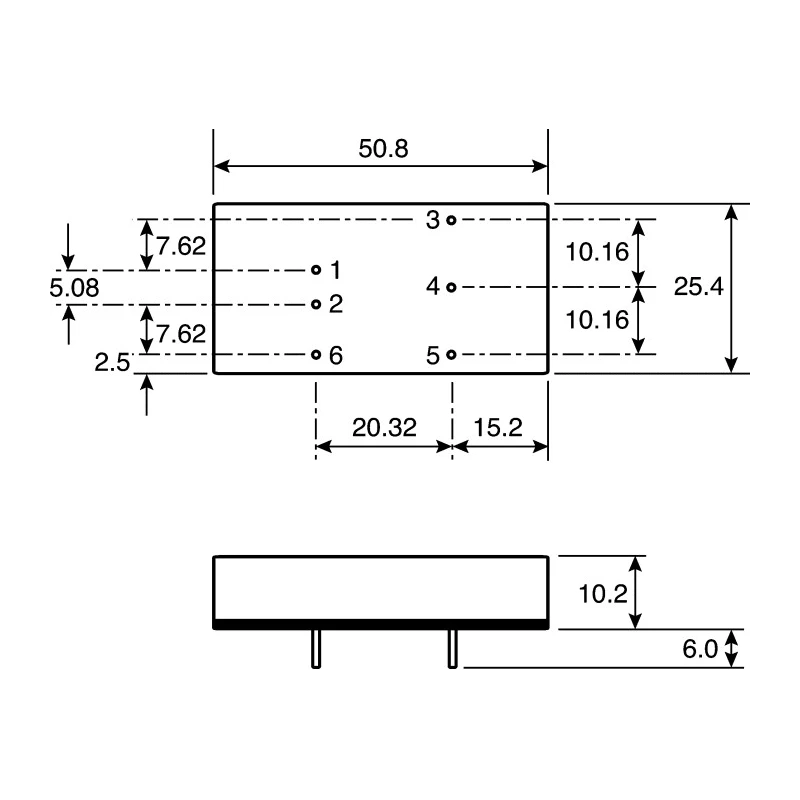

- Compact dimensions with length 25.4 mm and depth 10.2 mm suitable for tight PCB spaces.
Product Description
TRACOPOWER TEN 15-4812WI is a 15 watt regulated and isolated DC/DC Converter designed for applications requiring efficient DC voltage conversion. It supports a wide input range from 18 volts to 75 volts DC and provides a stable 12 volts DC output at up to 1.25 amperes output current. This converter is designed primarily for PCB mounting, utilizing a surface mount package with 6 pins and compact dimensions of 25.4 mm length and 10.2 mm depth.
The device operates reliably over a broad temperature range from -40 degrees Celsius to +85 degrees Celsius, suitable for harsh industrial and communication environments. It provides isolation voltage rating of 1.5 kV DC between input and output, offering protection against electrical noise and ensuring signal integrity.
Featuring an input ratio of 4:1, the converter boasts up to 85 percent efficiency, minimizing heat dissipation and power loss. It is built with ceramic chip capacitors to enhance reliability. Continuous short circuit protection and remote On/Off control functionality enhance operational safety and flexibility.
Typical applications include industrial systems, communication equipment, and battery-powered devices requiring compact, reliable DC/DC conversion solution. This model complies with UL 60950-1, EN 60950-1, and IEC 60950-1 standards up to 60V input voltage (SELV limit).
Regulated isolated output with 15W maximum power capacity. Wide input voltage range of 18V to 75V DC for versatile use. Single stabilized 12V DC output delivering 1.25A current. PCB surface mount package ideal for compact electronic assemblies.
Operational reliability from -40°C to +85°C ambient temperature. High isolation voltage of 1.5kV DC between input and output sections. High 85% efficiency reduces power losses and heat generation. Includes protection features like continuous short circuit and remote On/Off control.
This product is manufactured in Taiwan, Province of China, and is suitable for use in various industrial, telecommunications, and battery-powered equipment applications. For further details and suitable heatsinks, consult supplementary documentation. Explore additional TRACOPOWER products and related electronics components on EnvMart for end-to-end power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a wide input voltage range from 18 volts to 75 volts DC.
The maximum output power of the TEN 15-4812WI is 15 watts.
It provides a stabilized output voltage of 12 volts DC.
The maximum output current for this model is 1.25 amperes.
This model has compact dimensions of 25.4 mm in length and 10.2 mm in depth.
It boasts an efficiency of up to 85 percent, reducing power losses and heat generation.
This converter is designed for PCB mounting with a surface mount package.
It features an isolation voltage rating of 1.5 kV DC between input and output.
This unit operates reliably over a temperature range from -40 degrees Celsius to +85 degrees Celsius.
It includes continuous short circuit protection and remote On/Off control functionality for enhanced operational safety.
This product is manufactured in Taiwan, Province of China.
