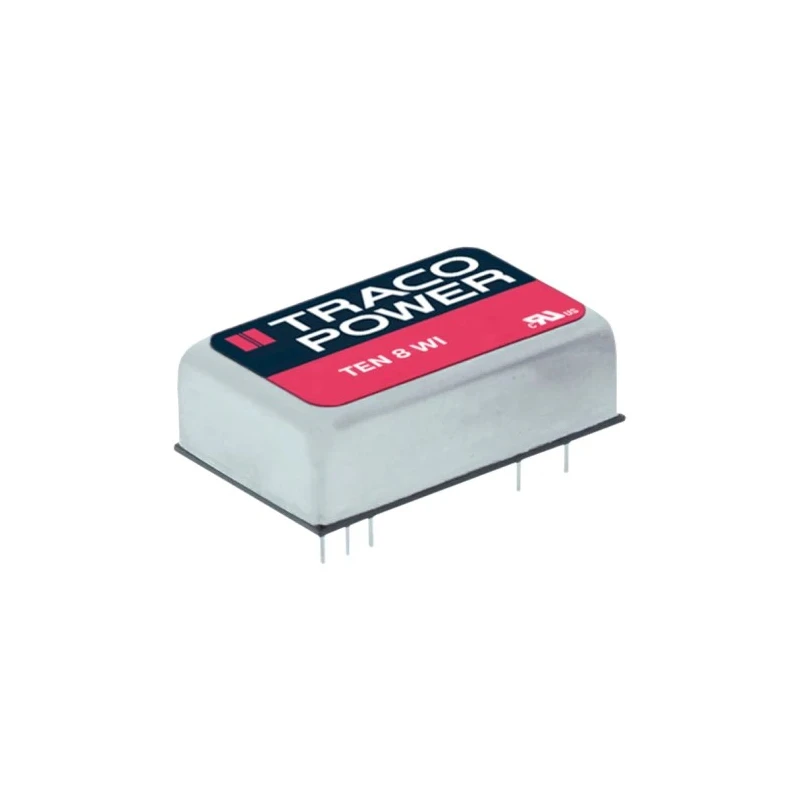

TRACOPOWER DC/DC Converter Dual Output 15 V, -15 V 265 mA, 18-36 V Input, 8 W, DIP-24 PCB TEN 8-2423WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 8WI DC/DC Converter, 15V, -15 V/ 26 |
| Brand | TRACOPOWER |
| Efficiency | 0.86% |
| Length | 32mm |
| Model | TEN 8-2423WI |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | TEN 8WI |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 2 |
| Maximum Output Power | 8W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 15, -15V |
| Output Current 1 | 265mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Dual output voltages provide both +15 V and -15 V outputs.
- Operates from a wide DC input voltage range of 18 to 36 V.
- Output current rated at 265 mA to support moderate load requirements.
- Compact DIP-24 package suitable for PCB mounting.
- High efficiency up to 86% for energy-saving operation.
- Wide operating temperature range from -40°C to +85°C for harsh environments.
- Provides 1.5 kV DC isolation voltage for safe electrical separation.
- Designed for rugged railway and industrial control system applications.
Product Description
TRACOPOWER TEN 8-2423WI is a regulated isolated dual output DC/DC converter engineered for reliable power supply in industrial, railway, telecom, and control system applications. This DIP-24 metal package converter operates within a broad input voltage range of 18 V to 36 V DC and outputs dual voltages of +15 V and -15 V with a maximum output current of 265 mA per output.
It boasts high efficiency up to 86%, which minimizes power loss and thermal dissipation, allowing device operation in temperature extremes from -40°C up to +85°C. The converter offers robust isolation with 1.5 kV DC isolation voltage, ensuring safety and noise reduction in sensitive electronic circuits.
Compliance with EN 50155 standards makes it an excellent choice for railway transportation systems, guaranteeing thermal shock resistance, vibration endurance, and electromagnetic compatibility. Additional approvals include UL/cUL 60950-1 and IEC/EN 60950-1 safety standards.
Its lead-free design and RoHS compliance demonstrate environmental responsibility. The DIP-24 footprint and PCB mount construction facilitates easy integration into existing electronic assemblies.
This product is suited for use in railway equipment, wireless networks, telecom/datacom devices, industrial automation, measurement equipment, and resistant environmental operating conditions requiring stable isolated power conversion.
Dual output DC/DC converter with ±15 V output voltages. Wide operating input voltage range of 18 to 36 V DC. Efficient power conversion with up to 86% efficiency. Operating temperature range from -40 to +85 °C. Robust isolation voltage rating of 1.5 kV DC.
Complies with EN 50155, UL/cUL, and IEC/EN standards for safety and reliability. Lead-free, RoHS compliant construction. DIP-24 package for easy PCB mounting. Ideal for transportation, industrial, telecom, and measurement applications.
Explore more DC/DC Converters and power supplies at EnvMart to find the perfect fit for your industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a wide input voltage range of 18 V to 36 V DC.
This unit provides dual output voltages of +15 V and -15 V.
The maximum output current for each output is rated at 265 mA.
It boasts high efficiency up to 86%, minimizing power loss and thermal dissipation.
The isolation voltage rating is 1.5 kV DC, ensuring safe electrical separation.
The dimensions are 32 mm in length, 20.3 mm in width, and 10.2 mm in depth.
It operates within a temperature range from -40°C to +85°C.
This model features a DIP-24 package suitable for PCB mounting.
It is designed for use in industrial, railway, telecom, and control system applications.
It complies with EN 50155, UL/cUL 60950-1, and IEC/EN 60950-1 safety standards.
Yes, it features a lead-free design and is RoHS compliant, demonstrating environmental responsibility.
