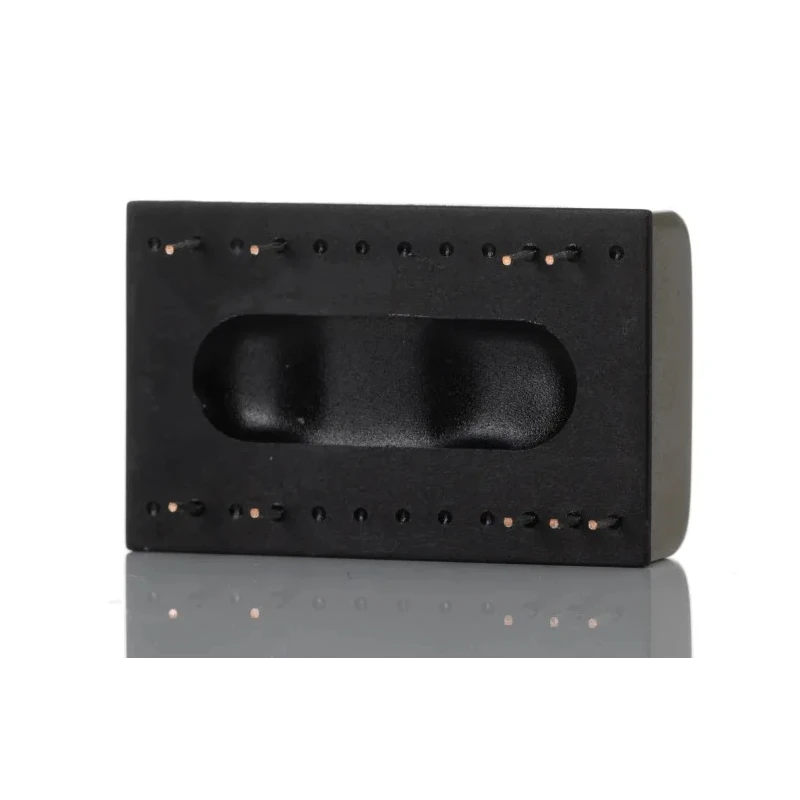

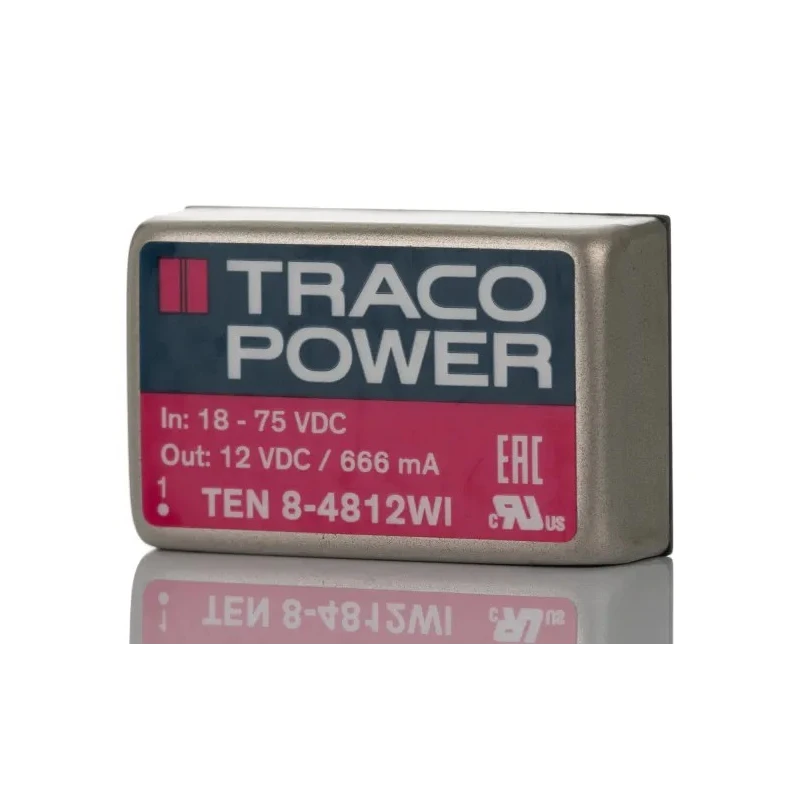

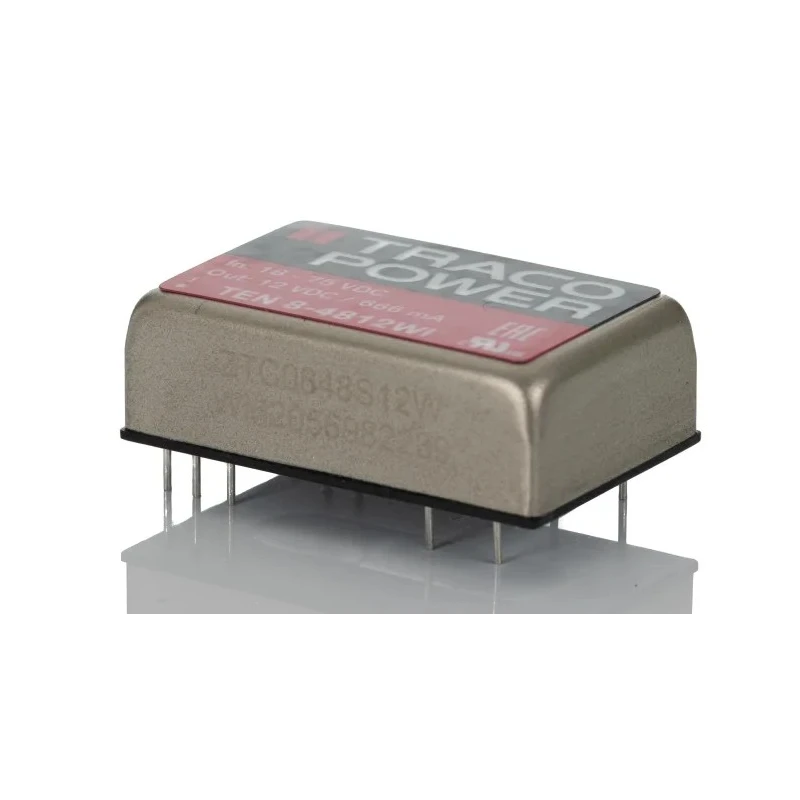

TRACOPOWER DC/DC Converter 12V DC, 666mA, 75V DC Input, 18V Input, 8W, Through Hole Mount TEN 8-4812WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 8WI DC/DC Converter, 12V dc/ 666 mA |
| Brand | TRACOPOWER |
| Efficiency | 87% |
| Length | 32mm |
| Model | TEN 8-4812WI |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TEN 8WI |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2800000h |
| Number of outputs | 1 |
| Maximum Output Power | 8W |
| Maximum Input Voltage | 75V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 9 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 666mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |
| DC/DC converter,18-75Vi,12Vout 0.666A,8WBrand | Recom |
Key Features
- High efficiency rating of 87% ensures minimal energy loss.
- Robust through-hole mounting with DIP package and 9 pins for reliability.
- Operates safely between -40°C and 85°C maximum temperature.
- 1.5kV DC electrical isolation protects connected systems from surges.
- Mean time between failures (MTBF) of 2,800,000 hours ensures long operational life.
- Conforms to RoHS standards for environmental safety.
- Suitable for telecommunications, data processing, and automation applications.
- Provides stable, regulated 12V DC output from a wide input voltage range.
Product Description
TRACOPOWER TEN 8-4812WI is a high-performance DC/DC converter featuring a 12V DC output at 666mA, capable of delivering up to 8W of power from an input voltage range spanning 18V to 75V DC. This converter utilizes a through-hole DIP package with 9 pins, making it suitable for secure mounting on printed circuit boards.
Designed for robust industrial and electronic applications, the device operates reliably within a temperature range of -40°C to 85°C. It provides excellent isolation with a rating of 1.5kV DC, protecting downstream components against electrical surges and faults.
The converter achieves an efficiency of 87%, which significantly reduces energy loss and heat generation. This efficiency rating means that active cooling such as heatsinks is not required, as the device uses free-air convection for thermal management.
With a stringent MTBF of 2,800,000 hours, the TEN 8-4812WI offers durable long-term performance, supported by compliance with RoHS standards to meet environmental and safety regulations.
Typical applications include telecommunications networks, data processing equipment, and automation and control systems where stable and isolated DC power conversion is critical. High efficiency of 87% reduces operating costs and thermal strain.
Robust nickel-plated copper housing offers mechanical protection in industrial environments. Wide input voltage range (18V to 75V DC) supports versatile compatibility. 1.5kV DC isolation ensures safety for connected systems.
Compact dimensions enable use in space-constrained installations. Long MTBF guarantees reliability in critical applications. Designed for railway and transportation applications with EN 50155 approval. Short power-up time of approximately 450ms for quick readiness.
Short-circuit, overload, and undervoltage protections safeguard the device and connected equipment.
Overall, the TRACOPOWER TEN 8-4812WI DC/DC Converter is engineered for reliability, efficiency, and durability in demanding industrial and electronic environments. It is an ideal choice for enhancing battery-powered and other electronic systems requiring regulated DC output.
Explore more technical products like DC/DC Converters in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V DC with a maximum output current of 666mA.
The TEN 8-4812WI operates within an input voltage range of 18V to 75V DC.
It has an efficiency rating of 87%, which minimizes energy loss during operation.
The dimensions of the TEN 8-4812WI are 32mm in length, 20.3mm in width, and 10.2mm in depth.
The maximum operating temperature is 85°C, allowing it to function in high-temperature environments.
This unit features a through-hole mounting design with a DIP package and 9 pins for secure installation on circuit boards.
It offers an isolation voltage of 1.5kV DC, protecting connected systems from electrical surges.
The MTBF for the TEN 8-4812WI is 2,800,000 hours, indicating a long operational life.
This converter is suitable for telecommunications, data processing, and automation applications where stable DC power is required.
It includes short-circuit, overload, and undervoltage protections to safeguard the device and connected equipment.
Yes, it conforms to RoHS standards for environmental safety.
The maximum output power capability of the TEN 8-4812WI is 8W.
