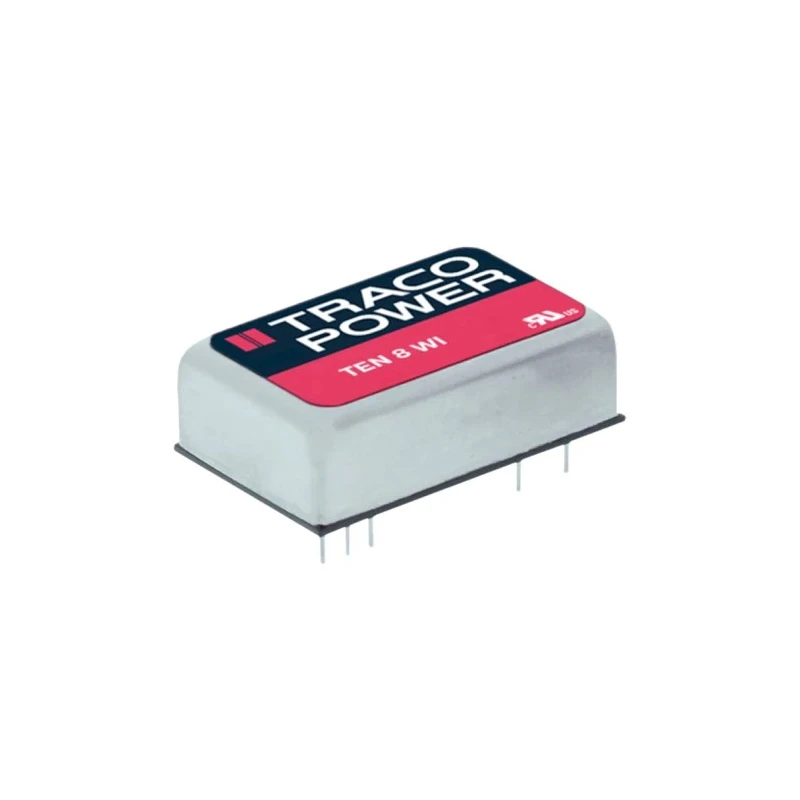

TRACOPOWER Dual Output 8W Regulated Isolated DC/DC Converter, 15V dc/267mA, 75V dc Input, Through Hole, DIP-24 TEN 8-4823WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 8WI DC/DC Converter, 15V dc/ 267 mA |
| Brand | TRACOPOWER |
| Efficiency | 87% |
| Length | 32mm |
| Model | TEN 8-4823WI |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TEN 8WI |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP-24 |
| Minimum Operating Temperature | -40°C |
| MTBF | 2800000h |
| Number of outputs | 2 |
| Maximum Output Power | 8W |
| Maximum Input Voltage | 75V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 9 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 267mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -15V dc |
| Input Ratio 4 | 1 |
Key Features
- Provides dual regulated isolated outputs suitable for industrial and railway applications.
- High efficiency up to 87% ensures low energy loss during operation.
- Wide operating temperature range from -40°C to +85°C for reliable performance.
- Constructed with a rugged DIP-24 shielded metal case with insulated base plate.
- Compliant with RoHS standards and UL/cUL 60950-1 and EN 50155 railway approvals.
- Supports a maximum isolation voltage of 1.5kV DC enhancing safety.
- Features excellent EMC characteristics and thermal shock resistance.
- Ideal for railway systems, wireless networks, telecom/datacom, industrial control, and measurement equipment.
Product Description
TRACOPOWER TEN 8-4823WI is a dual output DC/DC converter delivering 8 watts in a DIP-24 through hole package designed for regulated and isolated power conversion with an input voltage range from 18V to 75V DC and output voltage of ±15V at 267mA.
This converter features a robust metal shielded case with an insulated base plate, providing high protection against electrical noise and thermal stress, ensuring dependable operation in harsh industrial environments.
The device offers high efficiency of up to 87%, reducing heat dissipation and energy consumption. It is rated for use in extreme temperatures ranging between -40°C and +85°C, making it suitable for demanding applications.
Notably, it holds EN 50155 certification for railway applications and complies with strict UL/cUL and IEC/EN safety standards. Its remote On/Off and under voltage lock-out circuits add to its operational safety and flexibility.
The TEN 8-4823WI series stands out with its ultra-wide 4:1 input voltage ratio accommodating multiple DC voltage ranges 9 - 36V, 18 - 75V, and 43 - 160V DC, allowing versatile power supply designs.
This product is excellently suited for industrial, railway, transportation, telecom/datacom, wireless networks, measurement, and control applications requiring isolated and regulated power supplies.
Provides dual regulated isolated outputs suitable for industrial and railway applications. High efficiency up to 87% ensures low energy loss during operation. Wide operating temperature range from -40°C to +85°C for reliable performance.
Constructed with a rugged DIP-24 shielded metal case with insulated base plate. Compliant with RoHS standards and UL/cUL 60950-1 and EN 50155 railway approvals. Input voltage ratio is ultra-wide 4:1 supporting multiple DC input ranges.
Supports a maximum isolation voltage of 1.5kV DC enhancing safety. Features excellent EMC characteristics and thermal shock resistance. Ideal for railway systems, wireless networks, telecom/datacom, industrial control, and measurement equipment.
Explore more TRACOPOWER DC/DC Converters and power supply solutions on EnvMart for top quality and reliable industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 75V DC.
This unit provides dual outputs of +15V DC at 267mA and -15V DC.
It has an efficiency rating of up to 87%.
The maximum isolation voltage supported is 1.5kV DC.
The operating temperature range is from -40°C to +85°C.
This model is designed for through hole mounting.
The dimensions are 32mm in length, 20.3mm in width, and 10.2mm in depth.
It is compliant with RoHS standards and has UL/cUL 60950-1 and EN 50155 railway approvals.
This converter provides two outputs.
The mean time between failures (MTBF) is rated at 2,800,000 hours.
It is suitable for industrial control, railway systems, telecom/datacom, and measurement equipment.
The input voltage ratio is ultra-wide at 4:1, accommodating multiple DC voltage ranges.
