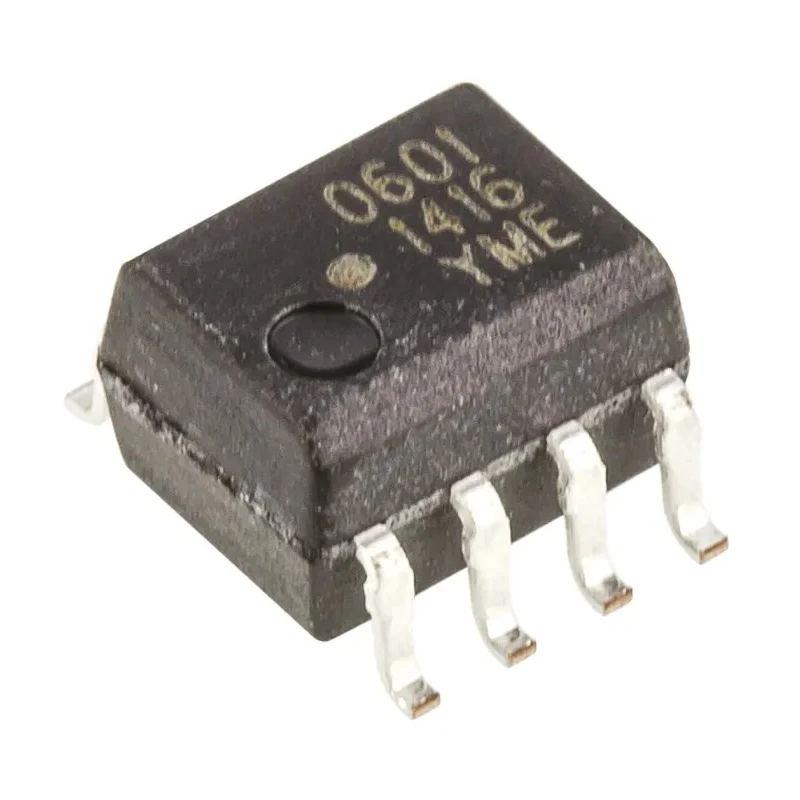

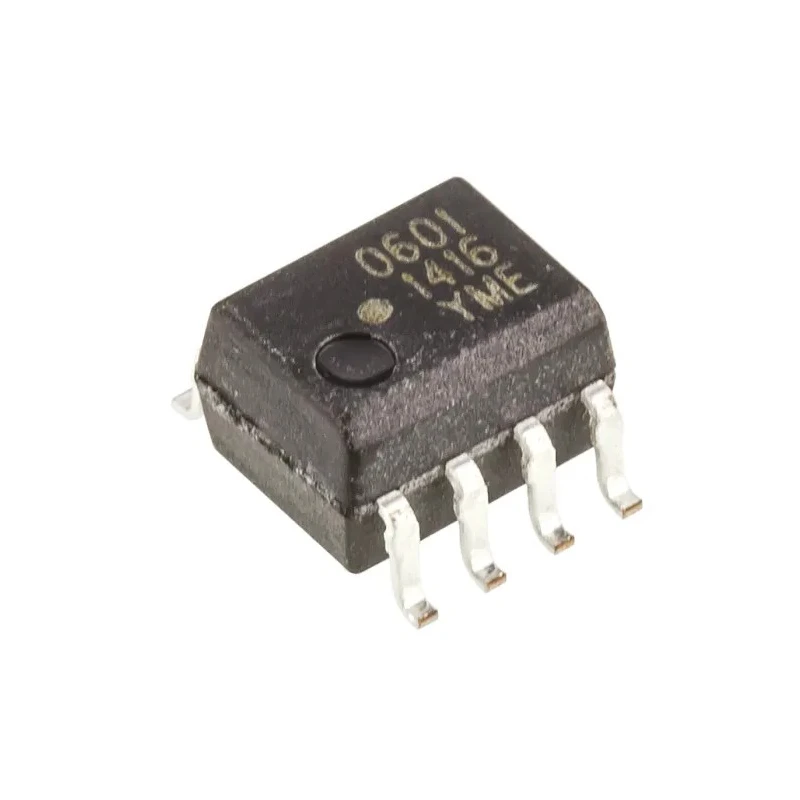

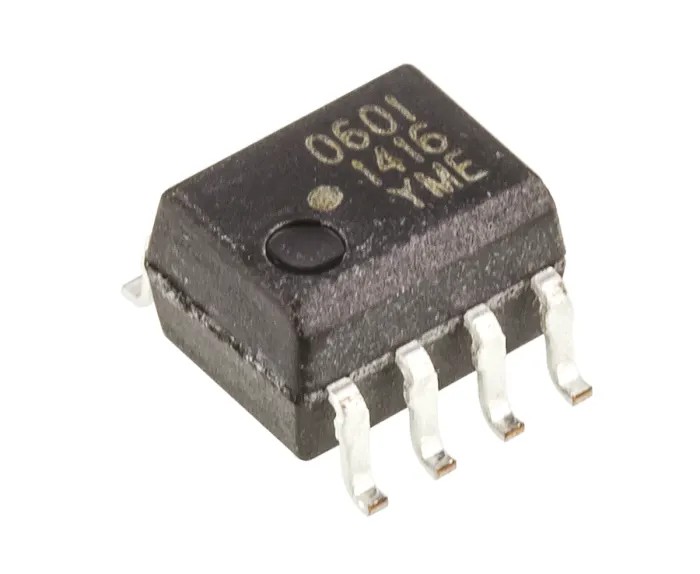

Broadcom DC Input Optocoupler Surface Mount 8-Pin SOIC HCPL-0601-000E

Broadcom HCPL-0601-000E is a high-performance DC input optocoupler featuring surface mount technology and an 8-pin SOIC package. It is crafted for industrial and commercial applications requiring isolated logic interfaces, such as factory automation, power supplies, and medical equipment.

This optocoupler supports a maximum forward voltage of 1.75V and an input current capacity up to 150mA, making it well-suited for interfacing digital logic signals with electrical isolation. It is designed with a single logic output channel and operates efficiently over a temperature range from -45°C to 80°C.

The fast switching speeds, with a typical rise time of 0.024μs and a fall time of 0.01μs, enable high-speed data communication and noise immunity in industrial environments. The device meets important safety standards including UL and CSA, ensuring robust performance and regulatory compliance.

Its packaging in tubes simplifies integration into automated manufacturing processes, enhancing efficiency. The HCPL-0601-000E series also complies with the automotive AEC-Q100 standard, ensuring reliability in automotive and high-reliability applications.

Mount type is surface, facilitating PCB assembly. Maximum forward voltage is 1.75 volts ensuring efficient input operation. Packaged in tubes for ease of handling in automated production. This optocoupler features a single channel with a logic output.

Input current type is direct current compatible with typical industrial applications. Typical rise time is 0.024 microseconds for fast switching performance. Maximum input current rating is 150 milliamps for robust signal isolation.

Operates reliably between -45°C and 80°C for industrial temperature ranges. Typical fall time of 0.01 microseconds supports high-speed data transmission. Meets UL and CSA standards for safety and performance compliance. Automotive standard AEC-Q100 compliant ensuring quality for automotive use.

This optocoupler is ideal for applications in industrial automation, power system control, manufacturing equipment, and medical device isolation circuits. Its high-speed switching and electrical isolation enhance system safety and signal integrity. Explore more optoelectronic components and Optocouplers in the Electronics Components category at EnvMart for your application needs.
