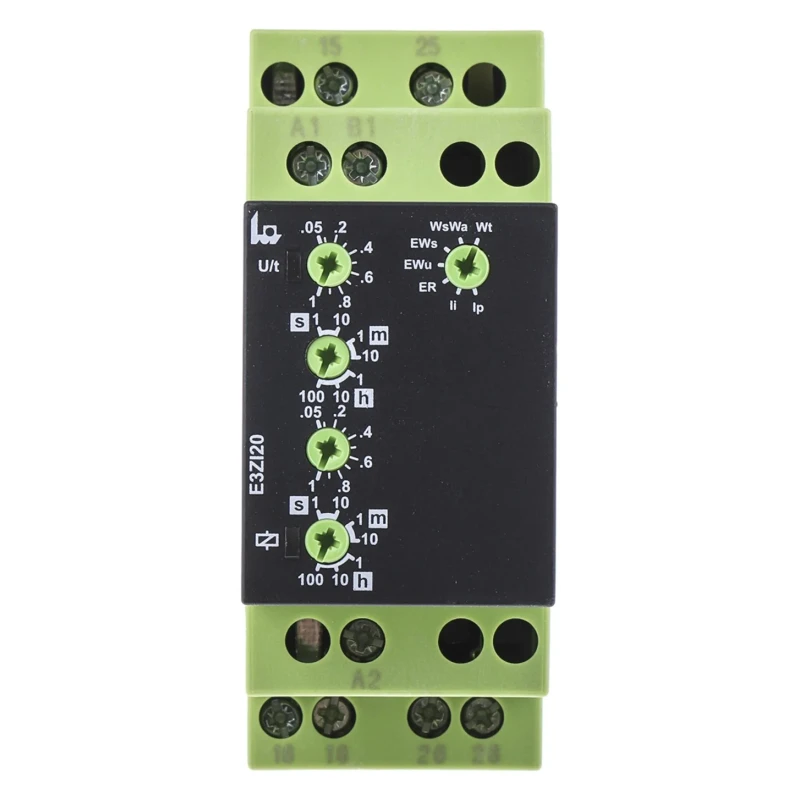

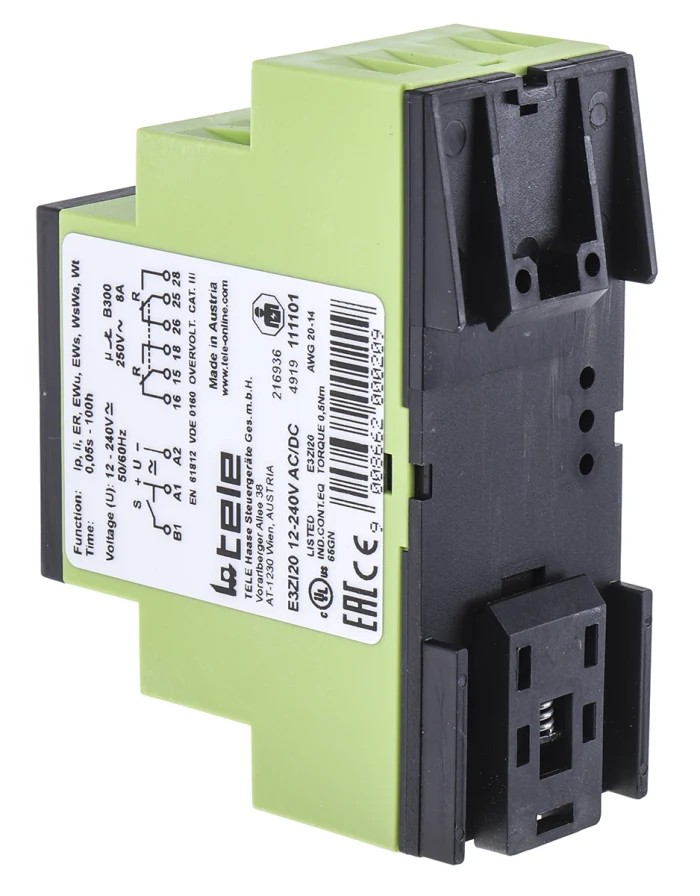

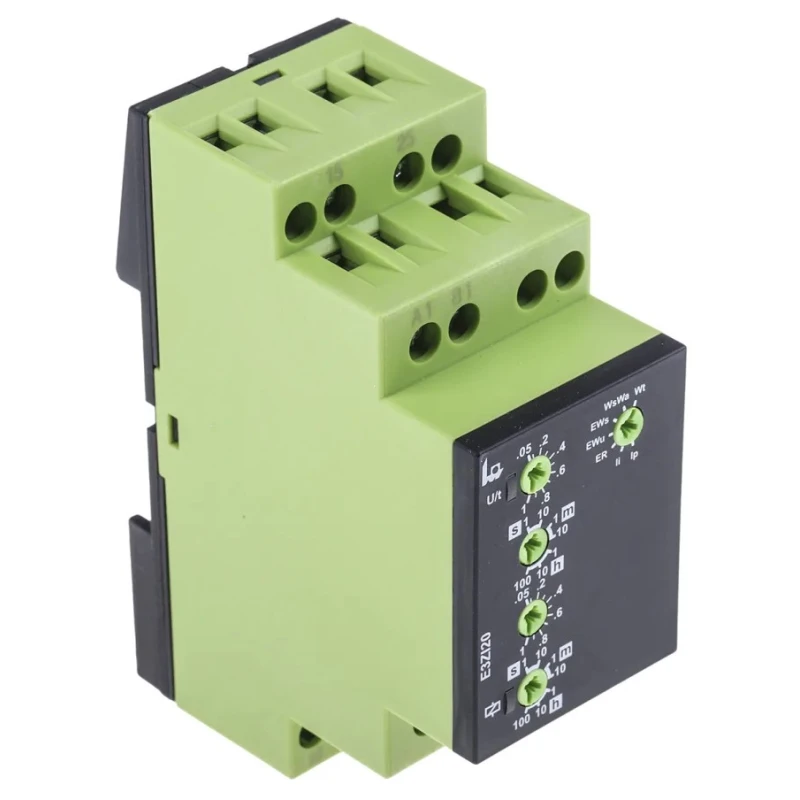

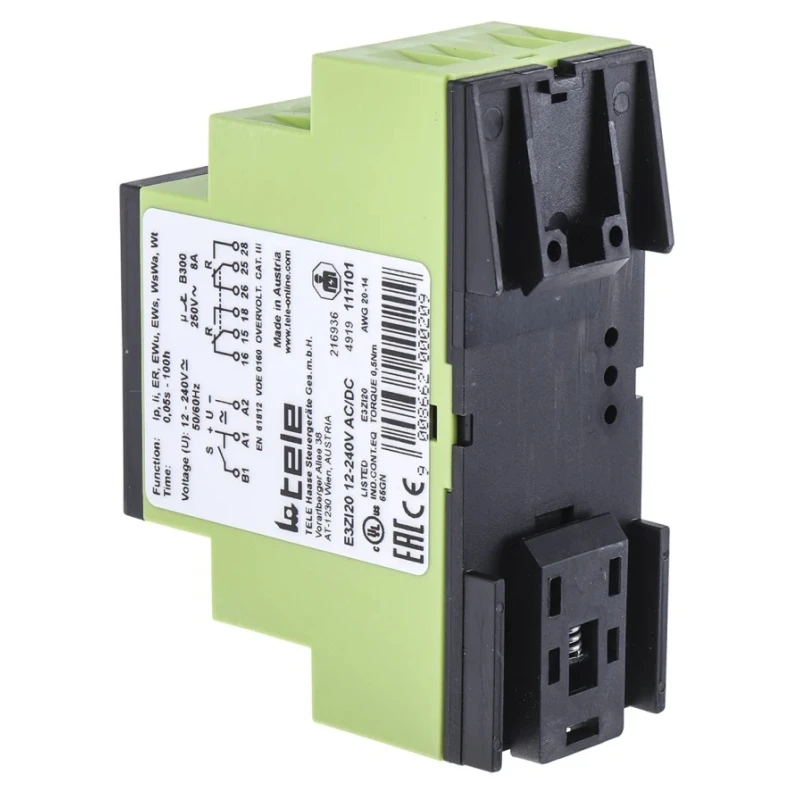

Tele Multifunction DIN Rail Timer Relay, 2-Contact DPDT, 12-240 V AC/DC, 0.05 s to 100 h Time Range E3ZI20
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | Tele |
| Height | 65mm |
| Length | 87mm |
| Model | E3ZI20 |
| IP Rating | IP40 |
| Mode | Star-Delta |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | E3ZI20 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Time Range | 0.05 s to 100 h |
| Terminal type | Screw |
| Standards/Approvals | E3ZI20 |
| Number of Contacts | 2 |
| Number of Timer Functions | Multifunction |
| Supply DC Voltage | 240 V dc |
| Timing Adjustment | Knob |
| Supply AC Voltage | 12, 240V ac |
| Tele Time Delay Relay, 110 → 240V ac/dc, 2-ContactBrand | Tele |
Key Features
- Multifunction timer relay featuring star-delta mode and multiple timing functions.
- Wide time range adjustable from 0.05 seconds to 100 hours.
- Dual supply voltage compatibility with 12 V and 240 V AC/DC inputs.
- Compact DIN rail mount design for easy installation.
- DPDT contact configuration with 8 A capacity at 250 VAC.
- LED status indication and reset time of 100 ms for reliable operation.
- Self-extinguishing plastic housing with IP40 protection rating.
- Suitable for industrial applications including textiles, mining, chemical, irrigation, and food processing.
Product Description
Tele E3ZI20 multifunction DIN rail timer relay offers high precision control with a wide timing range from 0.05 seconds to 100 hours. Designed for industrial and automation applications, it supports a dual supply voltage from 12 V to 240 V AC/DC, making it flexible for new or existing installations.
This solid-state timer relay features multiple timing functions including asymmetrical flasher pulses, ON and OFF delays with control contact, single-shot leading edge and trailing edge timing, pulse detection, and star-delta startup sequences. The DPDT 2-contact relay output rated at 8 A supports reliable switching for a broad range of electrical circuits.
The device is housed in a compact, self-extinguishing plastic enclosure rated IP40, suitable for harsh industrial environments. It is engineered for DIN rail mounting with screw terminals to ensure secure and straightforward installation. The relay includes LED status indicators and a fast reset time of 100 milliseconds for responsive operation.
Suitable usage environments include textiles, chemical processing, mining, irrigation systems, raw material handling, and food and beverage industries. The operating temperature range from -25°C to 55°C supports durability in various industrial conditions.
Multifunction timer relay with star-delta and multiple timing modes. DPDT 2-contact relay output rated 8 A at 250 VAC. Wide time range from 0.05 seconds to 100 hours. Dual supply voltage: 12 V to 240 V AC/DC. Compact DIN rail mount design with screw terminals.
Self-extinguishing plastic housing with IP40 rating. LED status indicators and quick 100 ms reset time. Industrial application suited for various process control environments. Explore the range of Tele Timer Relays and other automation components on EnvMart for reliable industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The time range of this timer relay is adjustable from 0.05 seconds to 100 hours.
It supports dual supply voltage options of 12 V and 240 V AC/DC.
This model features a DPDT (Double Pole Double Throw) contact configuration with 2 contacts.
The maximum operating temperature is 55°C.
It is designed for DIN rail mounting and features screw terminals for secure installation.
The housing has an IP40 protection rating, suitable for industrial environments.
It offers multiple timing functions including asymmetrical flasher pulses, ON and OFF delays, and star-delta startup sequences.
The dimensions are 65 mm in height and 35 mm in width.
The reset time for the E3ZI20 is 100 milliseconds.
It is suitable for various industrial applications including textiles, mining, chemical processing, and food processing.
The minimum operating temperature is -25°C.
It uses screw terminals for electrical connections.
