HARTING DIN 41612 Connector Female 160 Contacts 5 Row 2.54 mm Pitch Press-in Through Hole Class C2 02021602201

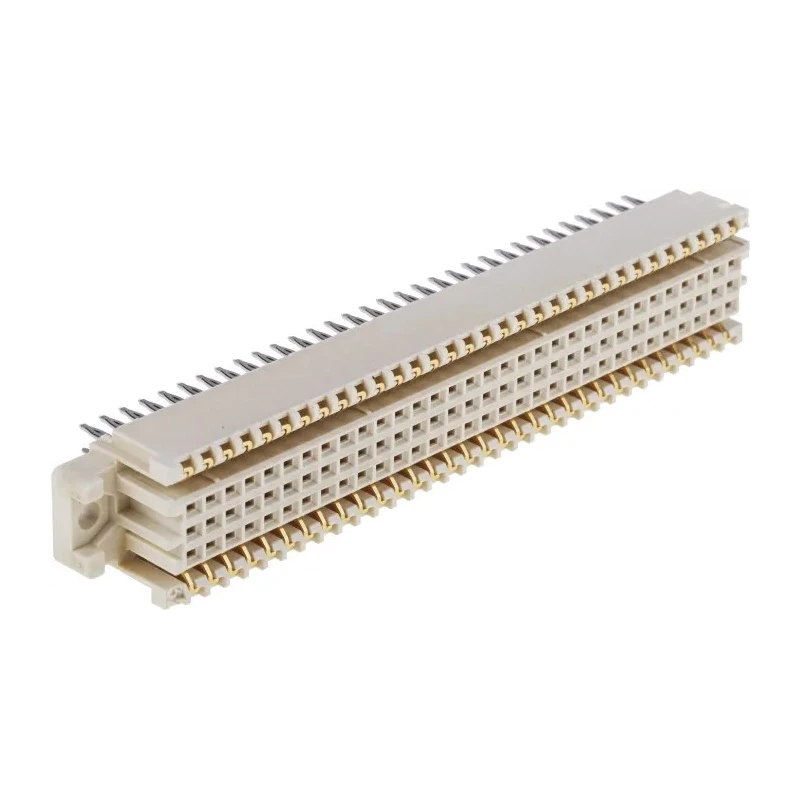

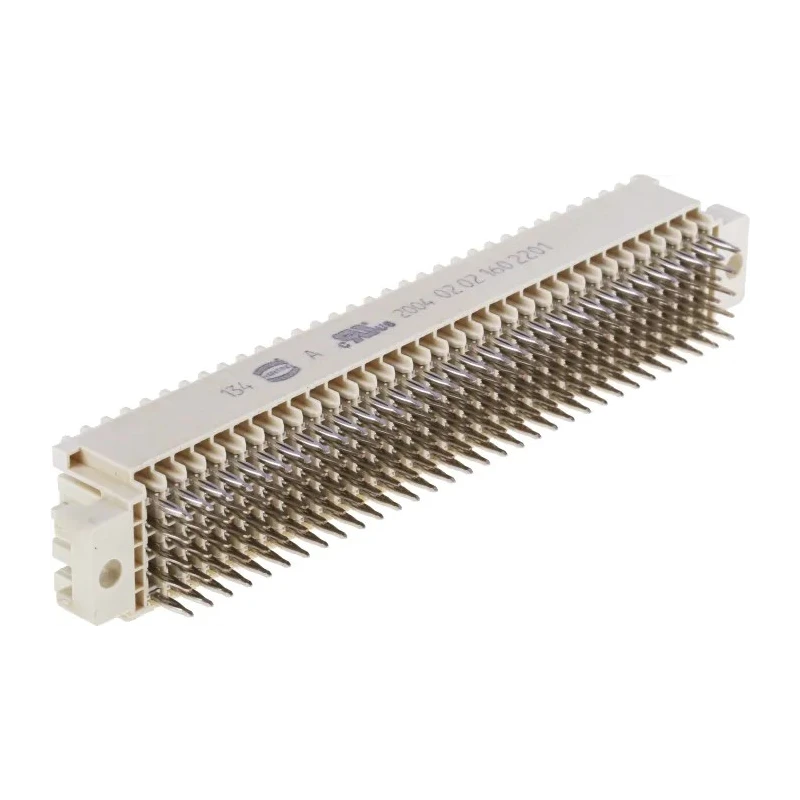

Name: HARTING DIN 41612 Connector Female 160 Contacts 5 Row 2.54 mm Pitch Press-in Through Hole Class C2 02021602201
Brand: HARTING
SKU: 112819
Price: 24.58 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	har-bus 64
Termination Type	Press-in
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	5
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	160
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	30mΩ
Row Loading	B, D, C, Z, A

Key Features

Designed with 160 contacts across 5 rows for high-density applications.
Features a female connector with press-in termination for easy installation.
Has a 2.54 mm pitch suitable for standard printed circuit boards.
Capable of operating between -55°C and 125°C for harsh conditions.
Contact plating of gold over nickel enhances corrosion resistance and signal integrity.
Housing made from liquid crystal polymer offers excellent thermal stability.
Maximum contact resistance is 30mΩ, ensuring minimal power loss.
Mount type is through-hole facilitating stable PCB mounting.

Product Description

HARTING 02021602201 DIN 41612 Connector is a female connector with 160 contacts arranged in 5 rows, designed for industrial and electronic applications requiring reliable high-density connections. It features a 2.54 mm pitch and uses press-in termination for secure and straightforward through-hole mounting on printed circuit boards. The connector is engineered to withstand temperatures from -55°C to 125°C, making it suitable for demanding environments.

The contacts are plated with gold over nickel to provide excellent corrosion resistance and maintain signal integrity over time. Constructed with a housing made from liquid crystal polymer, this connector offers outstanding thermal stability and durability under harsh operating conditions.

This model supports current loads of 1A per contact and maintains a maximum contact resistance of 30 milliohms to minimize power loss, enhancing overall system performance. Its straight orientation and press-in termination simplify installation processes in electronic devices, automation systems, electrical panels, and mechanical systems where resilience and stable connections are critical.

160 contacts across 5 rows facilitate complex, compact interconnections. Female connector configuration designed for robust connectivity. Press-in termination enabling quick installation without soldering. 2.54 mm pitch compatible with common PCB layouts.

Wide operating temperature range from -55°C to 125°C. Gold over nickel plating ensures long-lasting corrosion resistance. Liquid crystal polymer housing provides thermal and mechanical stability. Maximum contact resistance of 30 mΩ reduces power loss.

Suitable for automation, electronics, electrical panels, and mechanical applications.

This HARTING har-bus 64 series connector is manufactured in Germany and sets a high standard for performance and reliability in industrial and electronic backplane connector applications. EnvMart offers this DIN 41612 Connector as part of its comprehensive range of high-quality electronic components.
