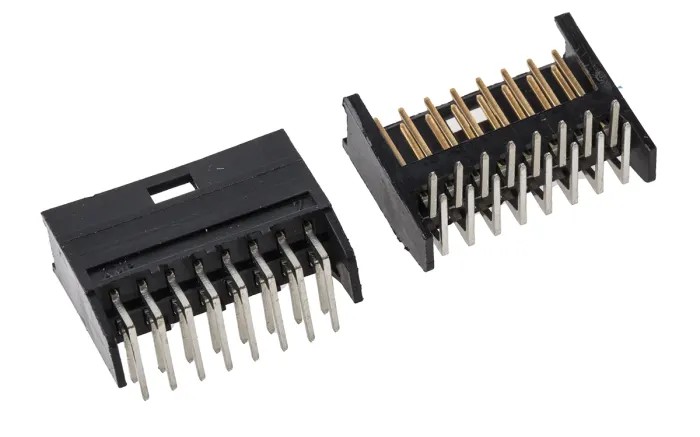

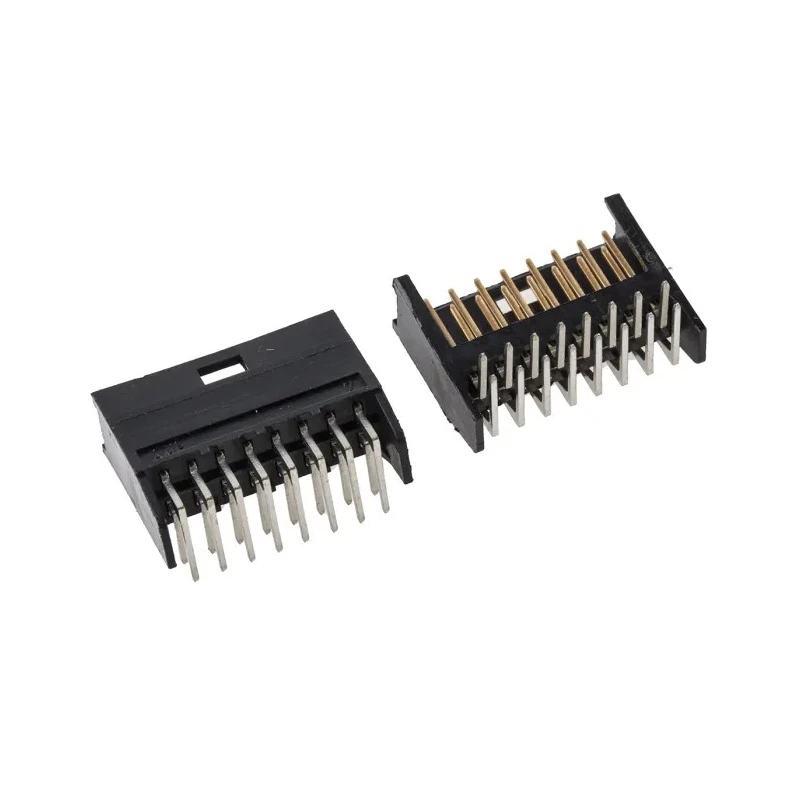

TE Connectivity AMPMODU Mod II 2.54 mm Right Angle Shrouded Through Hole PCB Header, 16 Contact, 2 Row, Brass Gold 280390-2

TE Connectivity 280390-2 AMPMODU Mod II series 2.54 mm pitch, right angle, shrouded through hole PCB header is designed for secure and reliable interconnection in a variety of industrial and commercial electronic applications.

This PCB Header features 16 male brass contacts plated with gold to provide excellent electrical conductivity and corrosion resistance while ensuring long-lasting durability. The thermoplastic housing provides high insulation and mechanical strength with shrouding on three sides to prevent accidental pin damage and mismating.

The right angle orientation makes this header ideal for space-constrained PCB designs where board-to-board or wire-to-board connections are required. The header is fitted with a detent positive locking mechanism to guarantee firm connection retention even in environments subject to vibration.

Operating temperature ranges from -65°C up to 105°C, allowing its use in harsh automotive, industrial control, telecommunications, computing, and medical instrumentation applications. The connector supports a maximum voltage rating of 750 volts, making it suitable for a broad range of electronic systems requiring reliable power and signal transmission.

The AMPMODU Interconnect system is a worldwide standard recognized for cost-effective automation and control signal interconnection solutions. The comprehensive line of board-to-board, wire-to-board, and wire-to-wire connectors enables system designers to create flexible, modular assemblies tailored to industrial and commercial needs.

Manufactured using thermoplastic housing for durability and insulation. Contact pins made of brass with gold plating for excellent conductivity and corrosion resistance. Right angle mounting orientation suitable for compact PCB layouts.

Features shrouding on three sides to guide and protect pins. Through hole solder termination type for robust PCB assembly. Detent positive locking mechanism to ensure secure connector mating. Operates reliably between -65°C and 105°C temperature range.

Voltage rating up to 750 volts for safety and performance. Ideal for industrial, automotive, medical, communications, computing, and test equipment applications.
