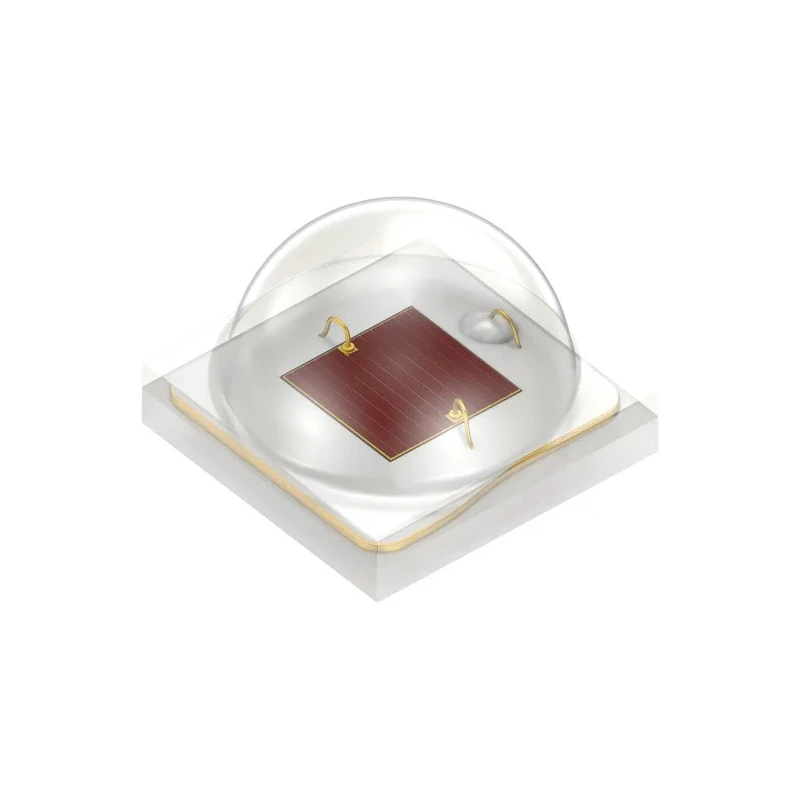

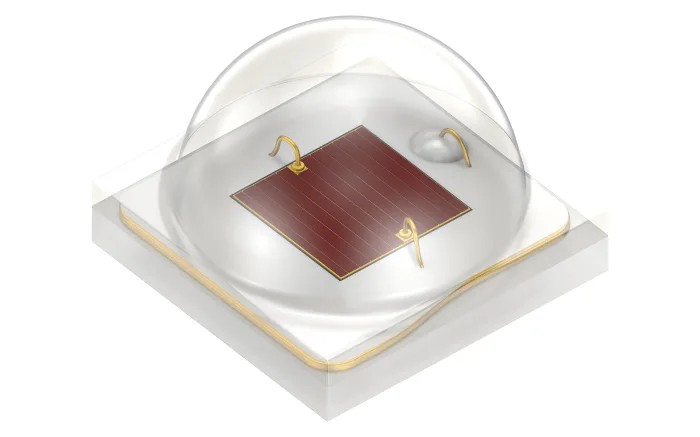

ams OSRAM 2 V Red High Power SMT Ceramic Surface Mount LED OSLON Square GH CSSRM5.24-V8A2-1-1

The ams OSRAM GH CSSRM5.24-V8A2-1-1 is a high power red LED engineered for advanced electronic and optoelectronic applications. Featuring a 2V forward voltage and a robust SMT Ceramic package, this LED delivers exceptional luminous output and consistent performance in demanding environments.

This OSLON Square series LED is a compact surface mount device that excels in efficiency with a wide 120° Lambertian emission pattern, making it suitable for diverse lighting solutions including industrial indicators, displays, and horticultural lighting.

Constructed with a clear, round lens measuring 2.87 x 2.17 mm, it optimizes light output while maintaining low thermal resistance for a long operational lifetime. The device complies with RoHS standards and possesses excellent electrostatic discharge protection rated at 8 kV (HBM, Class 3B).

Radiant flux performance is outstanding at typical values of 1064 mW at 700mA and 538 mW at 350mA, delivering high luminous efficacy and photosynthetic photon flux beneficial for plant growth applications. The LED packaging in tape and reel format supports automated surface mount assembly processes for efficient manufacturing.

The LED emits red light with a dominant wavelength of 640nm for vibrant illumination. Operates at a maximum forward current of 1400mA ensuring high power output. Packaged in a compact SMT Ceramic housing suitable for surface mount applications.

Features a 2V forward voltage and a wide 120° viewing angle for efficient light distribution. Comes in a tape and reel packaging ideal for automated assembly processes. The LED lens measures 2.87 x 2.17 mm and is round and clear to maximize light transmission.

OSLON Square series known for robustness, reliability, and long lifetime with low thermal resistance. Meets RoHS standards ensuring compliance with environmental regulations. Specially designed with an ESD rating of 8 kV to withstand electrostatic damage.

Typical radiant flux is 1064 mW at 700mA and 538 mW at 350mA, with radiant efficiencies of 76% and 82%, respectively.

This high power LED is ideal for use in industrial, electronic components, power and connector applications, especially in LED indicators, horticultural lighting systems, and optoelectronics requiring high performance and reliability.
