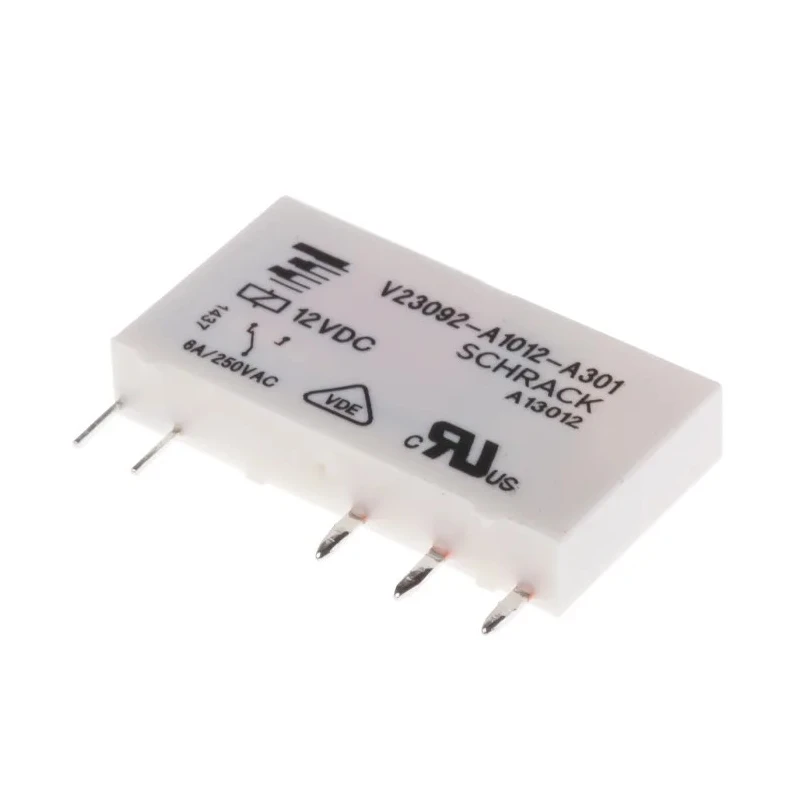

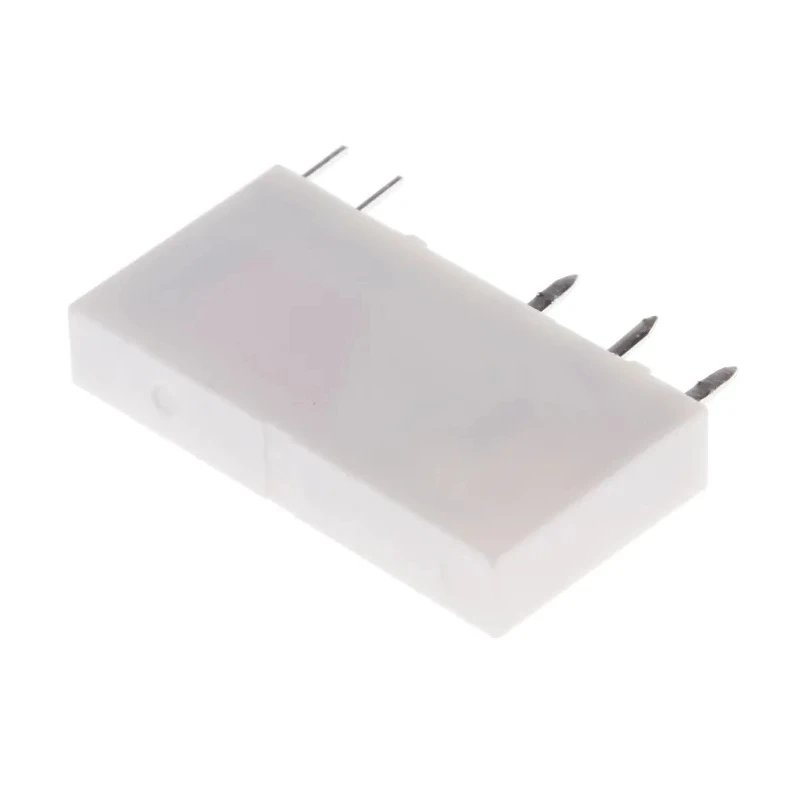

TE Connectivity PCB Power Relay 12V dc Coil 6A Switching Current SPDT V23092-A1012-A301 1393236-7

TE Connectivity V23092-A1012-A301 1393236-7 PCB Power Relay is engineered for industrial and automation applications requiring reliable power switching. With a 12V DC coil voltage and a switching current capability of 6A, this SPDT relay provides dependable performance on PCB assemblies. The slim SNR series design features a compact 5mm thickness facilitating high-density PCB mounting and optimized space utilization.

The relay exhibits high coil sensitivity, drawing only 170mW power to energize the coil, making it energy efficient. It supports switching of AC voltages up to 250V, suitable for various electrical control circuits. Built to operate over an extensive temperature range from -40°C to +85°C, it ensures stable function in demanding environmental conditions.

The contact material is a silver alloy offering excellent conductivity and mechanical durability. Coil resistance of 848 ohms maintains consistent coil energizing characteristics. The relay provides robust isolation from coil to contact rated at 4000Vac, ensuring safe operation under high voltage conditions. This relay is designed for solder-type terminals, simplifying PCB assembly processes.

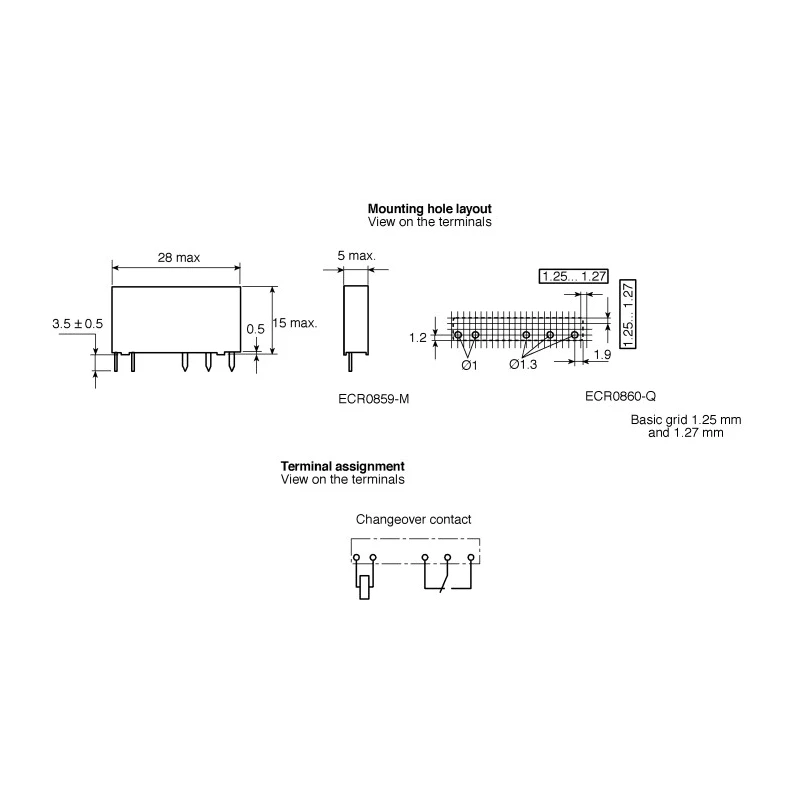

Dimensionally, it measures 28mm in length, 15mm in height, and 5mm in width, supporting compact device designs. The product is certified against major international standards including cULus and VDE, reflecting its quality and safety for commercial and industrial use.

This TE Connectivity power relay is ideal for applications in electrical automation, signaling, and control within industrial manufacturing, HVAC systems, and commercial electrical equipment.

Ensure enhanced control and reliability with this certified high-performance PCB power relay. Explore more Power Relays and related electrical components at EnvMart's comprehensive electronics category. Compact slim relay design with 5mm thickness for dense PCB layouts.

High coil sensitivity with coil power consumption of 170mW. Switching AC voltage rated at 250V ac for versatile applications. Wide operating temperature range from -40°C to +85°C for reliable performance. Silver alloy contacts ensure durability and efficient electrical conduction.

Coil resistance measured at 848Ω to optimize coil performance. Isolation between coil and contacts withstands up to 4000Vac for safety. Mount Type designed for soldering on PCB boards. Dimensions are 28mm length, 15mm height, and 5mm width, enabling space-saving arrangements.

Certified with cULus and VDE for international standards compliance.
