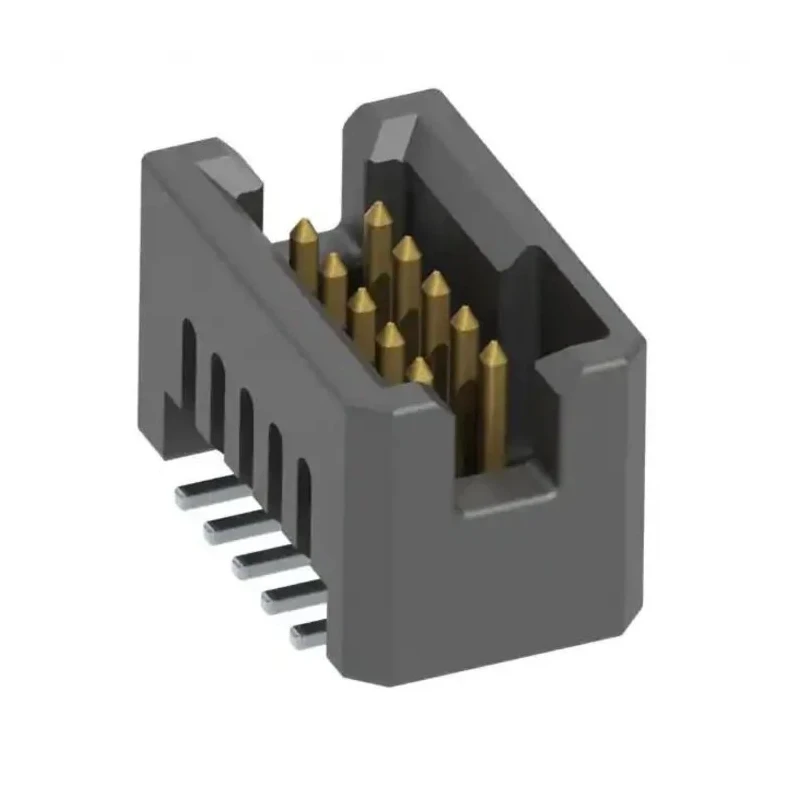

Samtec Vertical Through Hole PCB Header 10 Contacts 1.27 mm Pitch 2 Row Shrouded TFM-105-02-L-D-A-P-TR

Samtec's TFM-105-02-L-D-A-P-TR model is a vertical through hole PCB header designed for electronic component interconnections requiring high reliability and mechanical strength. It comprises 10 male contacts arranged in 2 rows with a precise 1.27 mm pitch, enabling compact and efficient circuit board layouts.

The housing is made of advanced liquid crystal polymer, providing excellent thermal stability and mechanical durability. The contacts are made from phosphor bronze and feature selective gold plating of 0.000254 mm thickness in the contact area, ensuring low contact resistance and corrosion resistance. The tail area is matte tin plated for solderability.

Rated to carry currents up to 3.2 A at a voltage of 250 V, this product is suitable for medium power applications on printed circuit boards. Its operating temperature range from -55°C to 125°C makes it suitable for challenging environmental conditions.

The shrouded design enhances safety and prevents accidental contact with live terminals. The connector is intended for board-to-board connections and mounts through-hole on the PCB, making it easy to solder and secure. It also includes alignment pins and plastic pick & place pads, facilitating automated assembly processes.

This PCB header is widely used in electronic manufacturing, telecommunications, industrial equipment, and instrumentation requiring reliable and consistent board-to-board connectivity. Tape and reel packaging supports high-volume automated PCB assembly lines.

The header features a 1.27 mm pitch between contacts. It has a dual-row configuration with 10 total contacts. Constructed with a liquid crystal polymer housing for durability. Phosphor bronze contact material with gold plating ensures reliable conductivity.

Supports a current rating of 3.2 A and a voltage rating of 250 V. Designed for vertical orientation and shrouded connector type. Contact termination is by solder, providing strong mechanical and electrical connections. Operating temperature ranges from -55°C to 125°C.

Mount type is through hole, suitable for PCB assembly. Connector system is board-to-board, suitable for interconnection on printed circuit boards. Browse the electronic components category at EnvMart for a wide selection of PCB Headers and connectors from trusted brands.
