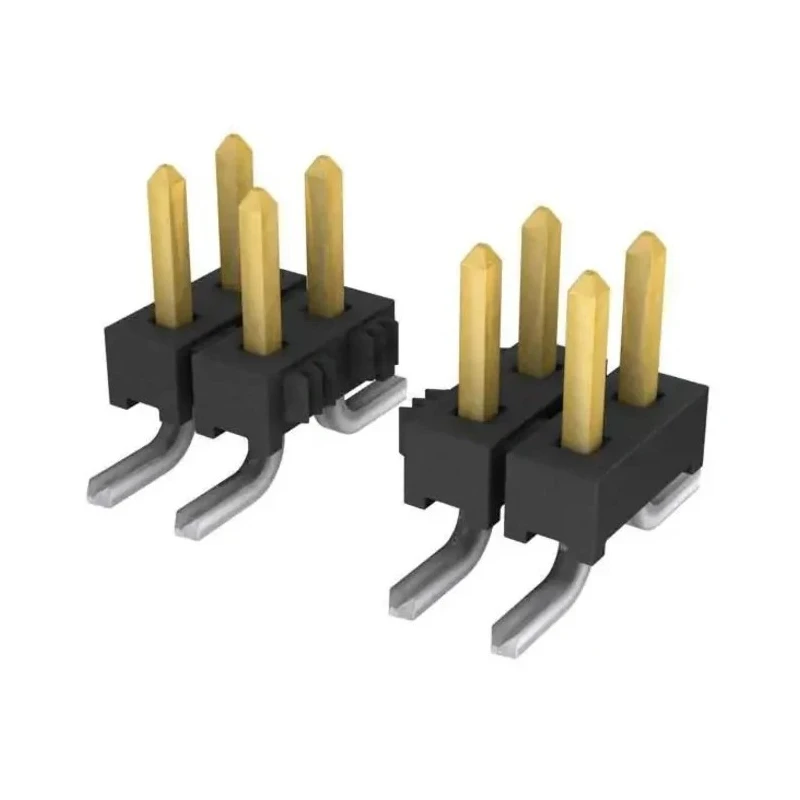

Samtec TMM Series Vertical Surface Pin Header 10 Contact, 2 mm Pitch, 2 Row, Unshrouded TMM-105-01-F-D-SM-A-009-P-TR

Samtec TMM-105-01-F-D-SM-A-009-P-TR is a high-quality vertical surface-mounted pin header designed for electronic and industrial PCB applications. Featuring 10 male contacts arranged in two rows with a 2 mm pitch, this connector ensures reliable board-to-board connections with optimized electrical performance.

The housing is constructed from liquid crystal polymer, which provides excellent mechanical strength and resistance to high temperatures, making this pin header suitable for demanding environments. Each contact is made from phosphor bronze and plated with gold to guarantee low contact resistance and long-lasting durability.

This unshrouded header supports a continuous current rating of 3.2 amperes and a voltage rating of 281 volts, operating effectively in temperatures ranging from -55°C to 125°C. The solder termination style, combined with a gold flash on the post and matte tin finish on the tail, facilitates robust solder joints and reliable electrical contact.

Additional design features include a plastic pick and place pad that aids in precise component placement during assembly, as well as tape and reel packaging ideal for automated manufacturing lines.

Ideal for use in electronics manufacturing, testing, power connectors, and a variety of industrial, laboratory, and commercial electronic systems, the Samtec TMM series ensures consistency, ease of integration, and durability.

Designed for 2-row vertical surface mounting applications. 10 male contacts spaced at 2 mm pitch for precise board-to-board connection. Phosphor bronze contacts plated with gold for enhanced conductivity. Housing made from liquid crystal polymer ensuring durability and thermal resistance.

Operates reliably from -55°C to 125°C temperature range. Offers a continuous current rating of 3.2 amps at 281 volts. Unshrouded construction allowing easy mating and positioning. Features solder termination type with a gold flash post and matte tin tail.

Supplied in tape and reel packaging for automated assembly processes. Includes plastic pick and place pad for precise placement during manufacturing. Explore additional products in the PCB Headers category at EnvMart for comprehensive electronic component solutions.
