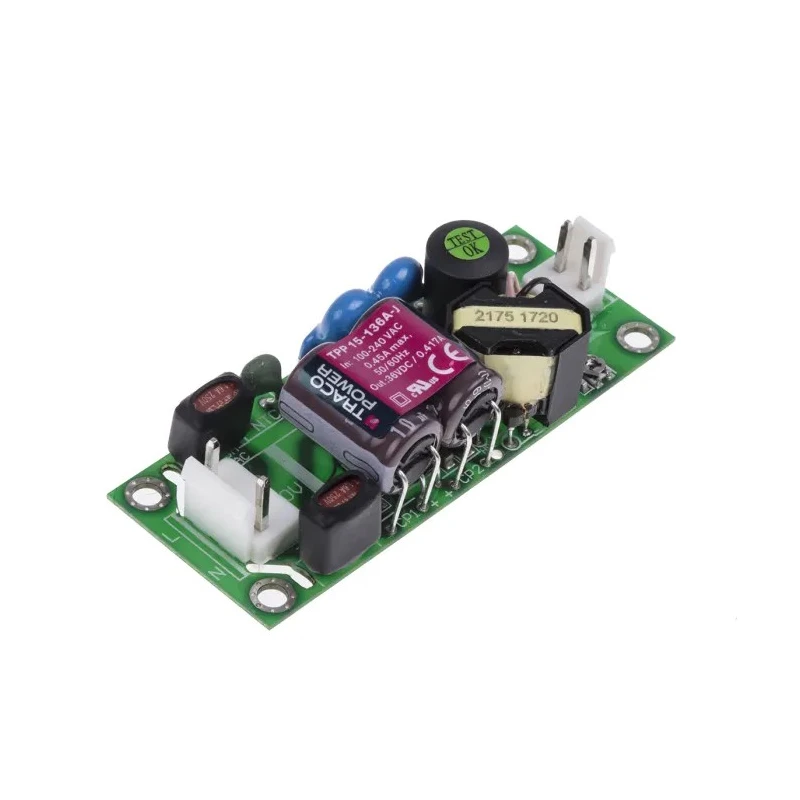

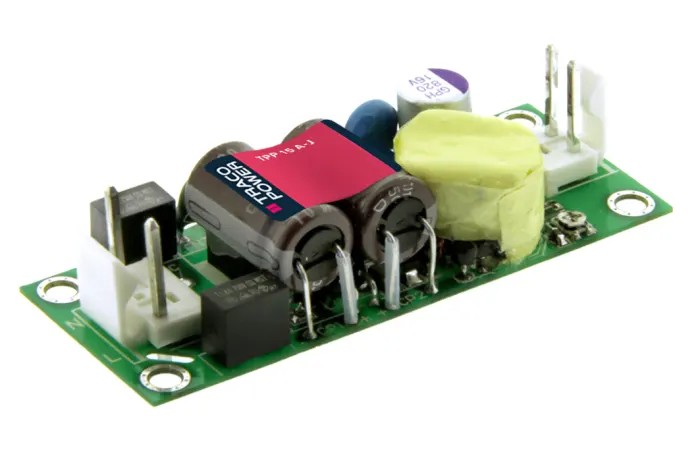

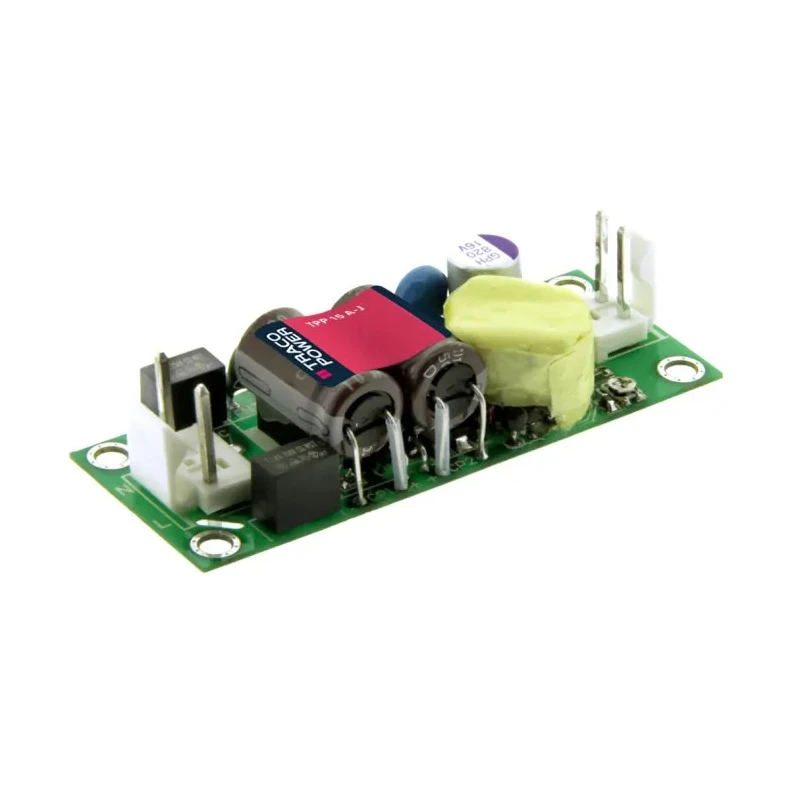

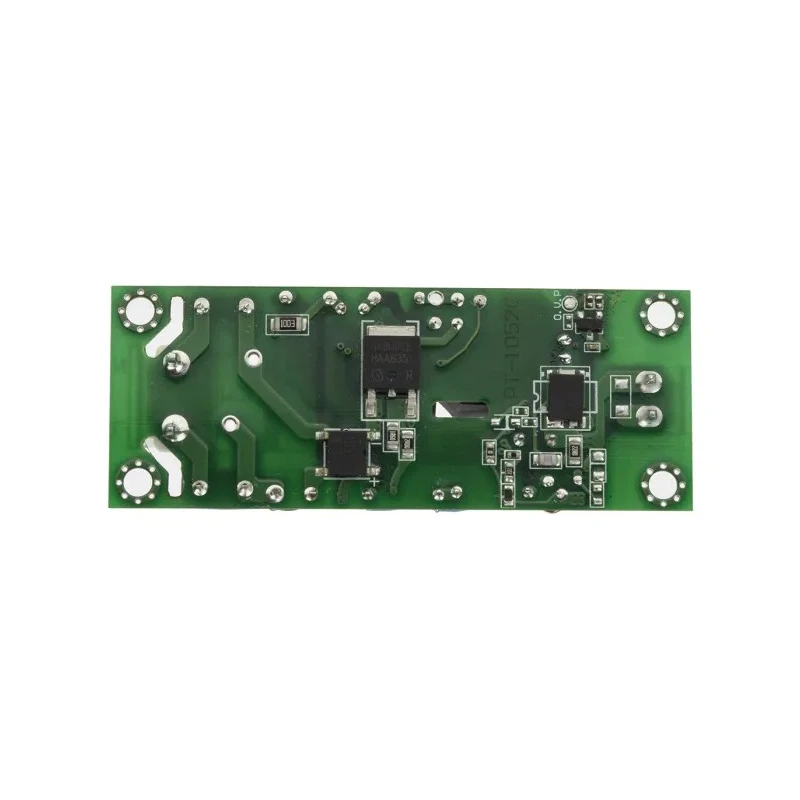

TRACOPOWER Switching Power Supply, Chassis Mount, 15W Power, 36V DC Output, 410mA Current, 85°C Max Operating TPP 15-136A-J

TRACOPOWER TPP 15-136A-J is a high-quality switching power supply designed for industrial and medical electronic applications. It delivers a maximum output voltage of 36V DC and power rating of 15W with a regulated output current of 410mA. The chassis mount design ensures convenient installation in various equipment and systems.

Operating within an input voltage range from 85V AC to 264V AC, the unit maintains efficient performance with up to 88% efficiency, optimizing energy consumption and reducing heat generation. It features a reinforced double I/O isolation system compliant with medical safety standard IEC/EN/ES 60601-1 3rd edition, offering 2 x MOPP for patient safety and low earth leakage current below 75 μA, making it suitable for BF (body floating) applications in medical devices.

The product is certified to multiple international safety standards including IEC 62368-1, UL 62368-1, ANSI/AAMI ES 60601-1, EN 62368-1, EN 60601-1, and IEC 60601-1, ensuring reliable operation across demanding industrial and medical environments. Its compact size of 66.2 mm length, 25.4 mm width, and 15.7 mm depth along with a lightweight of 19 grams makes it ideal for compact electronic assemblies.

Operating temperature range from -40°C to 85°C supports use in harsh environments and industrial applications. The energy efficiency level III rating aligns with modern energy-saving regulations, benefiting commercial and manufacturing sectors.

Key features include low leakage currents, robust chassis mounting, and compliance with stringent medical certifications. Typical applications include medical equipment, industrial control systems, and any devices requiring stable 36V DC power with medical safety isolation.

The power supply supports an input voltage range from 85V AC to a maximum of 264V AC. It offers high efficiency up to 88% ensuring energy-saving operation. Designed with reinforced double I/O isolation suitable for medical safety standards IEC/EN/ES 60601-1 3rd edition.

Operating temperature range is from -40°C to 85°C ensuring broad environmental applicability. Compact and lightweight with dimensions of 66.2mm length, 25.4mm width, and 15.7mm depth weighing only 19 grams. Certified to standards including IEC 62368-1, UL 62368-1, ANSI/AAMI ES 60601-1, EN 62368-1, EN 60601-1, and IEC 60601-1.

Energy efficiency level III compliant for environmentally responsible use. Low earth leakage current below 75 μA suitable for BF (body floating) medical applications. Explore more power supplies and switching power supply products on EnvMart for your electronic and industrial needs.
