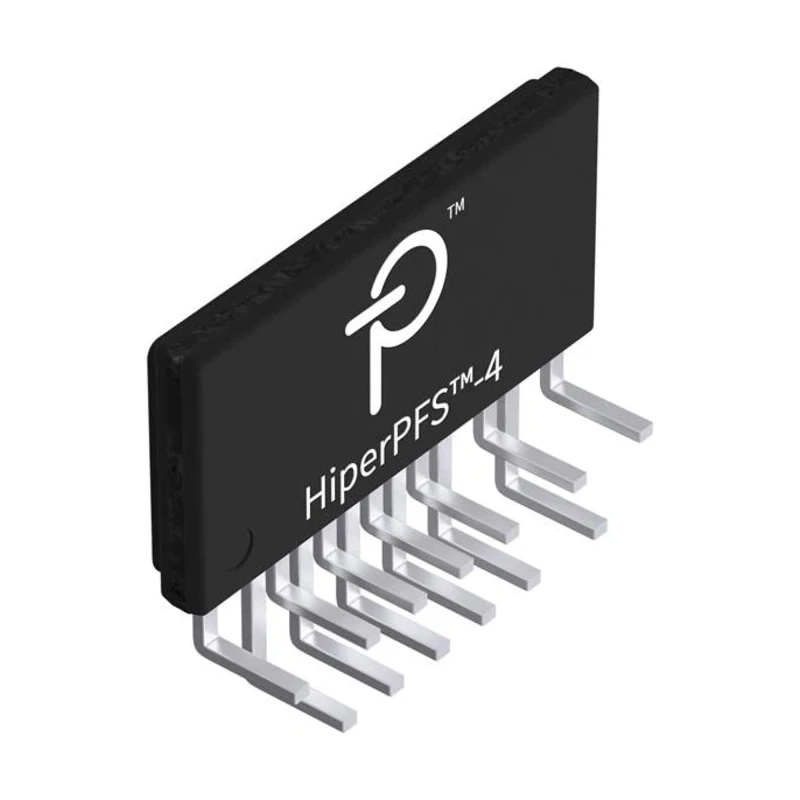

Power Integrations Power Factor Controller eSIP 12V Surface Mount 60 kHz Switching Frequency 16-Pin PFS7724L

Power Integrations PFS7724L is a high-efficiency Power Factor Controller designed for power management in electronic devices. It is supplied in a low-profile eSIP surface mount 16-pin package optimized for switching at 60 kHz frequency.

The PFS7724L integrates a 600 V MOSFET transistor and diode within the package, eliminating the need for external current sensing resistors and their associated power losses. Its innovative control adjusts switching frequency dynamically based on output load, input voltage, and input line cycle, ensuring high power factor and efficiency across the entire load range.

This device features a programmable Power Good signal for effective system monitoring and digital line peak detection to maintain robust performance even under distorted input voltage scenarios such as UPS or generator supplies. The digital power factor enhancer compensates for EMI filter and bridge distortions.

Protection functions include undervoltage lockout (UVLO), undervoltage (UV), overvoltage (OV), over-temperature protection (OTP), brown-in/out detection, cycle-by-cycle current limiting, and power limiting to protect against overload conditions. It can withstand steady-state line voltages up to 305 VAC and can survive abnormal inputs up to 410 VAC.

The controller’s spread-spectrum switching across a bandwidth greater than 60 kHz simplifies EMI filtering requirements, reducing conducted and radiated emissions. It operates with a minimum supply voltage of 5 V and maximum supply voltage of 12 V. This makes it suitable for a wide range of power supply applications in industrial, commercial, and consumer electronics domains.

Its compact dimensions, with a length of 16 mm and a height of 1.96 mm, allow easy integration into tight PCB footprints and high-density layouts.

Typical applications include power supplies, AC/DC adapters, industrial motor drives, and other systems requiring high power factor and low harmonic distortion. The PFS7724L supports demanding environments with an operating temperature range of -40°C to 150°C ensuring reliable operation even in harsh conditions.

The controller features integrated 600 V MOSFET and diode in a low profile power package. It eliminates external current sense resistors for reduced power loss. Operating temperature range is -40°C to 150°C for robust industrial performance.

Programmable Power Good signal and digital line peak detection enhance reliability. Includes protection features such as UVLO, OV, OTP, brown-in/out, and cycle-by-cycle current limit. Withstands steady-state voltage up to 305 VAC and abnormal inputs up to 410 VAC.

Spread-spectrum switching simplifies EMI filtering reducing noise emissions. Minimum supply voltage is 5 V and maximum supply voltage is 12 V to support various power supply designs. Package length is 16 mm with height 1.96 mm, suitable for compact PCB layouts.
