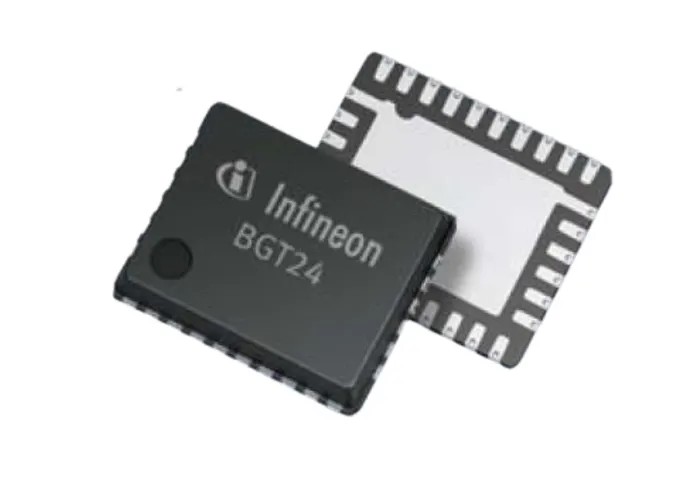

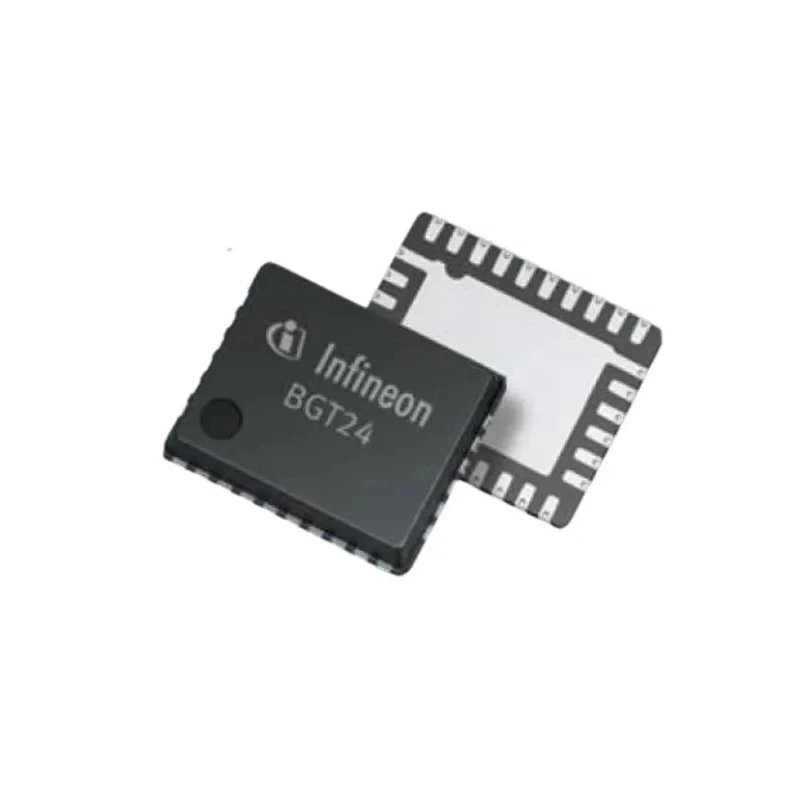

Infineon RF Transceiver IC, Receiver, 32-Pin VQFN Package, SPI Interface, 24GHz Operating Frequency BGT24MTR11E6327XUMA1

Infineon BGT24MTR11E6327XUMA1 RF Transceiver IC is a high-performance receiver designed for communication and wireless module applications, operating in the 24GHz frequency band. This device is built on 0.18μm silicon germanium (SiGe:C) MMIC technology, providing excellent signal quality and low phase noise performance essential for sophisticated RF systems.

The IC incorporates a fundamental 24GHz voltage controlled oscillator (VCO) and switchable frequency prescalers with output frequencies at 1.5 GHz and 23 kHz, enhancing flexibility for various signal processing requirements. The main RF output can deliver up to 8dBm of signal power, suitable to feed antennas directly, while an auxiliary local oscillator (LO) output provides signals for external receivers.

Features include an integrated LO buffer amplifier to ease LO drive requirements, a low noise amplifier (LNA) with a minimized noise figure, and a RC polyphase filter (PPF) to generate quadrature phases necessary for homodyne quadrature downconversion mixers. The inclusion of output power sensors and an on-chip temperature sensor facilitate real-time monitoring and diagnostics, improving system reliability.

Designed as a surface-mount device, the compact 32-pin VQFN package measures 5.5mm in length, 4.5mm in width, and 0.9mm in height, making it suitable for space-constrained industrial, laboratory, and commercial electronics environments. Operating within a temperature range of -40°C to 105°C ensures resilience for high-demand applications in industrial and automotive proximity (though this device is not certified for automotive standards).

This transceiver module benefits applications in wireless communication systems, radar, and sensor technologies, delivering robust performance at 24GHz frequency bands with precision and reliability. Control via SPI interface integrates easily into microcontroller and FPGA-based designs.

Operates over two frequency bands: 24.00 GHz and 24.25 GHz. Equipped with a silicon germanium MMIC technology for signal generation and reception. Includes a fully integrated low phase noise voltage controlled oscillator (VCO).

Features on-chip power and temperature sensors for device monitoring. Interface control via SPI for seamless integration in complex systems. Surface-mount device in a compact 5.5mm x 4.5mm x 0.9mm VQFN package. Wide operating temperature range from -40°C to 105°C suitable for robust industrial usage.

Supplies drive voltage from 3.14V minimum up to 3.47V maximum for efficient power management. Explore more high-quality RF Transceiver ICs and semiconductor components at EnvMart for industrial, telecommunications, and advanced electronics projects.
