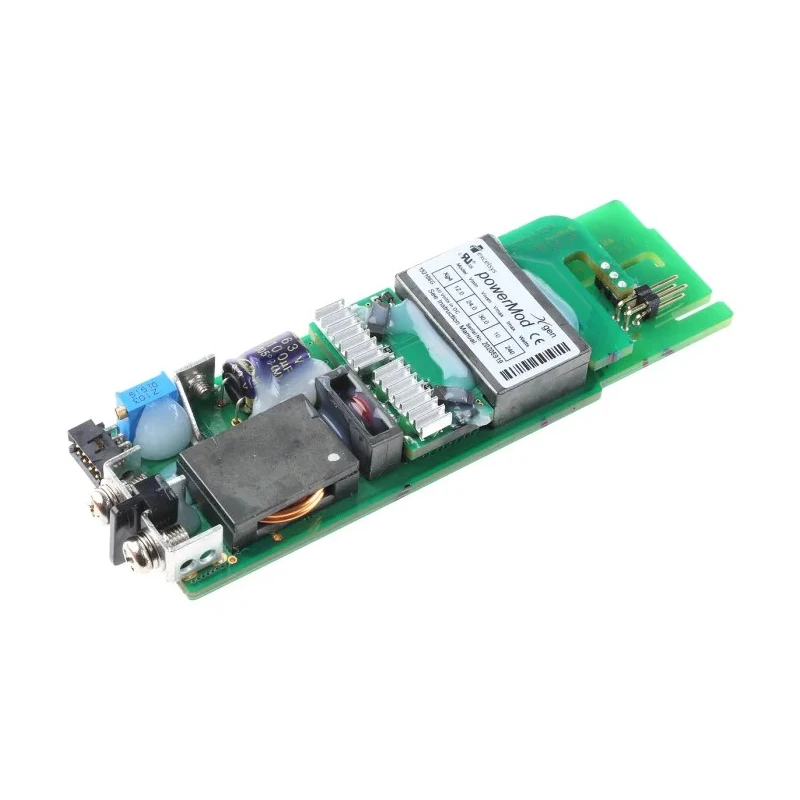

Excelsys / Advanced Energy XG5 Switching Power Supply 58V DC 288W 380V DC Chassis Mount XG5

Excelsys / Advanced Energy XG5 Switching Power Supply is a high-performance power supply designed for industrial and electronic applications requiring reliable DC output with user configurability. This model features a 58V DC output voltage at a maximum power rating of 288W, housed within a compact chassis mount package suitable for system integrations requiring space efficiency.

Operating efficiently at up to 90%, the XG5 series supports universal input voltage ranging from 85V DC minimum up to 380V DC maximum. It operates reliably under a broad temperature range from -20°C to 70°C, with de-rating above 50°C at 2.5% per degree Celsius. The supply is equipped with thermal protection as well as over voltage and over current protection to ensure safe operation in demanding environments.

The mechanical form factor includes dimensions of 269.75 mm length, 127 mm width, and 40.4 mm depth, and a gross weight of approximately 100 grams, facilitating easy installation in chassis mounts. It further incorporates advanced signal features such as logic inhibit/enable and power fail signals for enhanced control integration.

Compliance with international standards RoHS, cURus, and CE assures users of quality and regulatory adherence. This switching power supply is well-suited for industrial, manufacturing, laboratory, and electronic device power solutions demanding dependable DC power with configurable output options.

Each modular PSU chassis is supplied with blanking plates and allows output modules to be inserted as needed up to the total power rating. The power factor correction meets EN61000-3-2 and EMC standards conform to EN55022-B.

User configurable power supply ideal for rapid system integration. Provides maximum output voltage of 58V DC with a single output channel. High efficiency up to 90% ensuring power saving. Operating temperature range from -20°C to 70°C with thermal protection.

Built-in protections including over voltage and over current safeguards. Input voltage range from 85V DC minimum to 380V DC maximum. Complies with RoHS, cURus and CE standards for safety and environmental requirements. Compact chassis mount design measuring 269.75 mm length, 127 mm width, and 40.4 mm depth.

Lightweight design with gross weight approximately 100 grams. Includes logic inhibit/enable and power fail signal functionalities. Explore more in the Switching Power Supplies category at EnvMart for solutions from leading brands like Excelsys / Advanced Energy.
