Excelsys / Advanced Energy CS10M-24N-0-A Switching Power Supply 24V dc, 1 kW, DIN Rail Mount CS10M-24N-0-A

Free Delivery in India | Lowest Global Shipping Charges

Excelsys / Advanced Energy CS10M-24N-0-A Switching Power Supply 24V dc, 1 kW, DIN Rail Mount CS10M-24N-0-A

Name: Excelsys / Advanced Energy CS10M-24N-0-A Switching Power Supply 24V dc, 1 kW, DIN Rail Mount CS10M-24N-0-A
Brand: Excelsys / Advanced Energy
SKU: 422881
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Excelsys / Advanced Energy Condition New

Specifications

Country of Origin	China
Brand	Excelsys / Advanced Energy
Power	1kW
Efficiency	94%
Length	262mm
Model	CS10M-24N-0-A
Depth	39.1mm
Gross Weight	1.3kg
Width	127mm
Mount Type	DIN Rail
Series	CS1000
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	CE, EN, IEC, RoHS
Maximum Output Voltage	24V dc
SMPS Output Current	41.6A
Minimum Input Voltage	85V ac

Key Features

Provides single output with 24V DC maximum voltage.
Offers convection-cooled 1000 W power without acoustic noise.
Supports DIN rail mounting for compact and secure installation.
Exhibits high efficiency of 94% to conserve energy.
Operates between -40°C and 85°C temperature range.
Rated for maximum input voltage of 264V AC and minimum of 85V AC.
Compact dimensions with length 262 mm, width 127 mm, and depth 39.1 mm.
Lightweight design at 1.3 kg supporting vibration sensitive applications.

Product Description

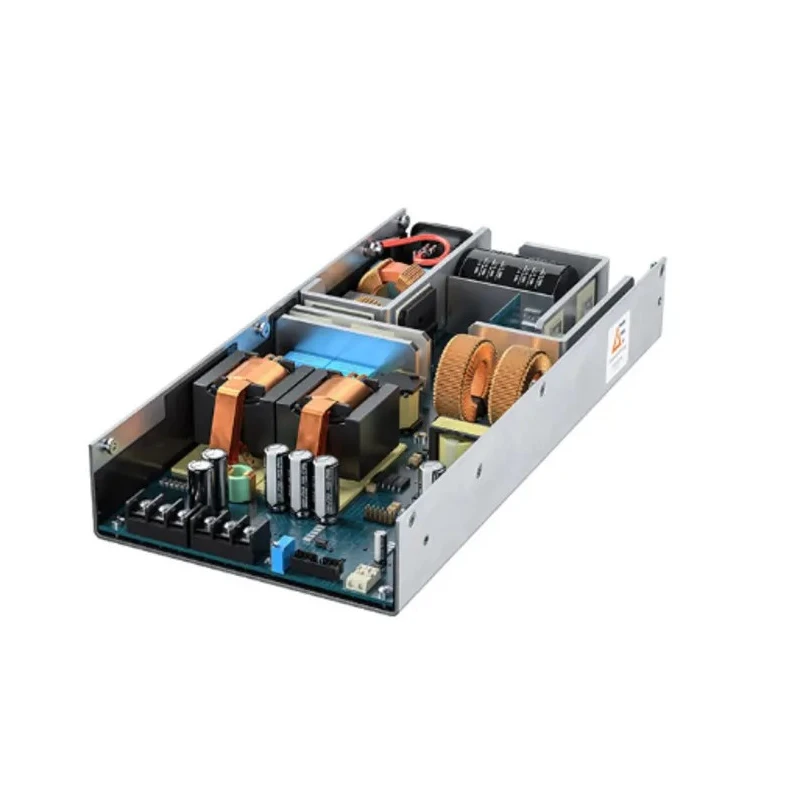

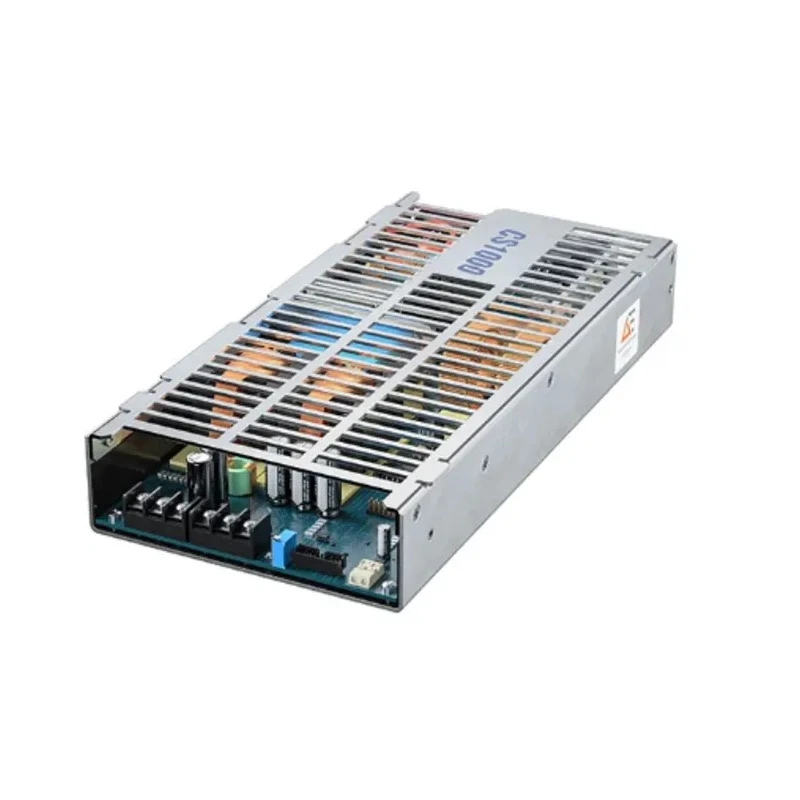

Excelsys / Advanced Energy CS10M-24N-0-A switching power supply provides a reliable 24V DC output with a 1 kW convection-cooled power in a compact DIN rail mount form factor. This open-frame U-channel design eliminates acoustic noise and vibrations making it suited for noise and vibration sensitive industrial, scientific, and medical applications.

The power supply features a single output delivering 41.6A current, with an efficiency of 94%, optimized for energy saving in harsh environments. It is engineered with a wide input voltage range from 85V up to 264V AC, supporting operations between -40°C and 85°C.

Compactly sized at 262 mm length, 127 mm width, and 39.1 mm depth, and weighing 1.3 kg, it easily integrates into existing DIN rail mounted control panels. 24V DC maximum output voltage. 1000 W power rating with convection cooling.

DIN rail mount for ease of installation. High efficiency of 94% for reduced power loss. Wide operating temperature from -40°C to 85°C. Input voltage range from 85V to 264V AC. Dimensions: 262x127x39.1 mm. Lightweight at 1.3 kg.

Meets CE, EN, IEC, and RoHS standards. Ideal for scientific, medical, and industrial applications sensitive to noise and vibration. This power supply series can be paralleled for increased power needs and includes optional low leakage features suitable for specialized environments.

Its no-base-plate, fanless design eliminates mechanical failures and maintenance often associated with electrical power systems. Designed and manufactured in China, this power supply is compliant with global safety and environmental standards.
