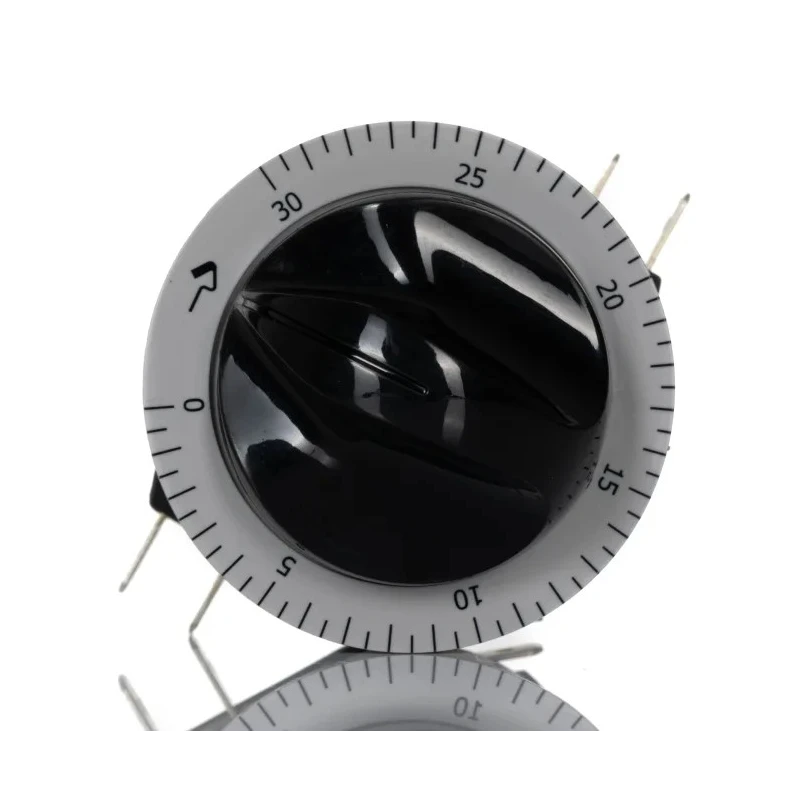

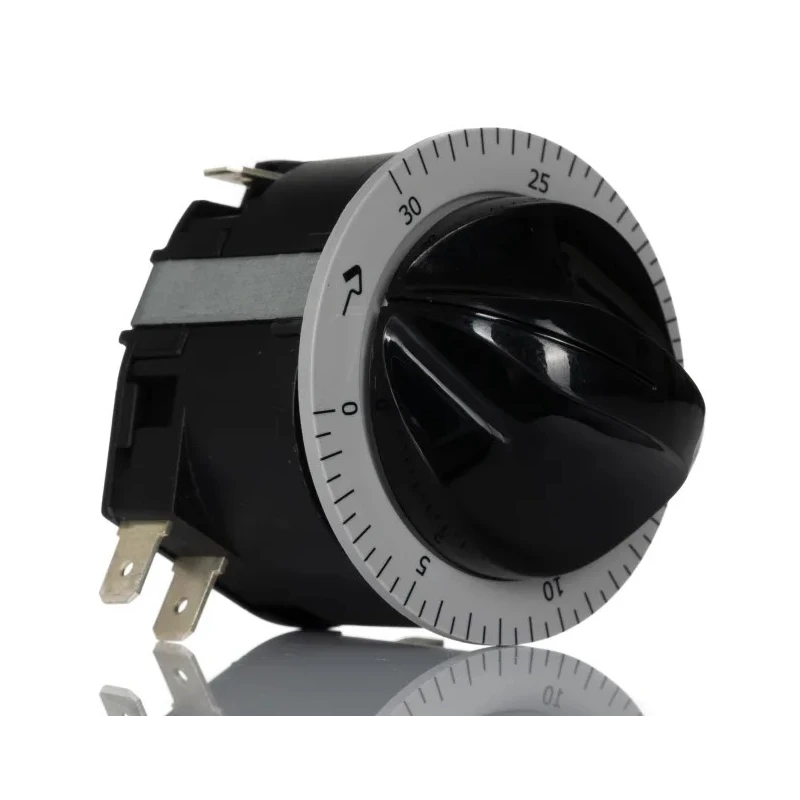

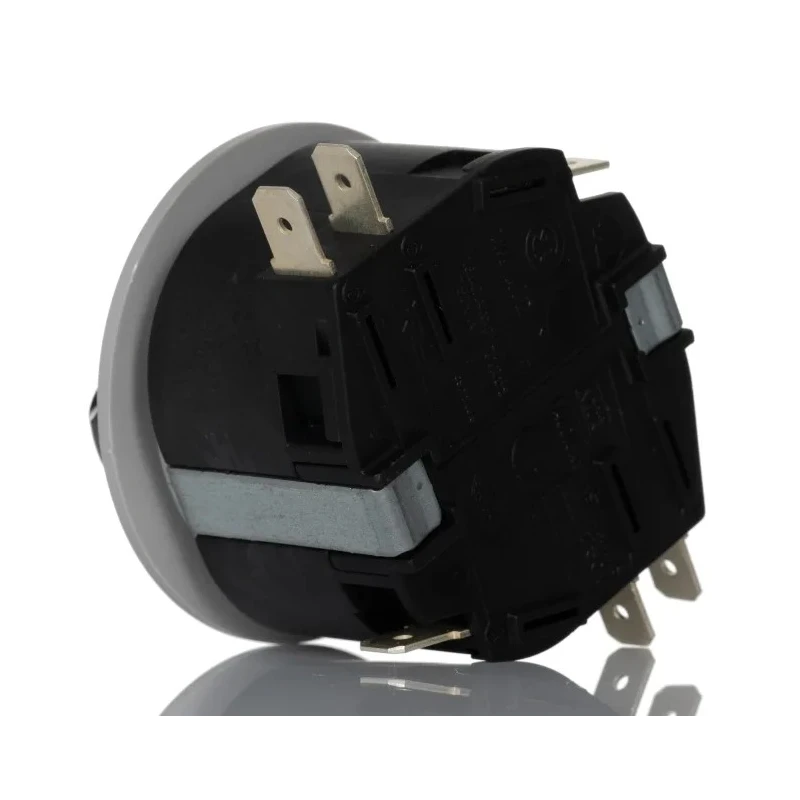

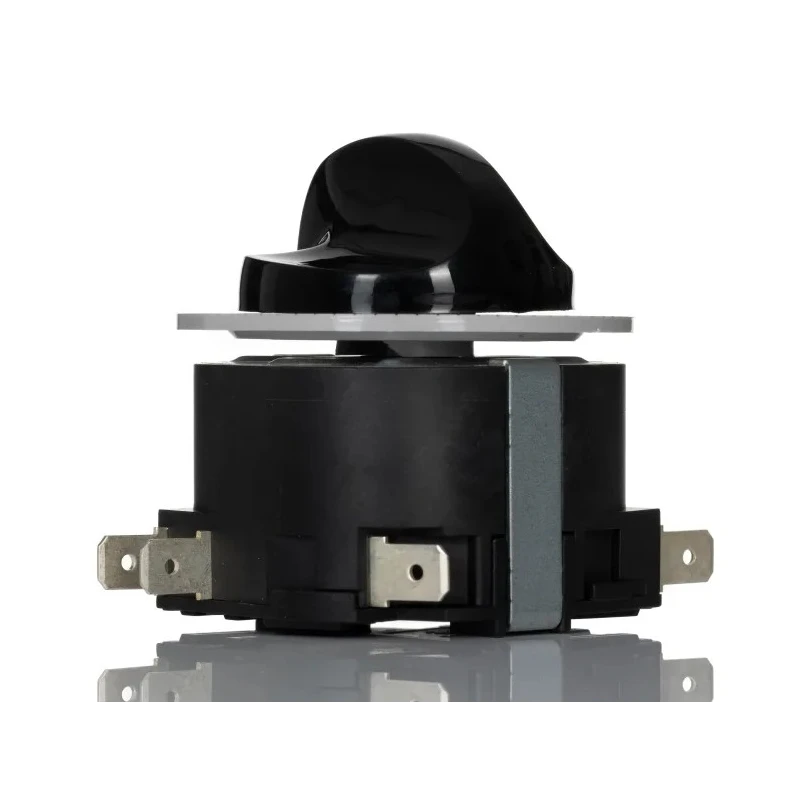

Coupatan 72039 Series Panel Timer Relay 250V AC, 0 to 30 min Time Range, DPDT Contact Configuration 16A Contact 536-2555
Specifications
| Country of Origin | France |
|---|---|
| Brand | Coupatan |
| Height | 30mm |
| Length | 45.5mm |
| Model | 536-2555 |
| Width | 47.5mm |
| Mount Type | Panel |
| Series | 72039 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | DPDT |
| Contact Rating | 16A @ 250Vac resistive load |
| Minimum Operating Temperature | -30°C |
| Time Range | 0 to 30 min |
| Terminal type | Male Connector |
| Standards/Approvals | RoHS |
| Contact Current | 16A |
| Supply AC Voltage | 250V ac |
Key Features
- The timer relay has a contact current rating of 16A at 250Vac resistive load.
- It mounts on panels with a minimum thickness of 3.5mm using provided screws.
- Terminals use male connectors sized 6.35 x 0.8 mm compatible with 0.25 inch receptacles.
- Operates reliably over a temperature range from -30°C to 125°C.
- The compact relay dimensions are 45.5mm length, 47.5mm width, and 30mm height.
- The device complies with RoHS standards and is designed for robust industrial applications.
- It features manual reset capability during the run-back period for greater control.
Product Description
Coupatan 536-2555 Panel Timer Relay is a mechanical timer relay designed for industrial and automation use, operating at 250V AC with a time range from 0 to 30 minutes. Its DPDT contact configuration and high contact current rating of 16A at 250V AC make it suitable for controlling various electrical circuits with precision.
This timer relay mounts on panels with a minimum thickness of 3.5mm and connects via male connectors sized 6.35 x 0.8 mm, compatible with 0.25 inch receptacles, ensuring secure and reliable electrical connections.
With operating temperature spanning from -30°C up to 125°C, it is built for durability in harsh industrial environments. The compact size (45.5mm length x 47.5mm width x 30mm height) allows for installation in tight panel spaces.
The 72039 series offers mechanical run-back timing and can be manually reset during the run-back period, enhancing user flexibility in timing control applications. The timer relay supports a DPDT contact configuration for double-pole double-throw switching.
Contact rating is rated at 16A resistive load at 250V AC ensuring robust handling of current demands. Terminals designed with male connector style provide compatibility with standard receptacles. Complies with RoHS regulations, emphasizing safety and environmental standards.
Compact panel mount design fits minimum panel thickness of 3.5mm. Manual reset feature adds operational convenience during timing cycles. Suitable for diverse industrial, manufacturing, and automation control applications.
The product is manufactured in France, ensuring European quality standards. This relay is ideal for industrial automation, electrical panels, HVAC controls, and other electrical timing applications requiring reliable mechanical timing and switching.
Explore more Timer Relay products and related accessories in the Electronics & Electricals category on EnvMart to meet your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The time range of this model is from 0 to 30 minutes.
It features a DPDT (Double-Pole Double-Throw) contact configuration.
The contact rating is 16A at 250V AC for resistive loads.
The dimensions are 45.5mm in length, 47.5mm in width, and 30mm in height.
It uses male connectors sized 6.35 x 0.8 mm, compatible with 0.25 inch receptacles.
The operating temperature range is from -30°C to 125°C.
It mounts on panels with a minimum thickness of 3.5mm using provided screws.
Yes, it features a manual reset capability during the run-back period for greater control.
It complies with RoHS standards, emphasizing safety and environmental considerations.
It is suitable for industrial automation, electrical panels, HVAC controls, and other electrical timing applications.
The supply voltage is 250V AC.
This model is manufactured in France, ensuring adherence to European quality standards.
