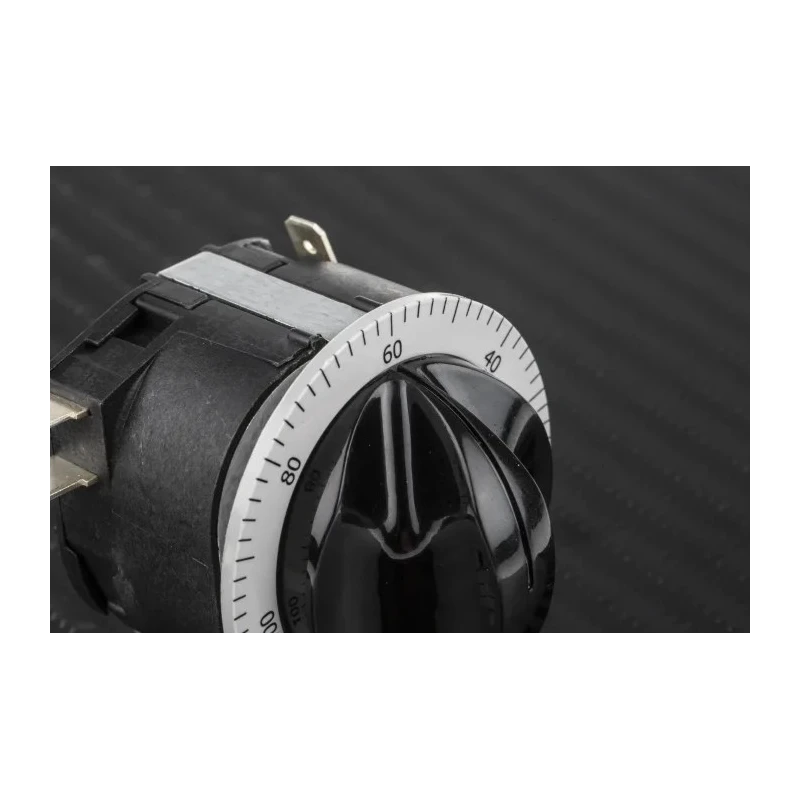

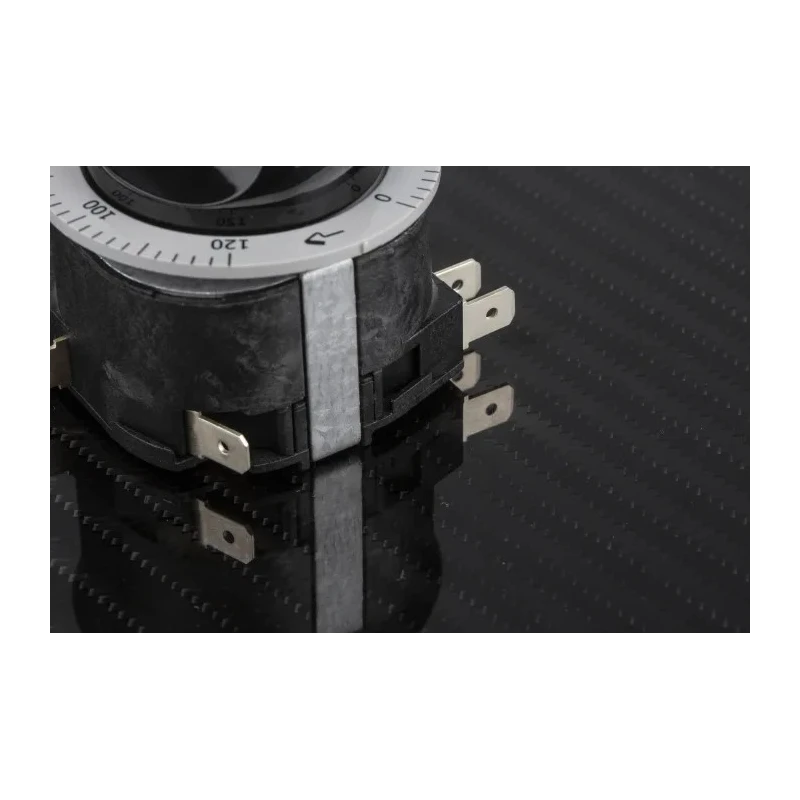

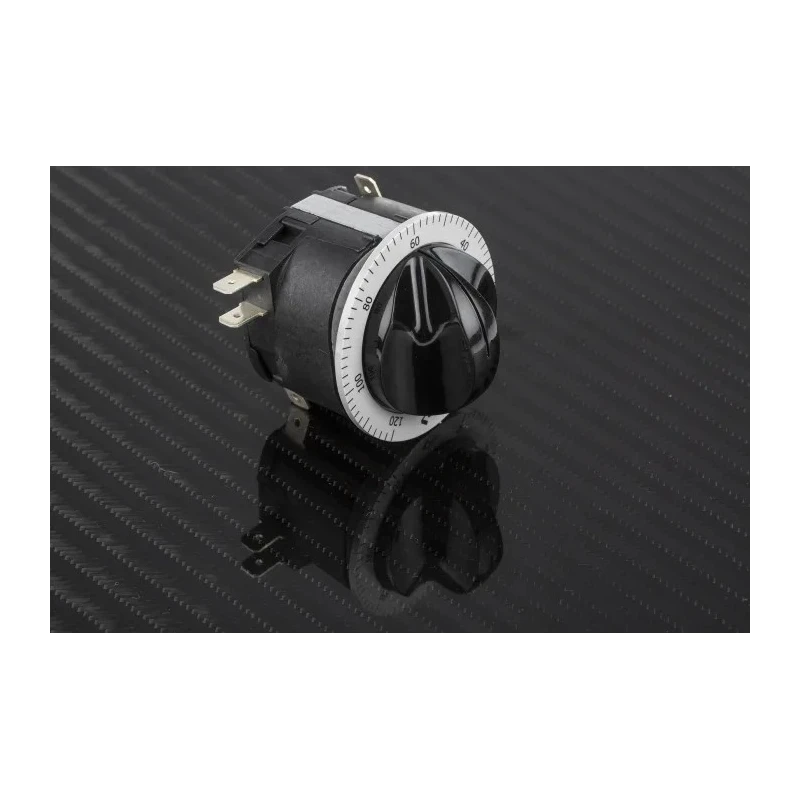

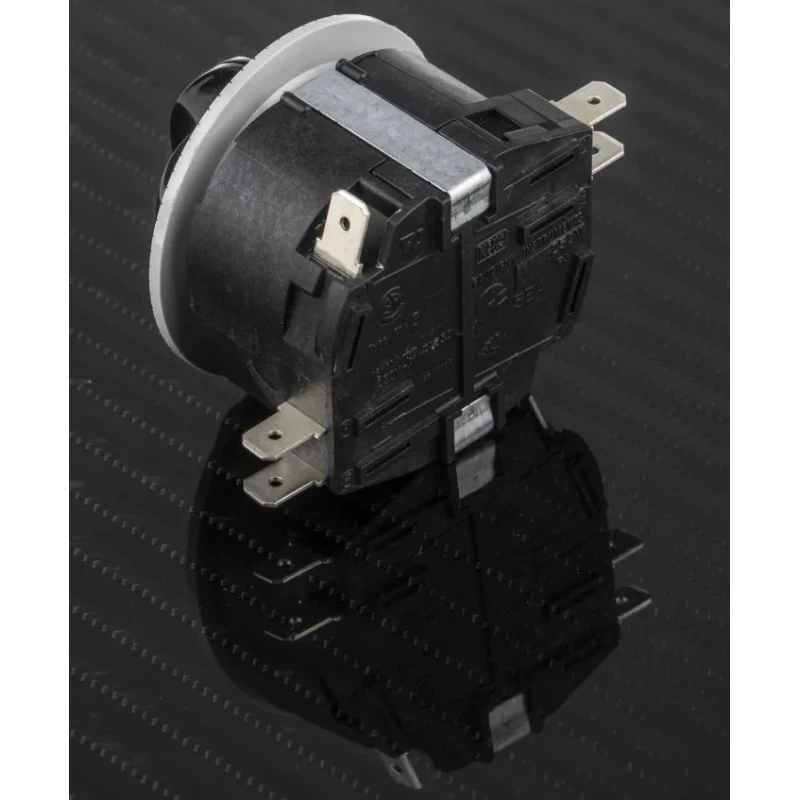

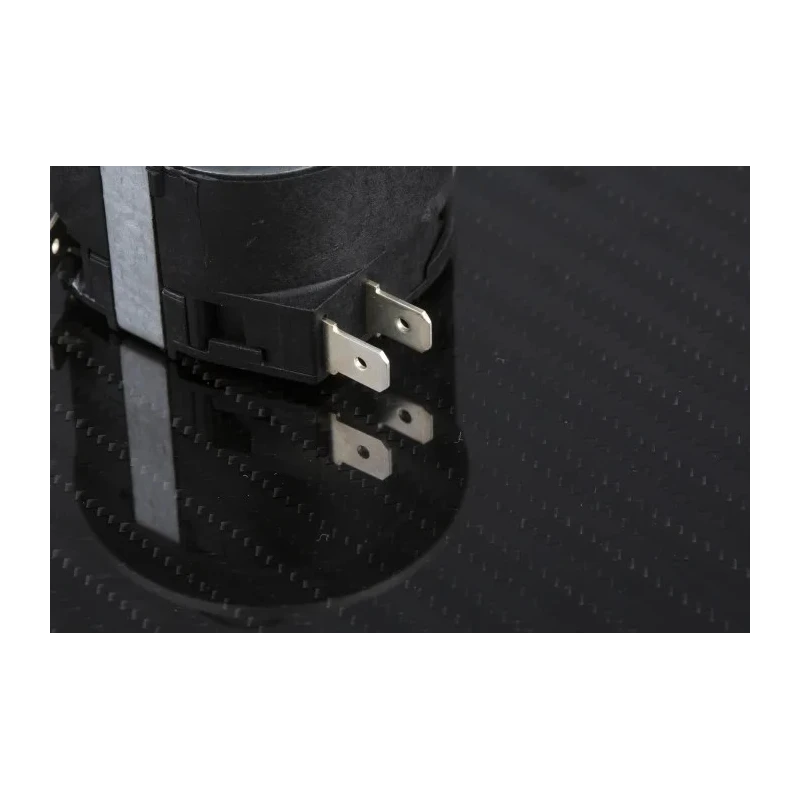

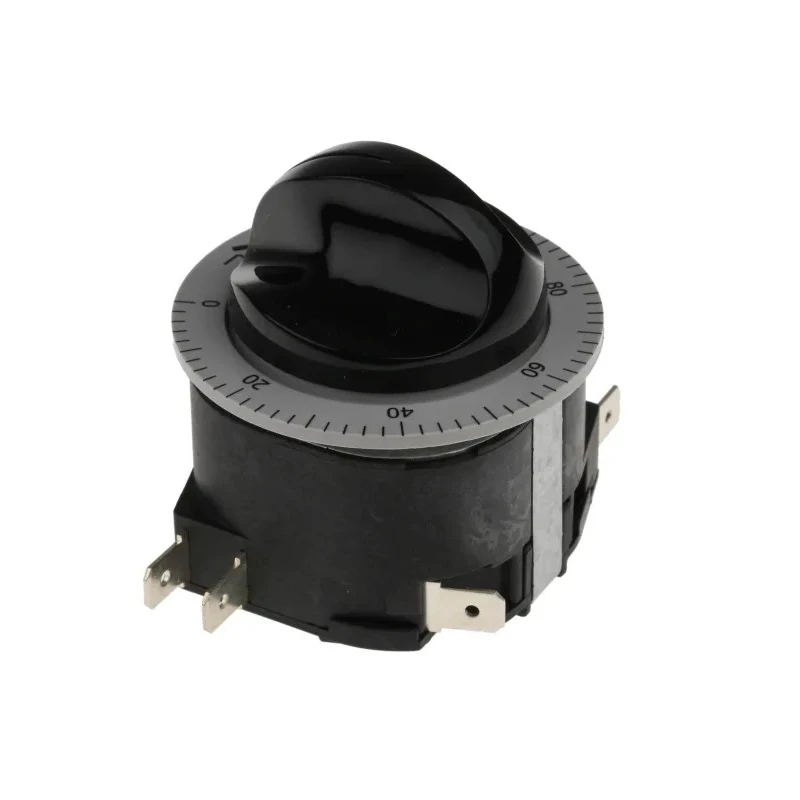

Coupatan Panel Timer Relay 250 V AC 16A Contact Current 0 to 120 min DPDT Configuration 536-2779

Coupatan 536-2779 Panel Timer Relay is a mechanically operated run-back timer designed for panel mounting applications in electrical systems requiring timing control with reliable switching functions. It accepts a 250 V AC supply voltage and provides a timer range adjustable from 0 to 120 minutes, suitable for various industrial automation timing needs.

This timer relay features a double pole double throw (DPDT) contact configuration rated at 16A for resistive loads at 250 V AC, offering versatile switching capabilities for controlling circuits reliably. The robust 6.35 x 0.8 mm terminals allow easy connections with standard 0.25-inch receptacles, ensuring secure electrical contacts during operation.

The compact form factor with exact dimensions of 47.5 mm width, 45.5 mm length, and 30 mm height fits standard control panels that have a minimum thickness of 3.5 mm, provided with mounting screws. Since the timer mechanism is mechanical, no external voltage supply is required to operate, reducing complexity and improving reliability.

This product is compliant with RoHS directives, making it an environmentally responsible choice for modern electrical installations. Operates with 250 V AC supply voltage panel mounting. DPDT contact configuration rated 16A resistive load at 250 V AC.

Mechanical run-back timer adjustable from 0 to 120 minutes. 6.35 x 0.8 mm connection terminals for 0.25 inch receptacles. Minimum panel thickness of 3.5 mm with mounting screws included. Does not require external voltage supply for timer operation.

Compact dimensions: 47.5 mm (W) x 45.5 mm (L) x 30 mm (H). RoHS compliant for environmental safety.

This timer relay is ideal for industrial, electrical panel, automation, manufacturing, and HVAC timing control applications. Its reliable mechanical timing and switch configuration provide robust performance in commercial and industrial environments.
